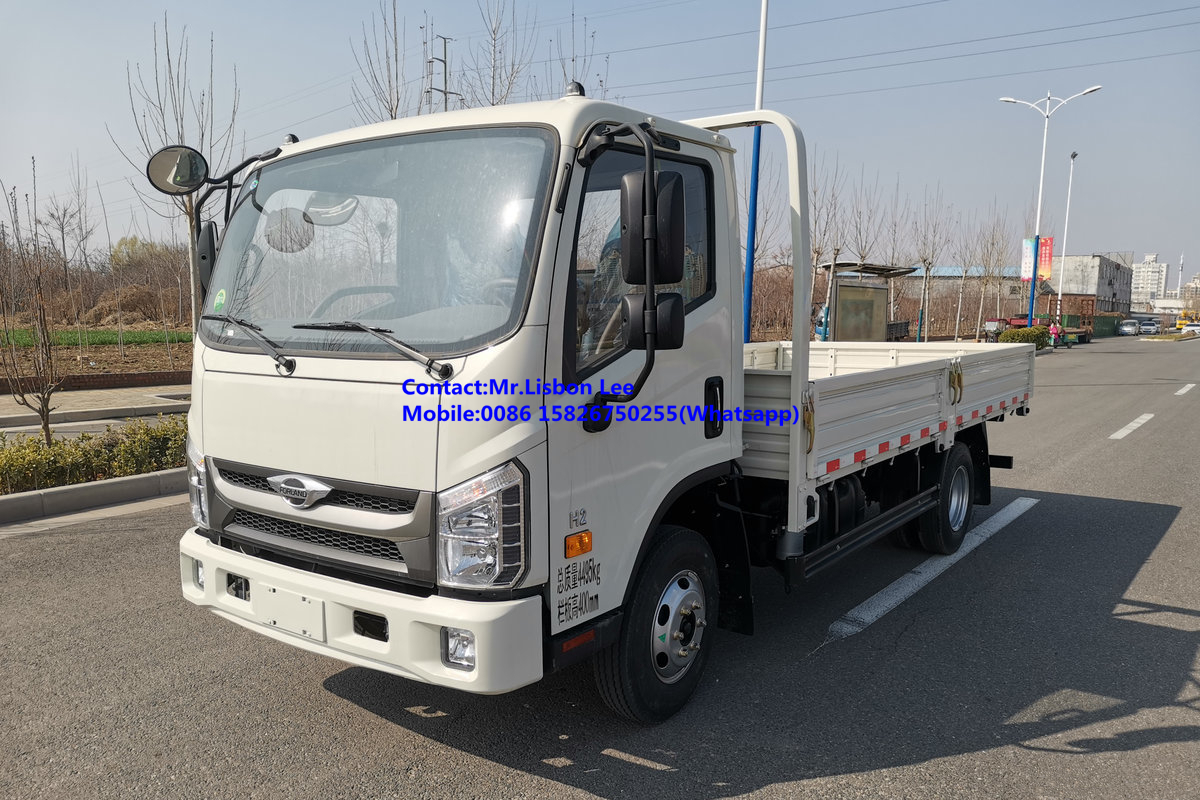

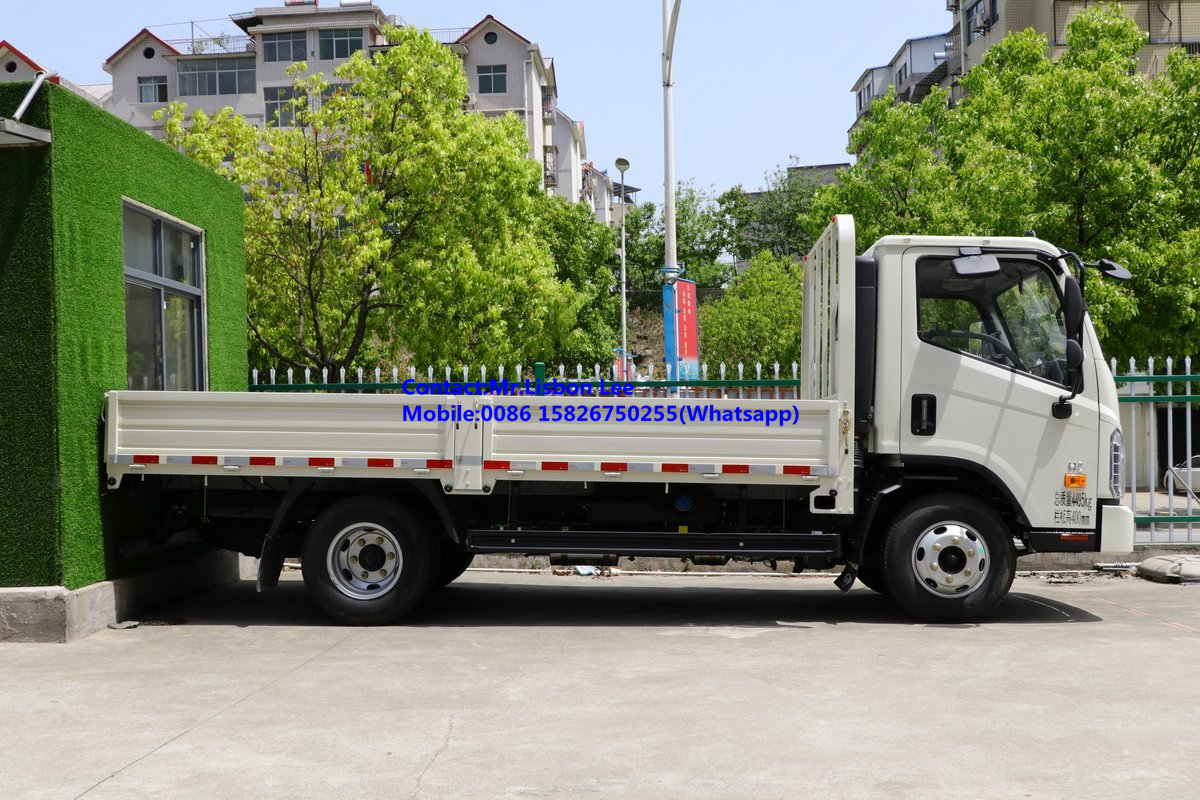

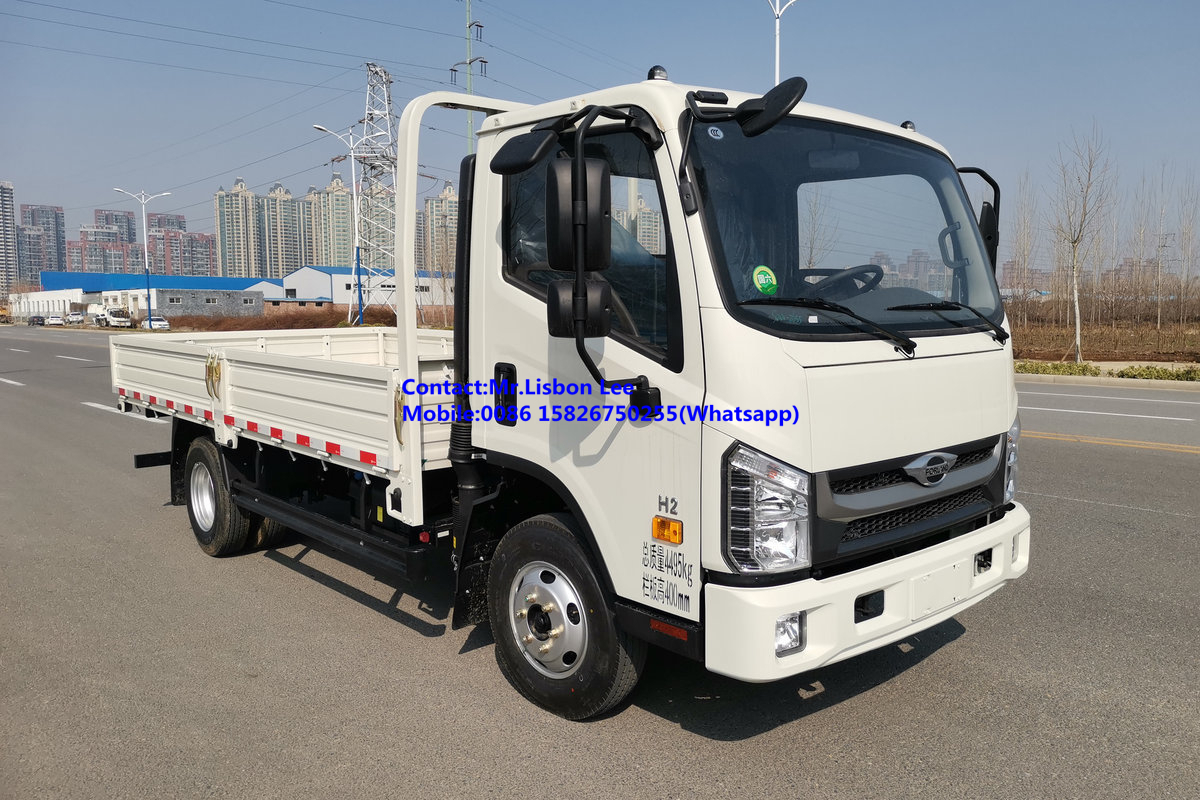

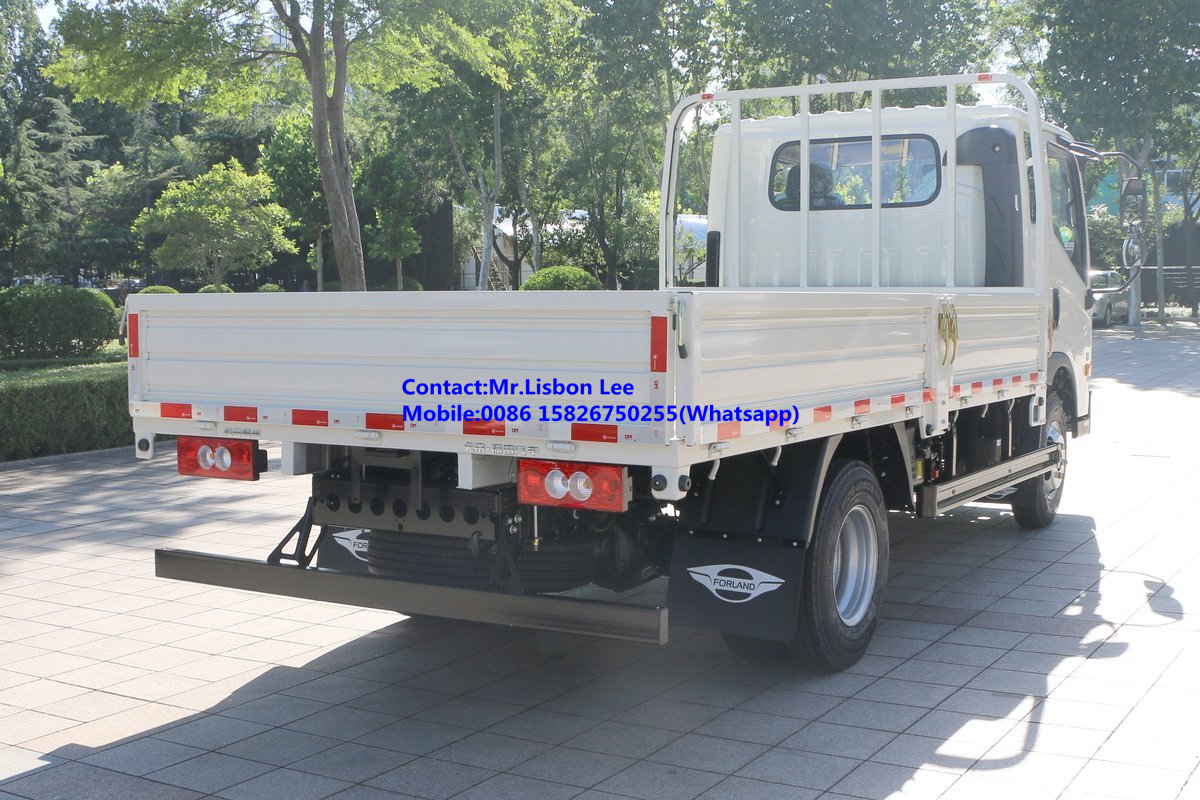

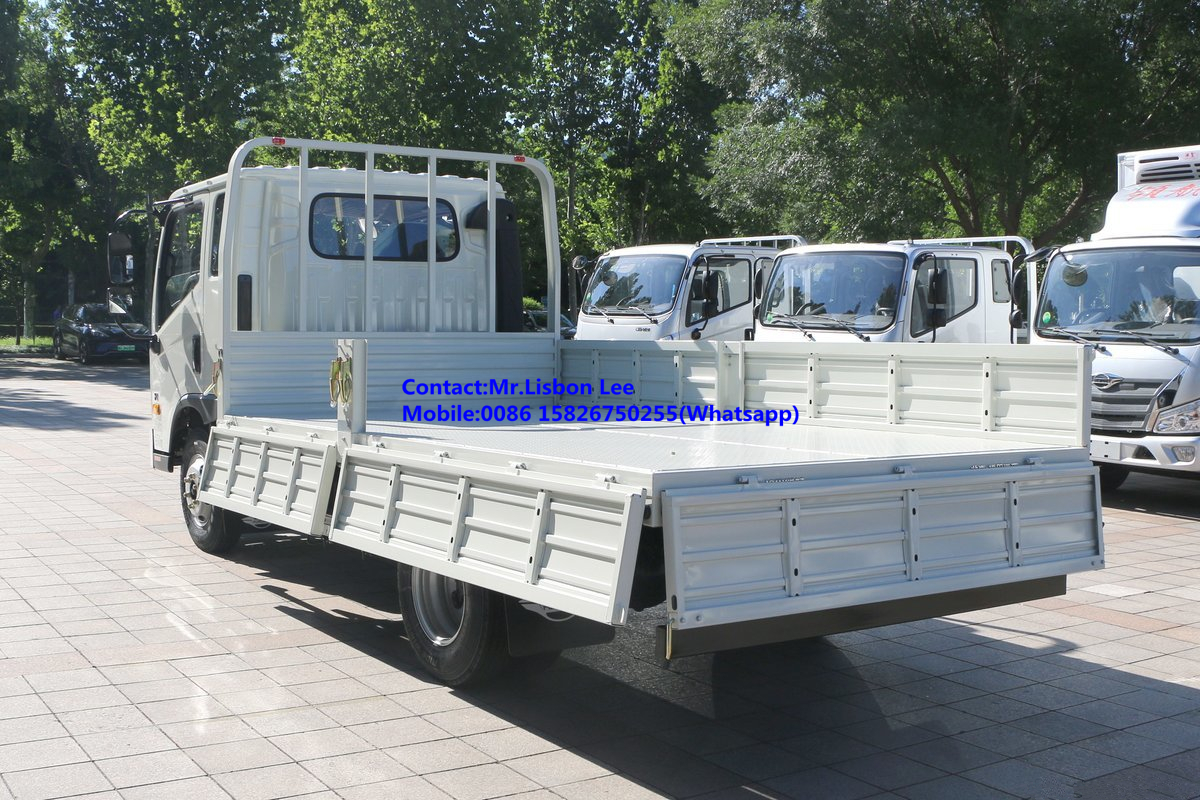

FORLAND H2 4x2 cargo truck

Vehicle model

BJ1043V9J

Cabin model

Single row,flat head,H1850 cabin

Emission Standard

Euro 2

Whole vehicle

main dimensions

Overall dimensions

（L×W×H（mm)

5995×2120×2405

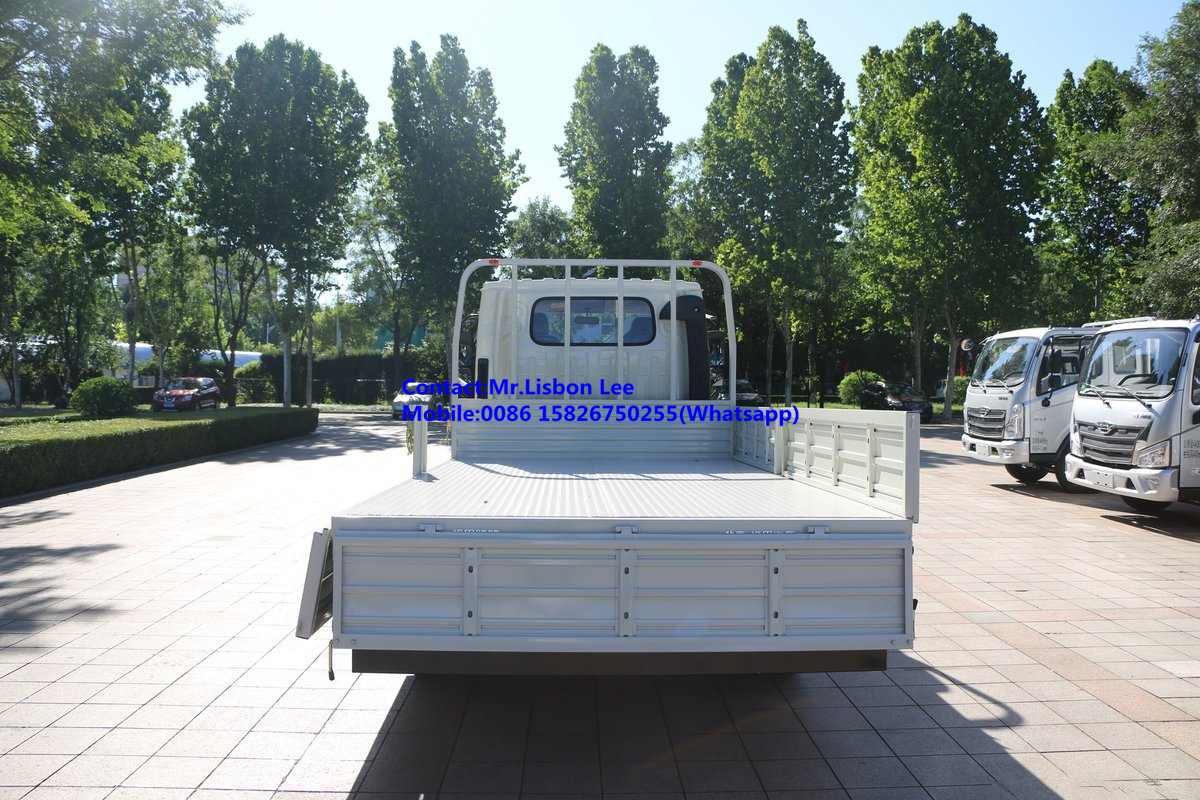

Inner dimensions of the cargo body（L×W×H）（mm）

4180×2000×400

Driving type

4×2

Wheel base（mm）

3360

Wheel track  (front/rear)

（mm）

1545/1590

Weight data

Curb weight（kg）

2550

Load capacity（kg）

3000-5000

Seating capacity

2

Whole vehicle main performance

Max. speed（no load）（km/h）

95

Max. gradeability(°)

25%

Engine

Model

4B2-115C50

Type

vertical/in-line/four stroke/four cylinder/water cooling/supercharger with intercooler/common rail/DOC+SCR

Displacement（L）

2.545

Rated Power

85kw/115HP

Gearbox

Model

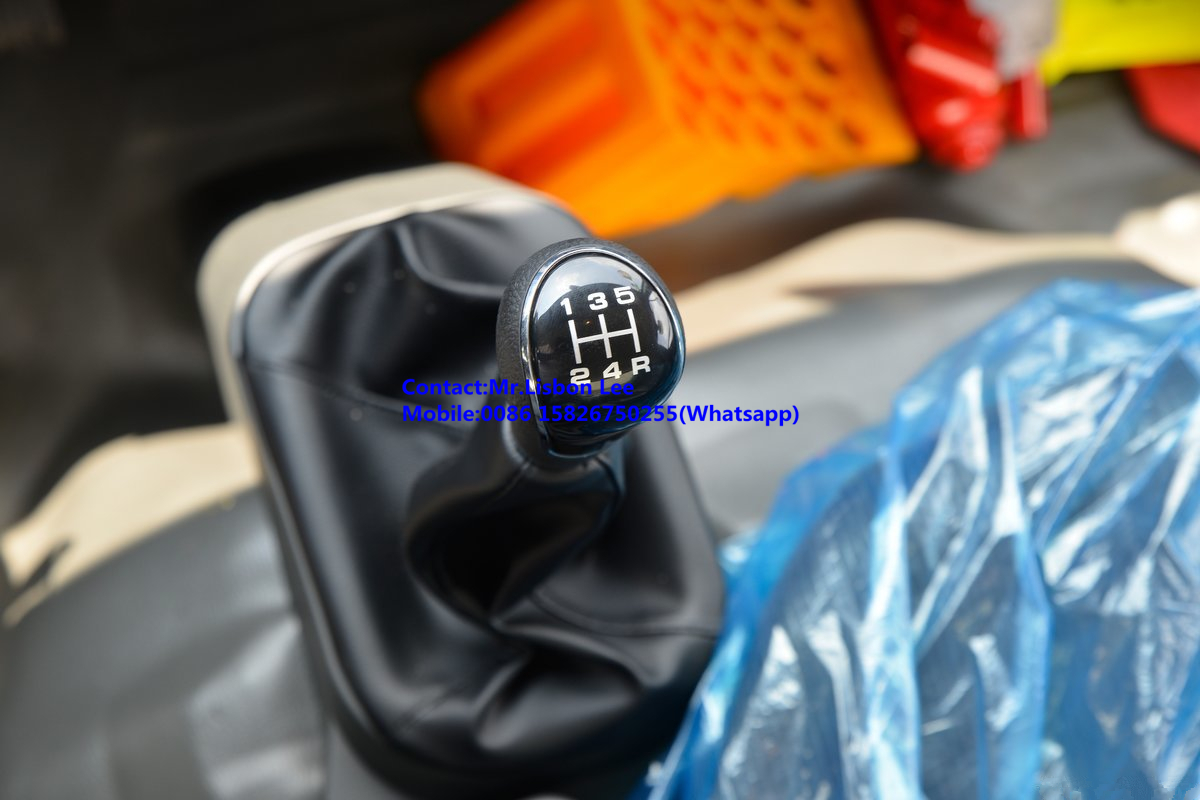

5TS32,manual,5 forward ＆1 reverse gears

Front axle

Load capacity

2T

Rear axle

Main reduction ratio

NPR(5T)/4.875

Steering gear

Left hand drive,power steering

Tire type/quantity

7.00R16/6+1

Brake system

Service brake

Pneumatic brake

Parking brake

Central drum type braking

Rate Voltage

24

Capacity of fuel tank（L)

80

Standard configurations

Electronically controlled flameout,

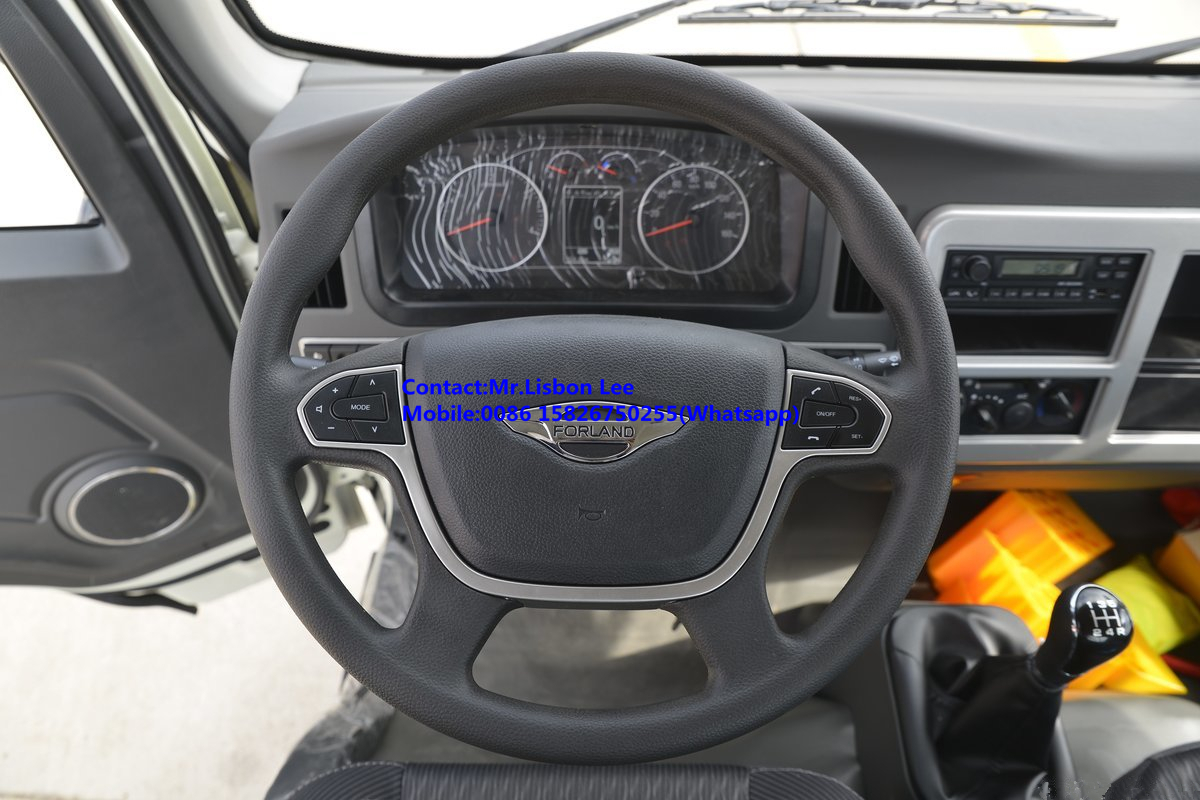

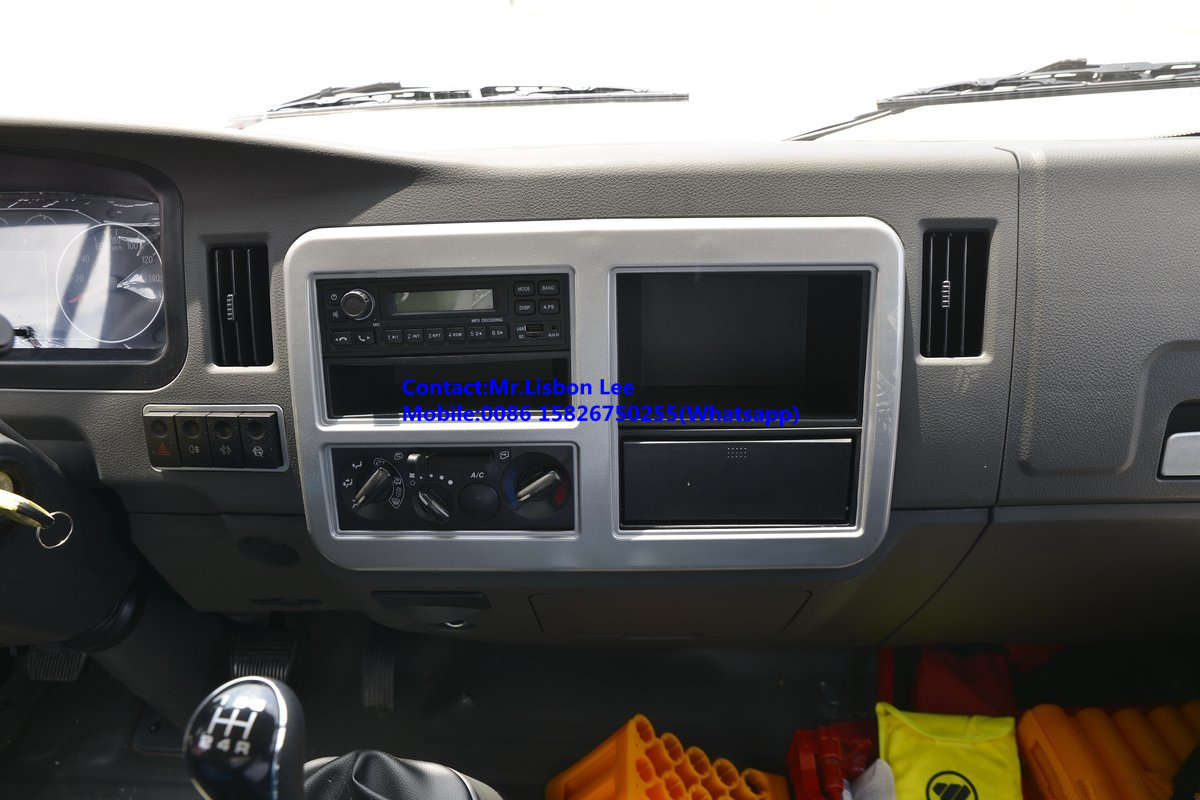

adjustable steering wheel,auxiliary brake,radio,safety belt,ABS,A/C
