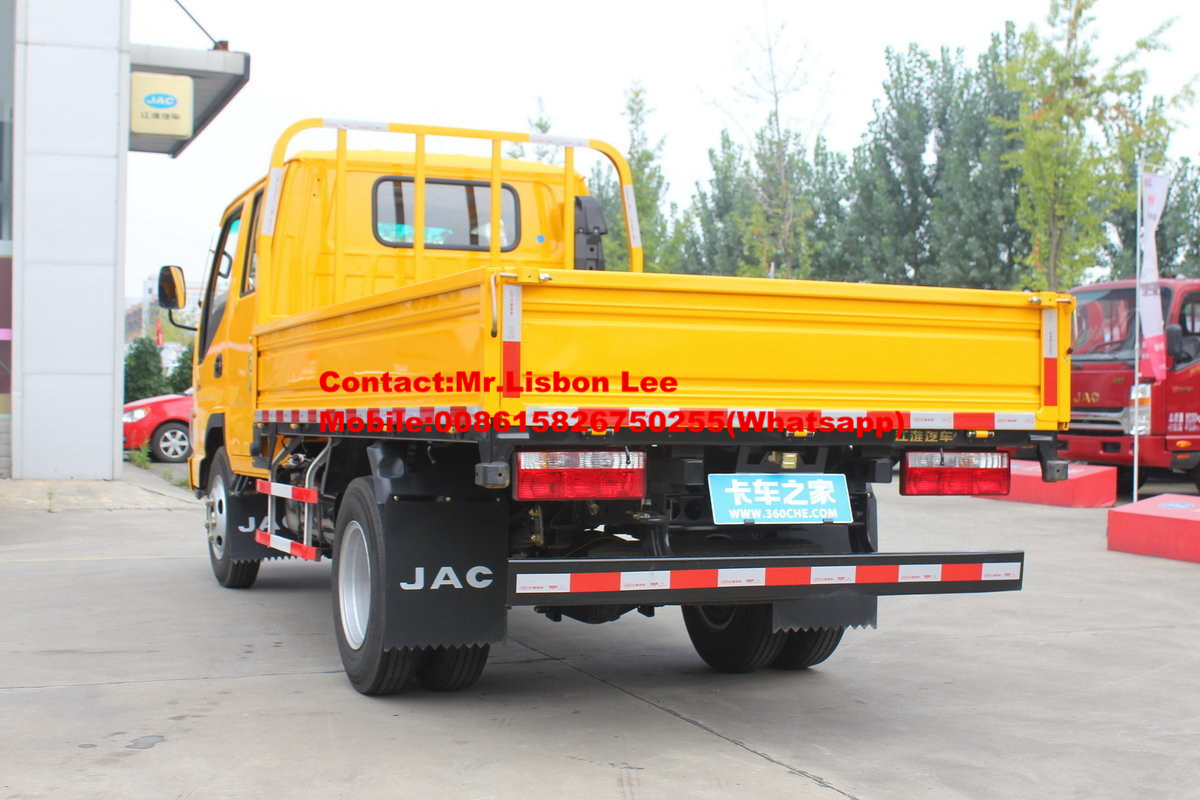

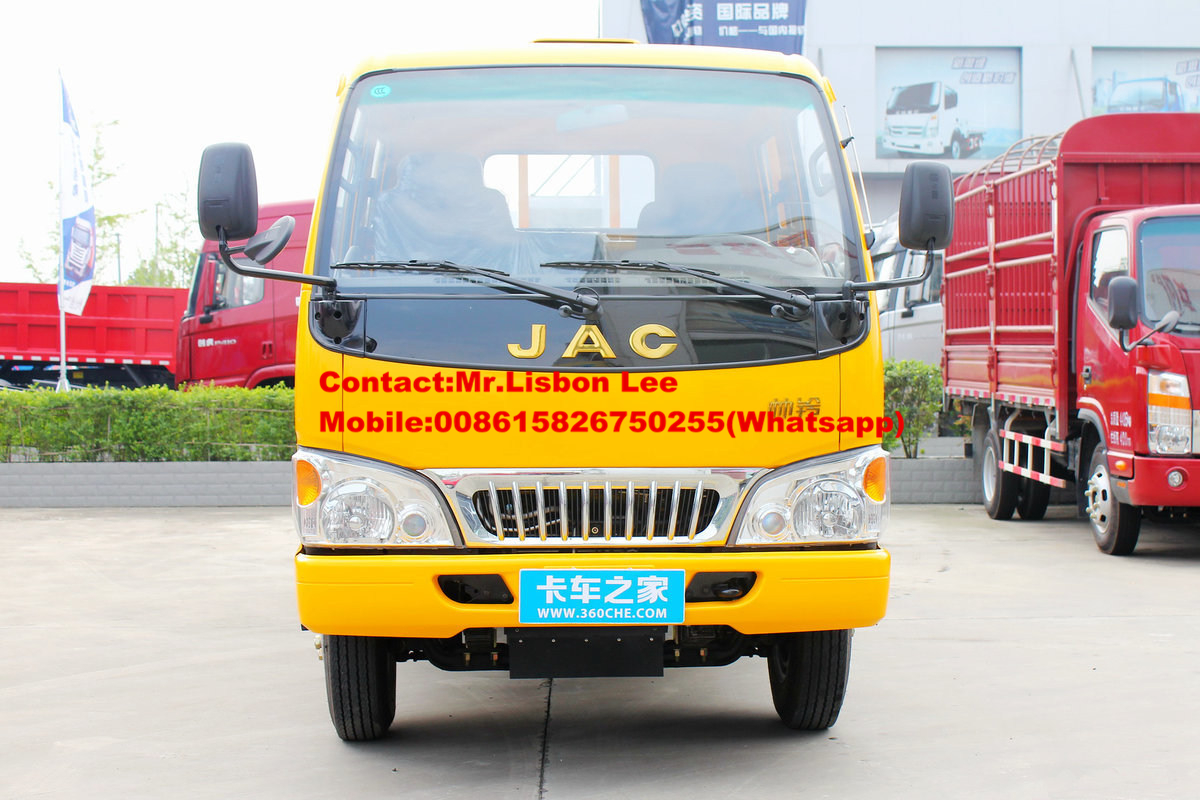

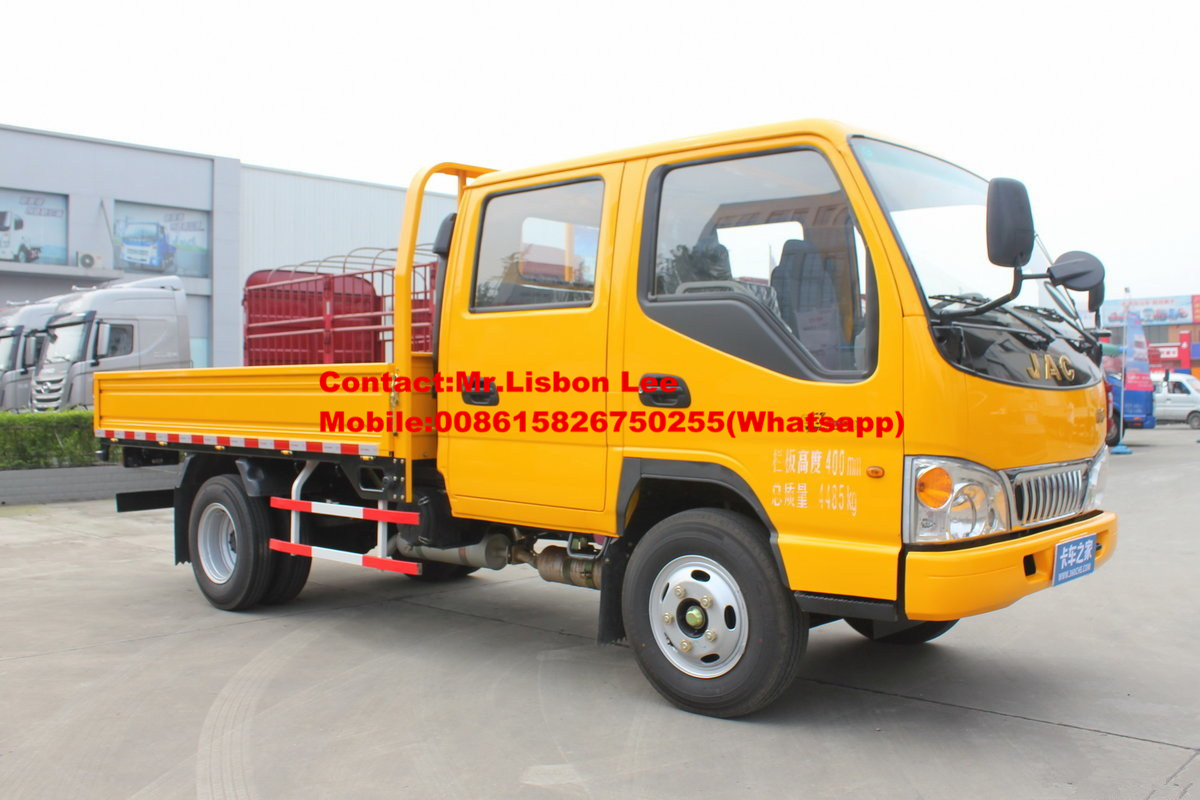

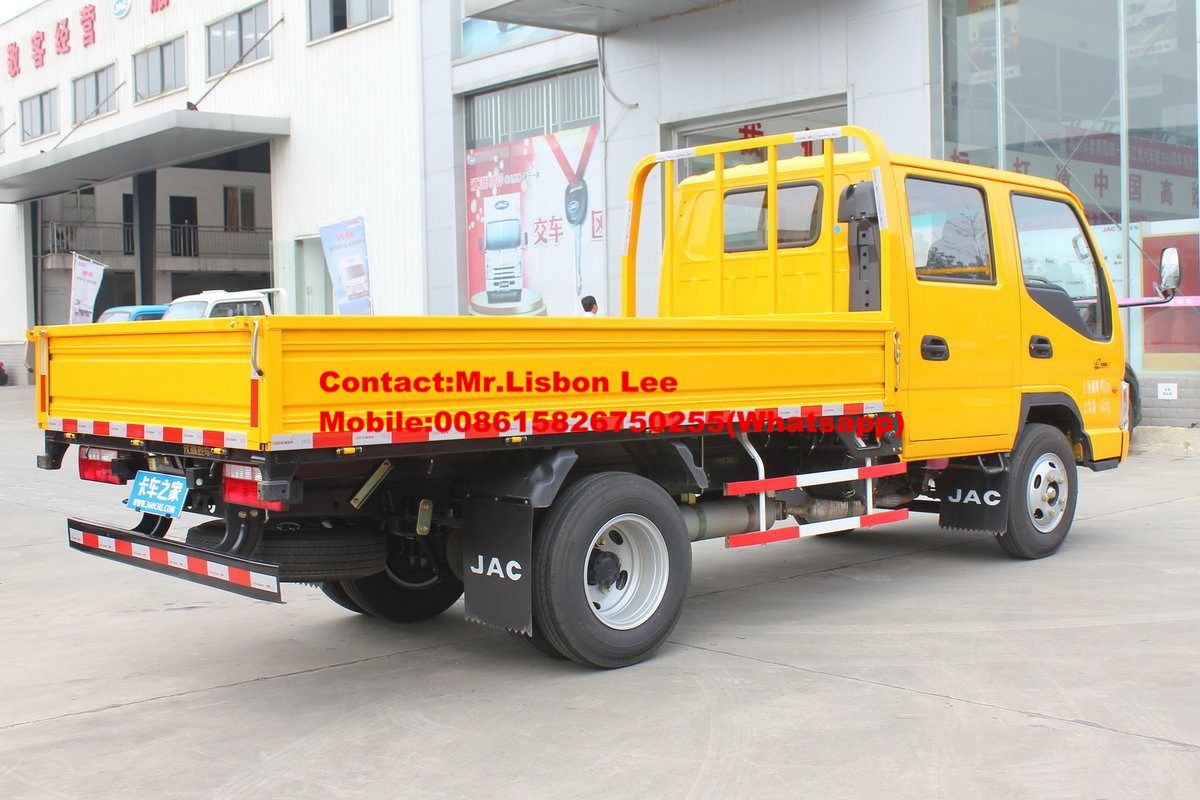

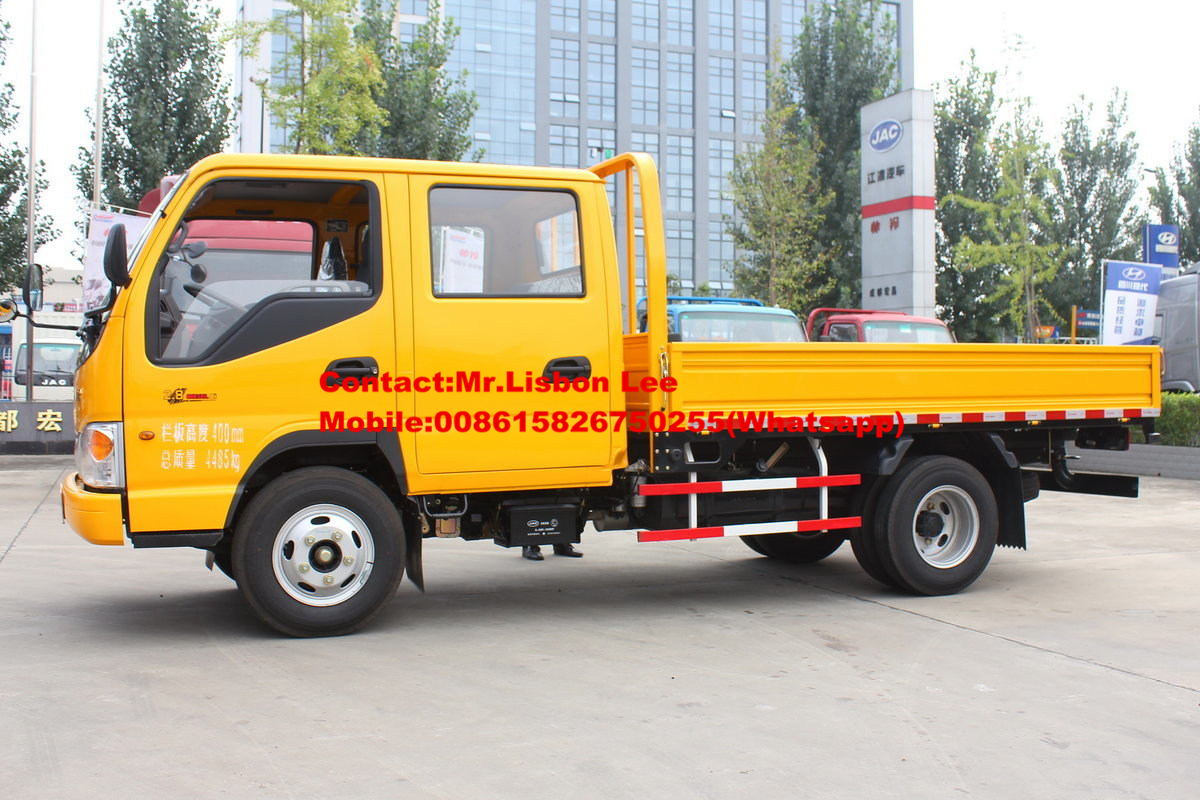

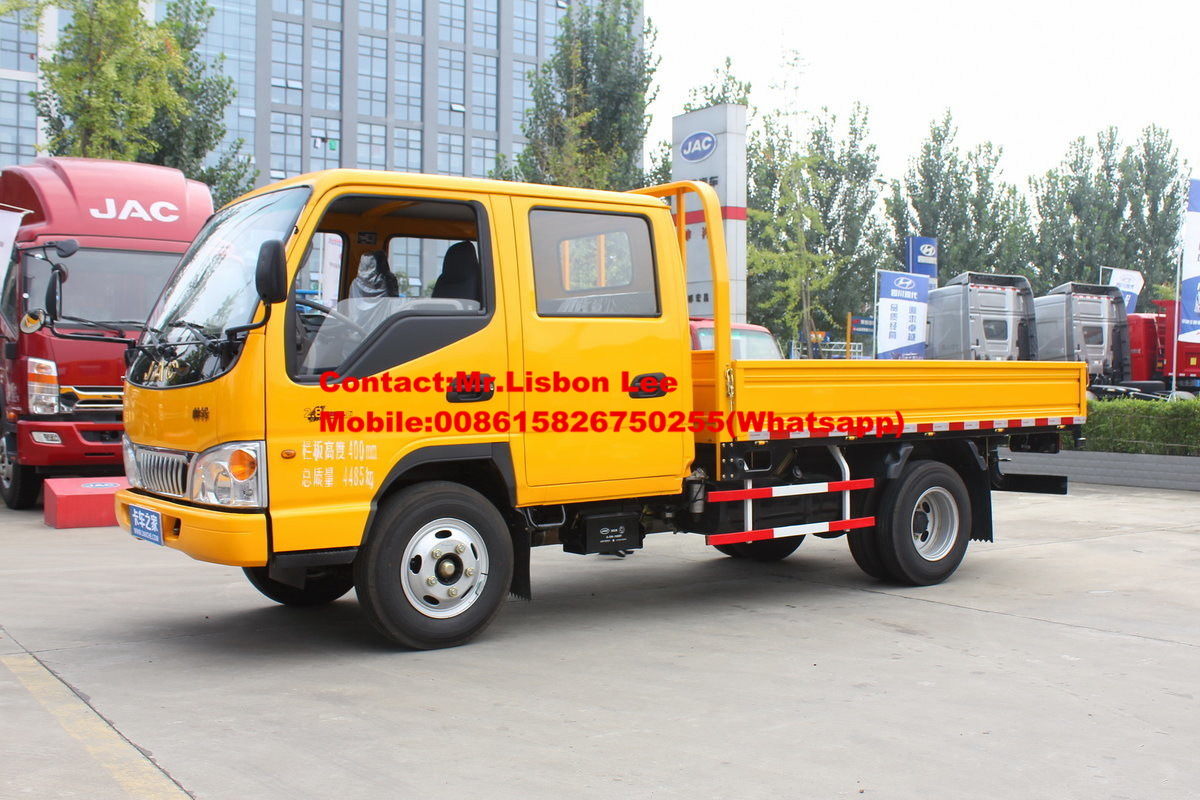

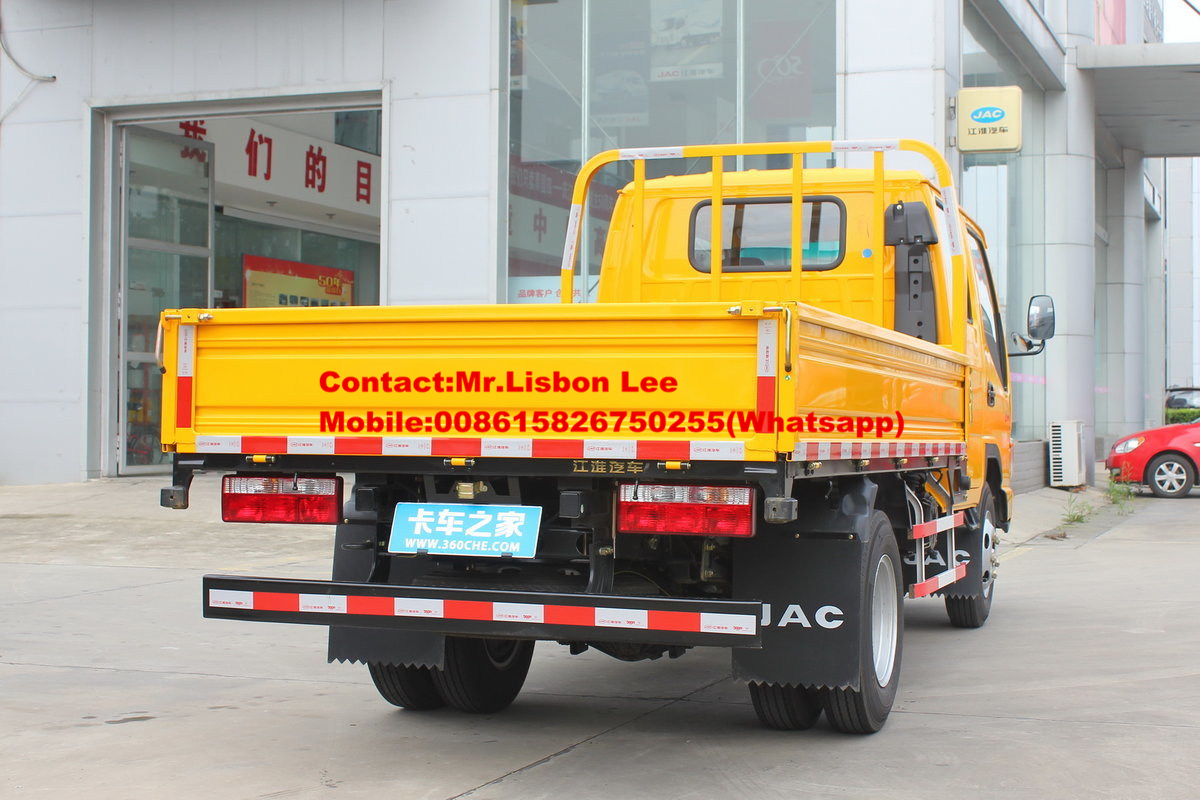

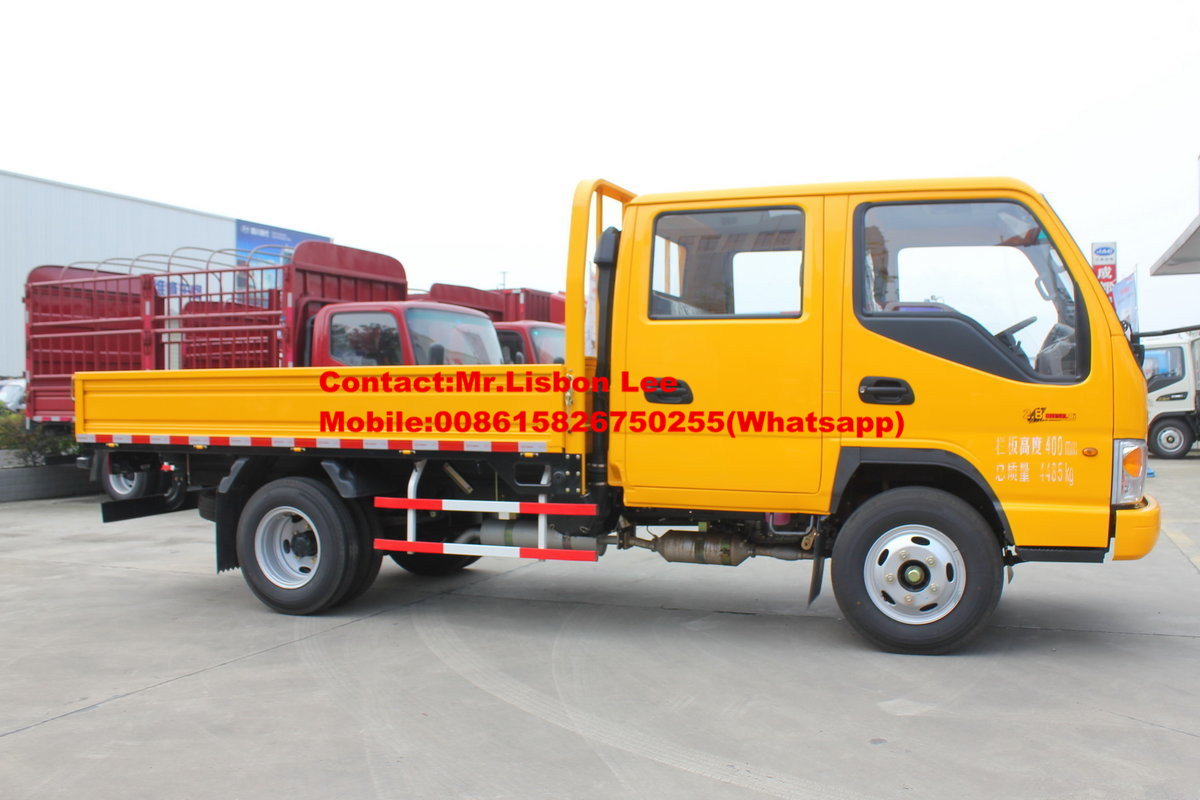

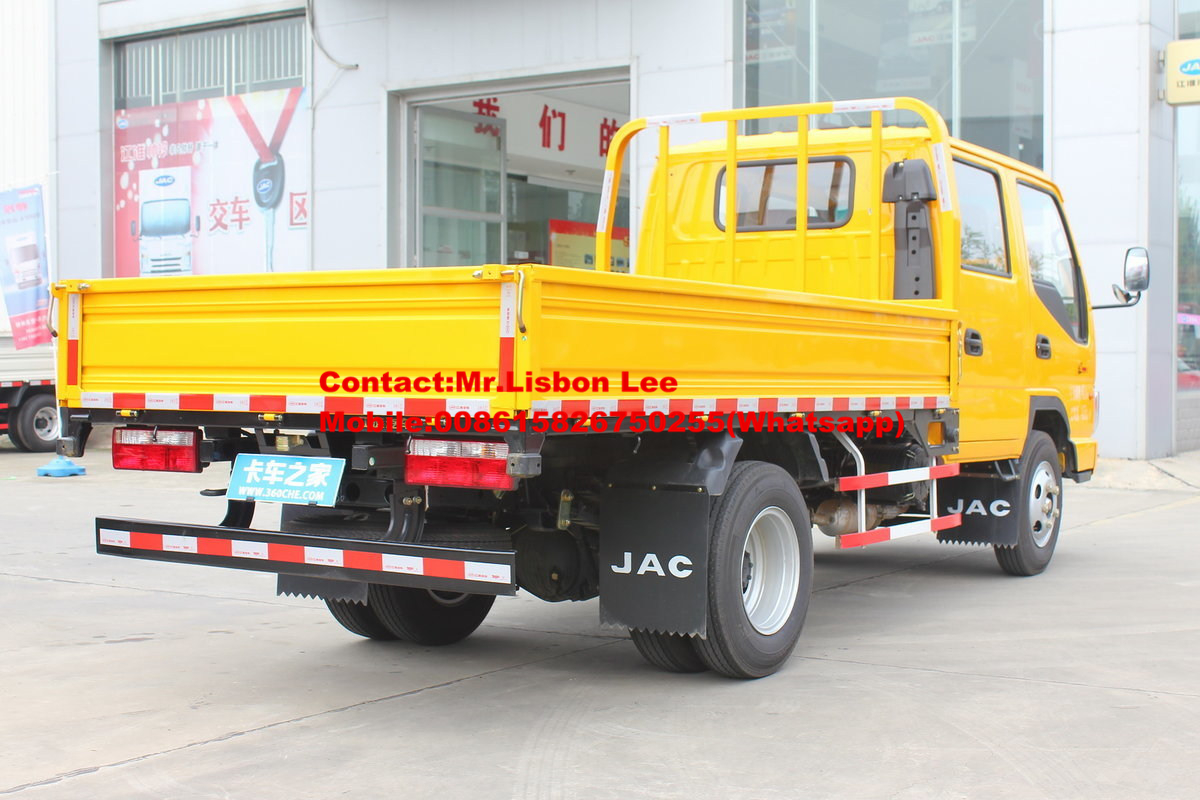

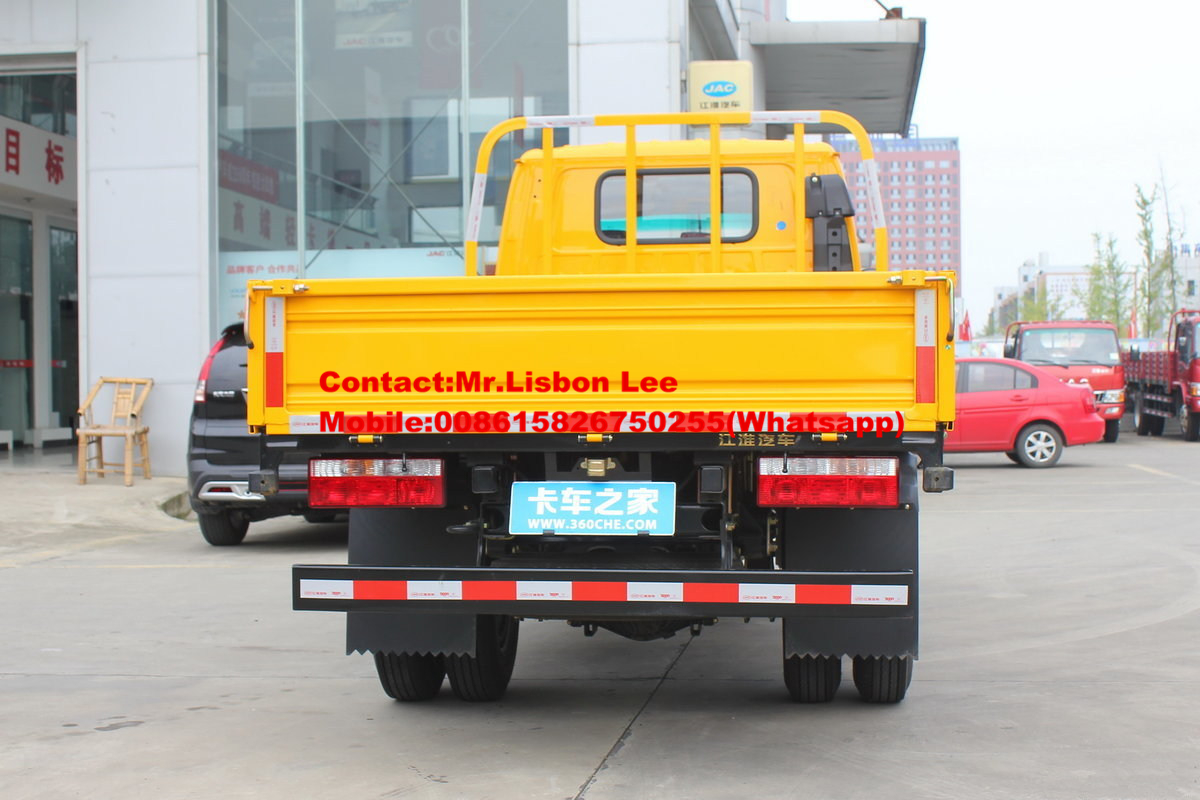

JAC cargo truck with double rows cabin

Chassis model

HFC1043P71K2C2ZV

Engine

Model

WP3Q130E50

Description

In-line/4 cylinders/water cooled/turbo charged/inter cooled/diesel engine

Rated power of engine (kw/HP)

96/130

Maximum torque (N.m@rpm)

420@1400~1800

Displacement (ml)

2970

Emission standard

Euro V

Gearbox

Description

Manual,5 forward gears,1 reverse gear

Front / Rear axle

Front axle load (Kg)

1615

Rear axle load(Kg)

2870

Drive type

4X2

Type of tire

7.00R16

Quantity of tires

6+1

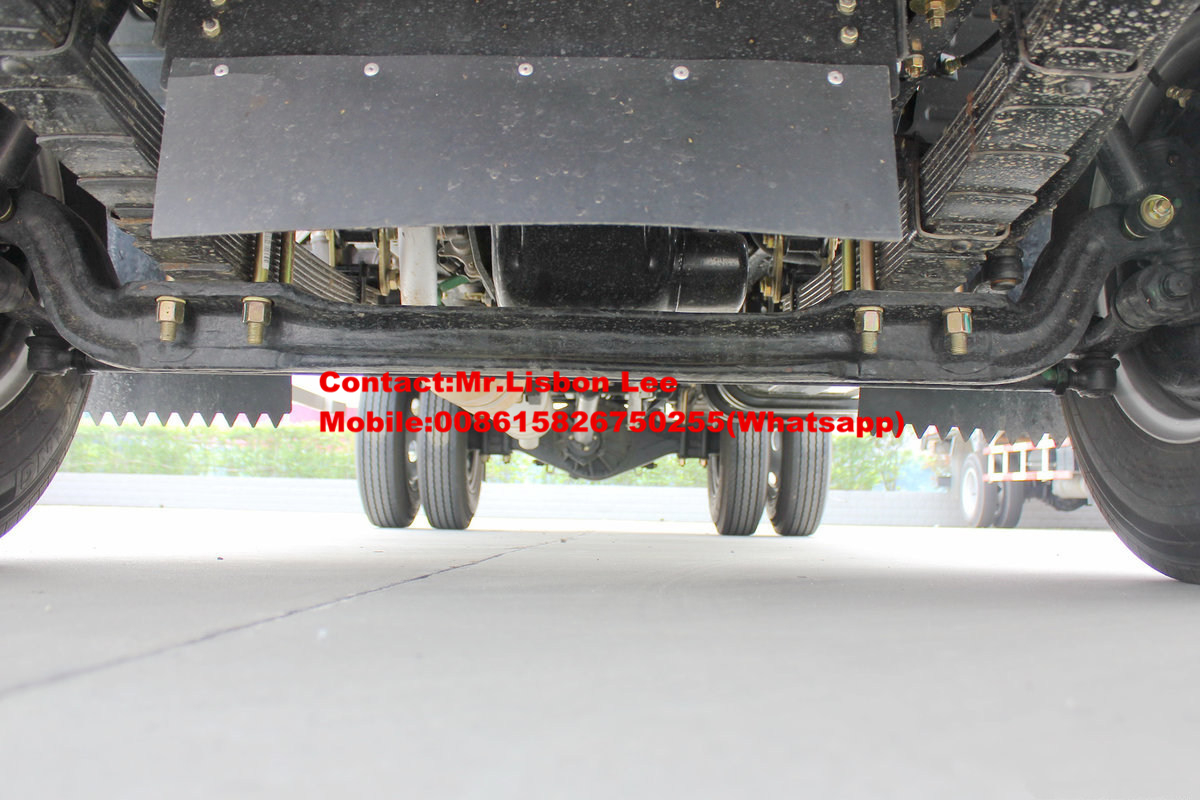

Quantity of leaf spring

11/9+7

Brake system

Service brake type

Drum type, pneumatic pressure double loop braking

Parking brake type

Energy storage spring rear wheel braking

Steering device

Left hand drive,power steering

Weight parameter

Curb weight (Kg)

2400

Load weight(Kg)

5000

Performance parameter

Maximum speed (km/h)

98

Maximum grade ability (%)

≥25%

Fuel consumption unloaded(L/100km)

9.8

General fuel consumption(L/100km)

16.3

Minimum ground clearance (mm)

450

Dimension parameters

Overall dimensions (LxWxH)mm

5995×1890×2250

Internal van dimensions (LxWxH)mm

3200×1790×400

Wheelbase (mm)

3308

Front/rear wheel track (mm)

1440/1425

Front/rear suspension (mm)

1105/1530

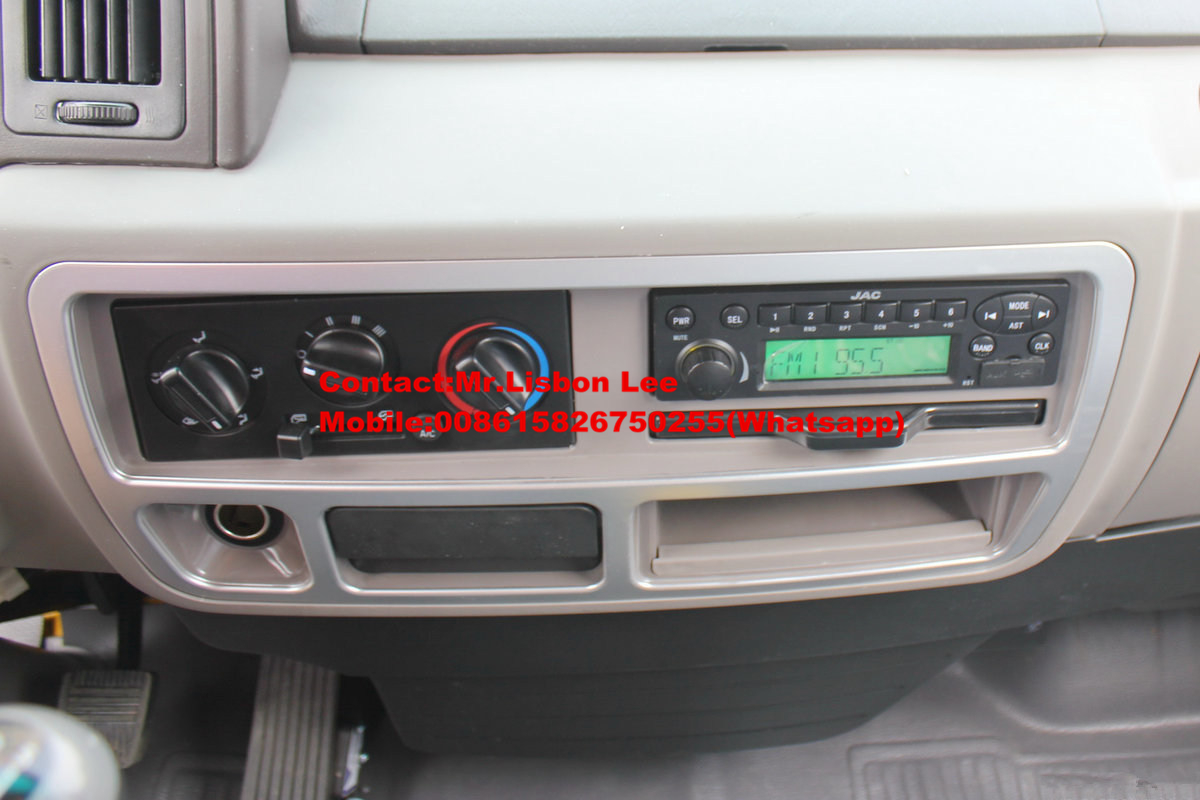

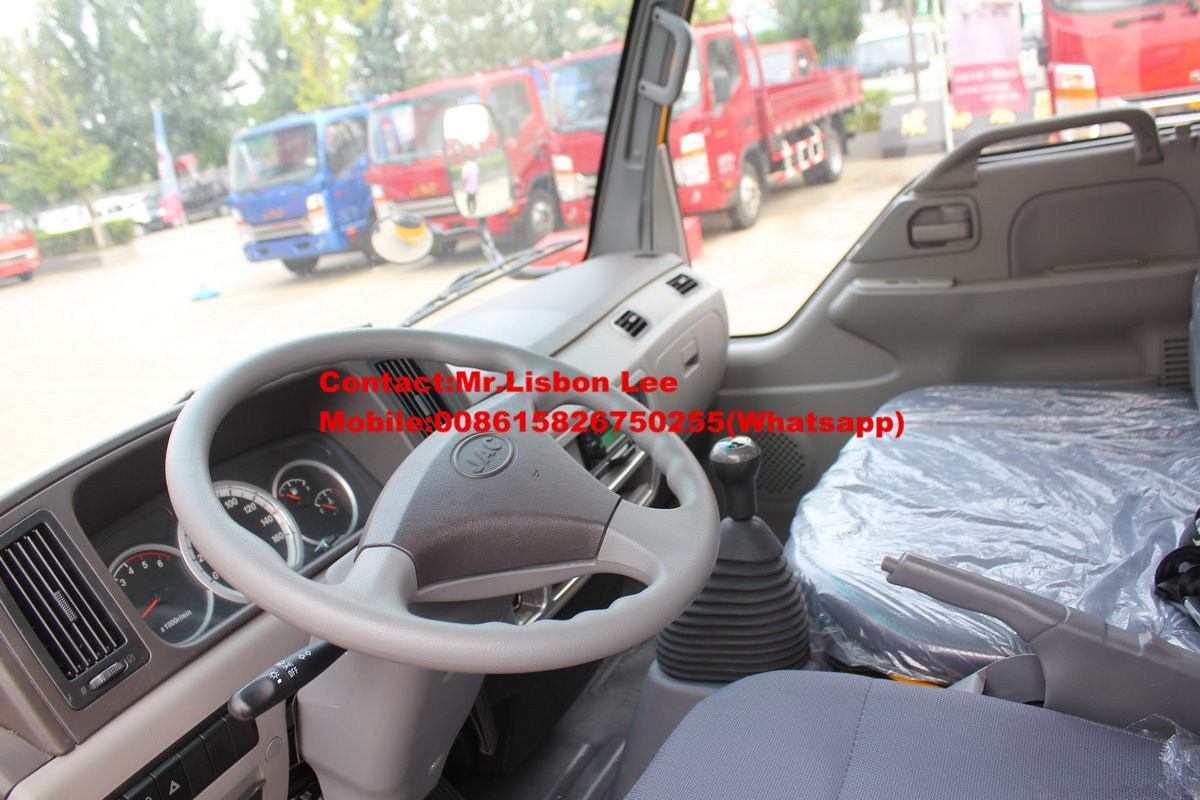

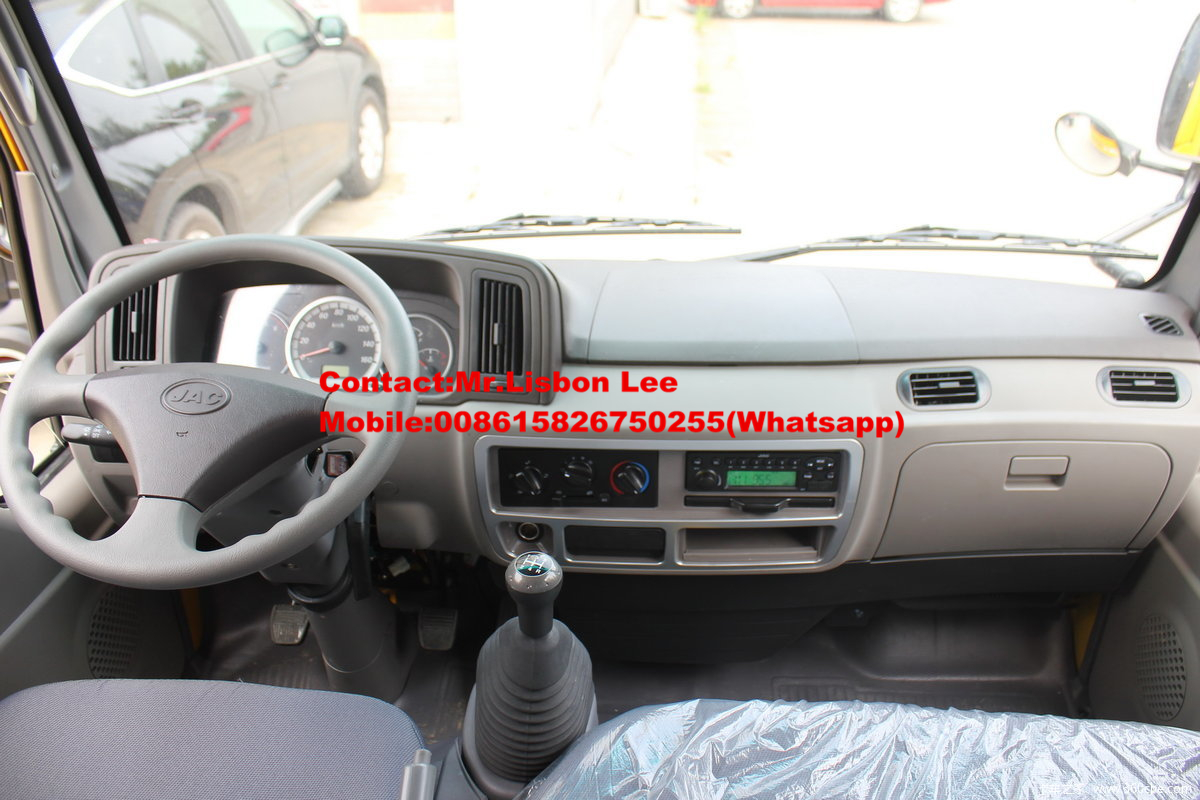

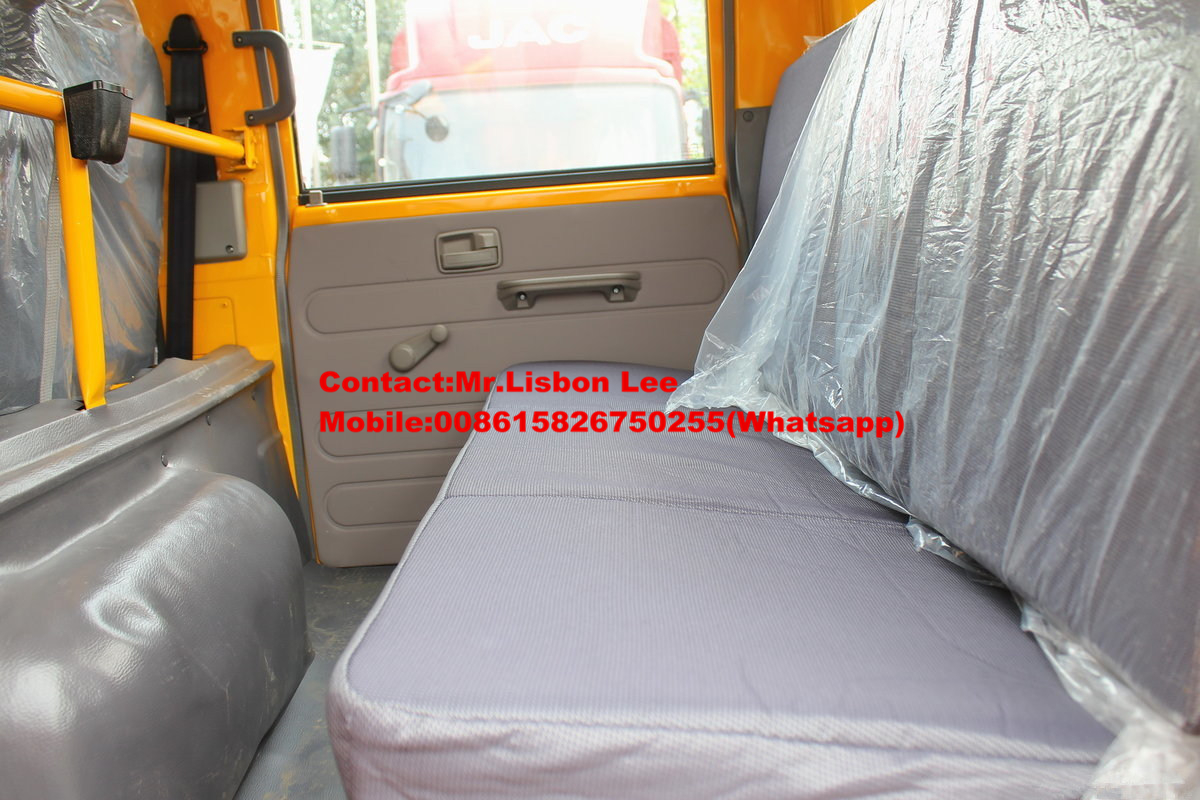

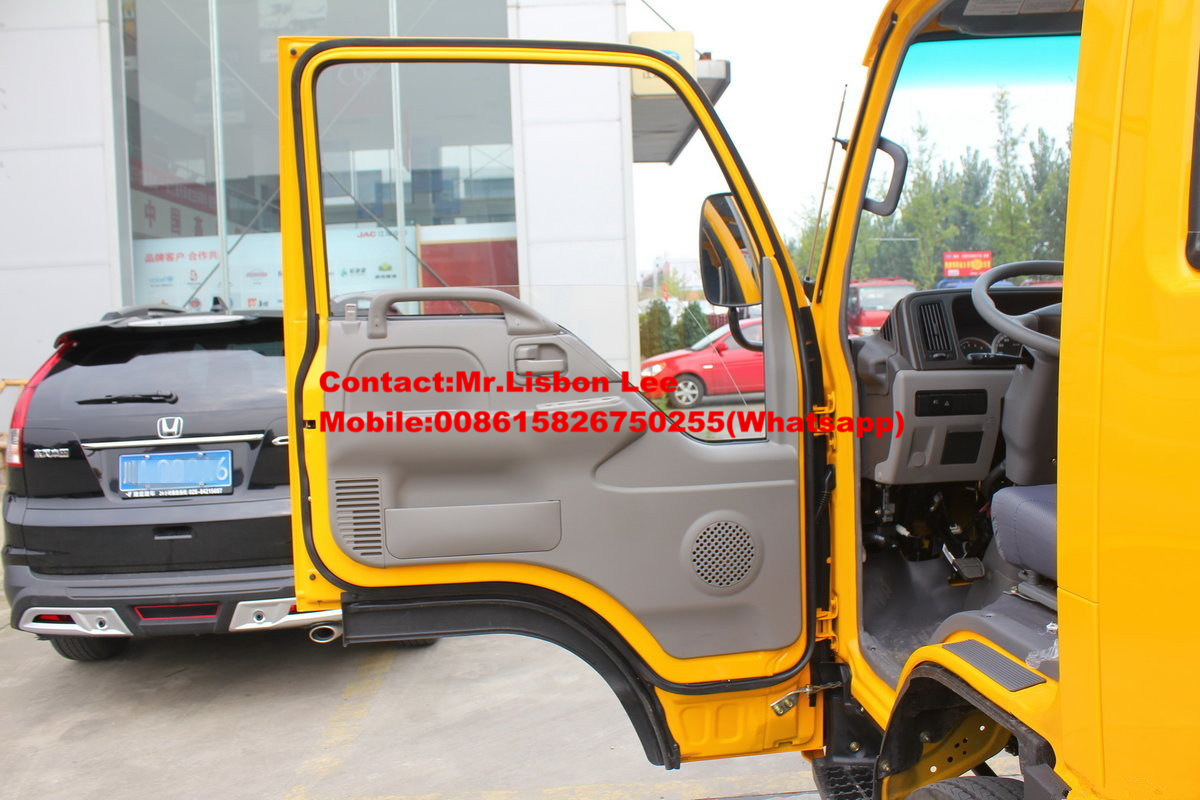

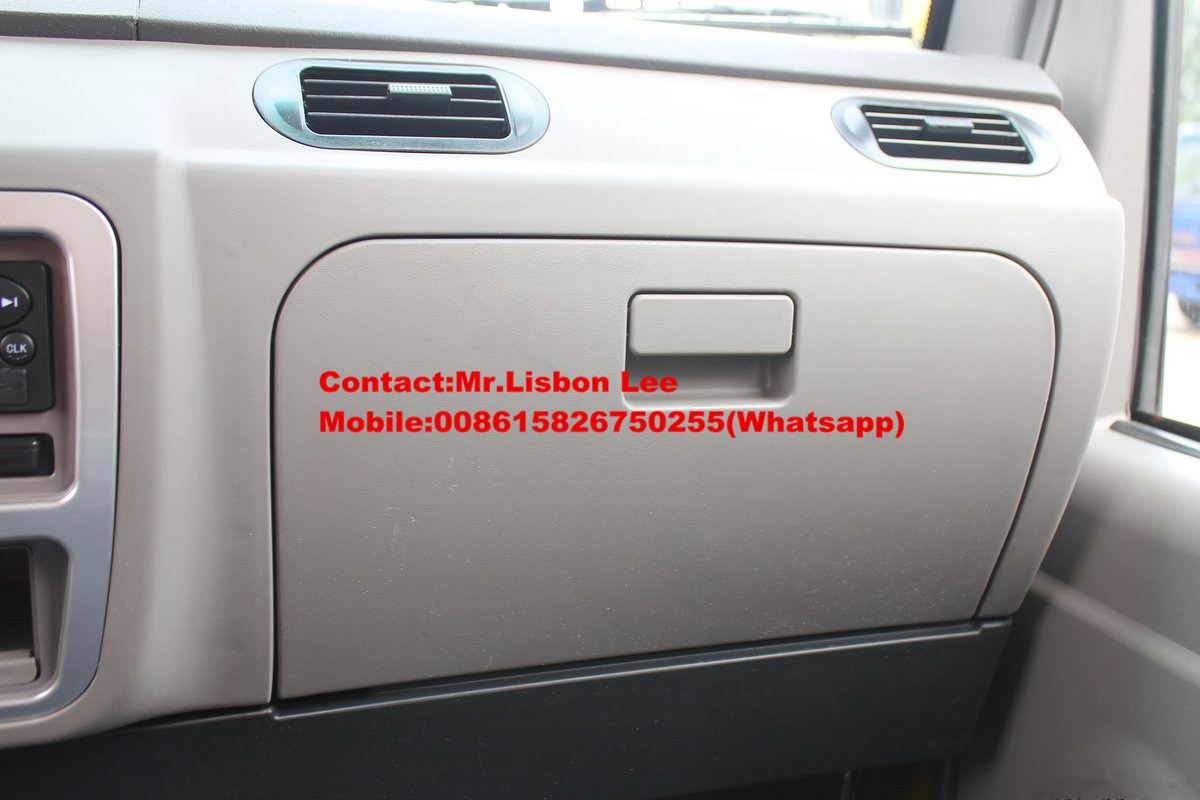

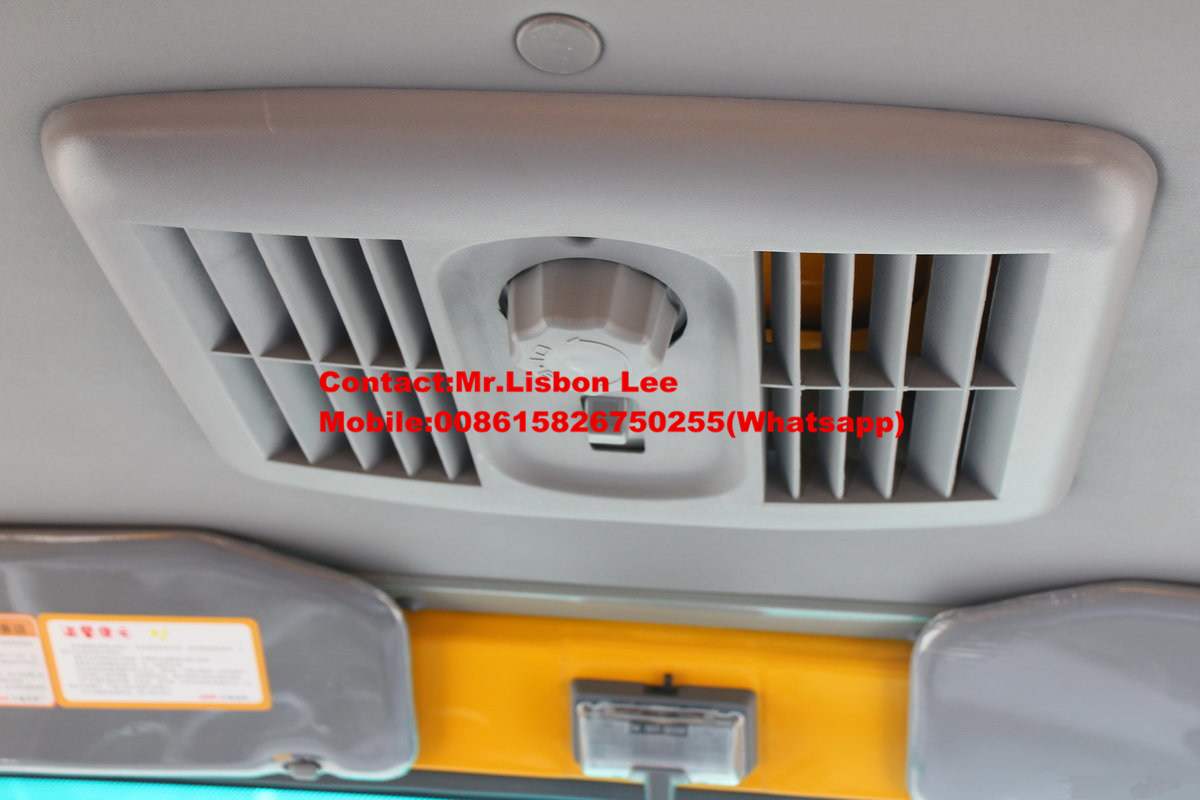

Cabin

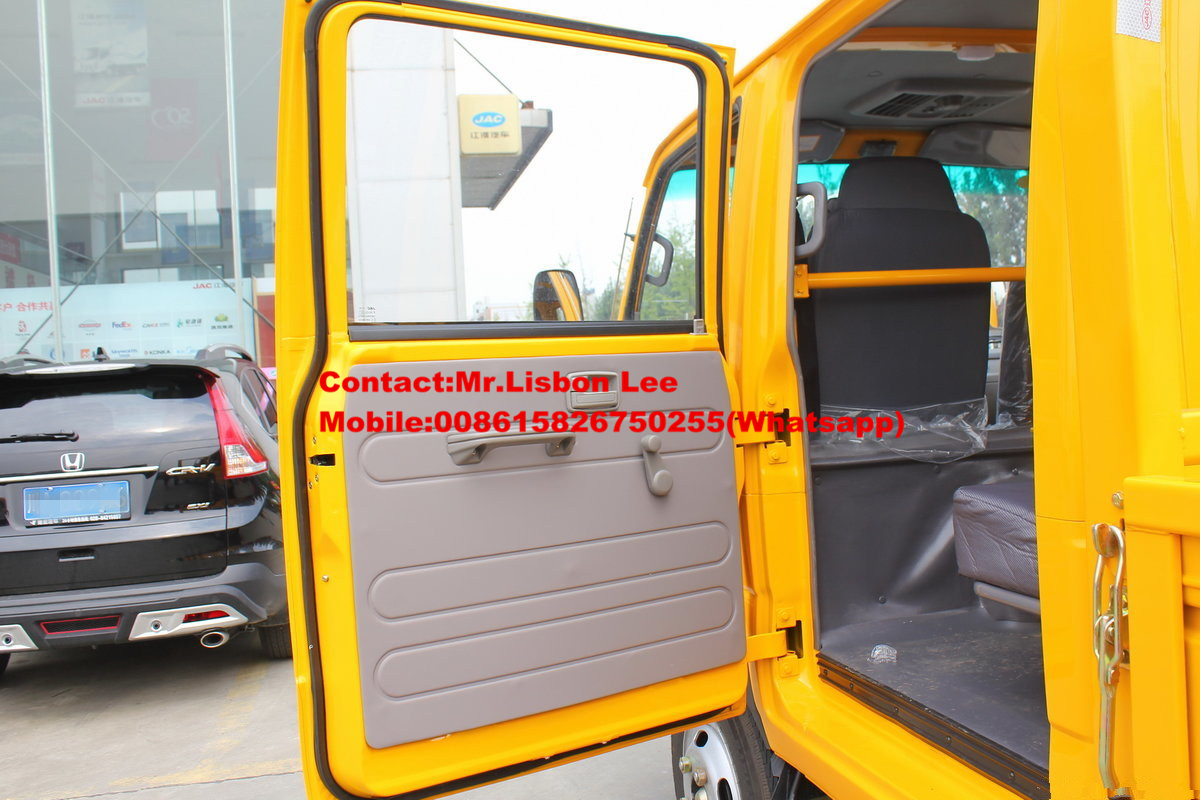

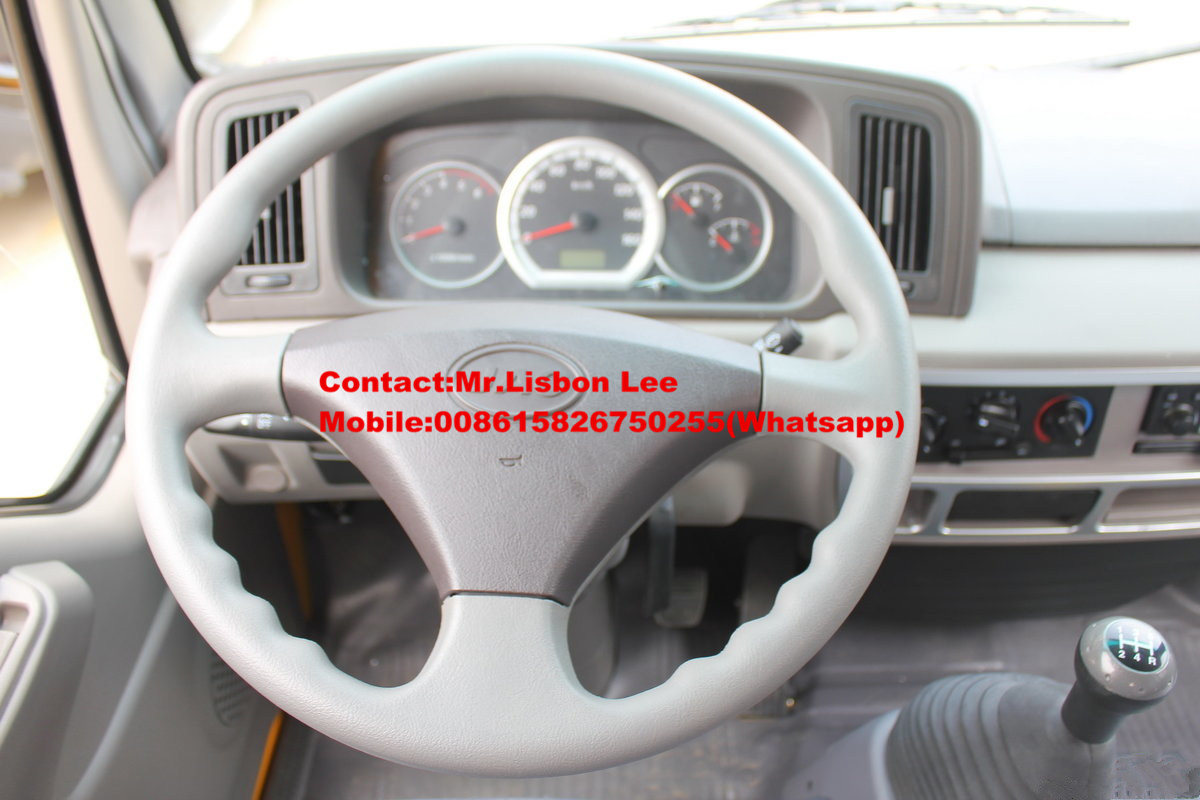

Double rows, four doors,metallic painting,electronic controlled flame-out, auxiliary brake, adjustable steering wheel,power-assisted clutch
