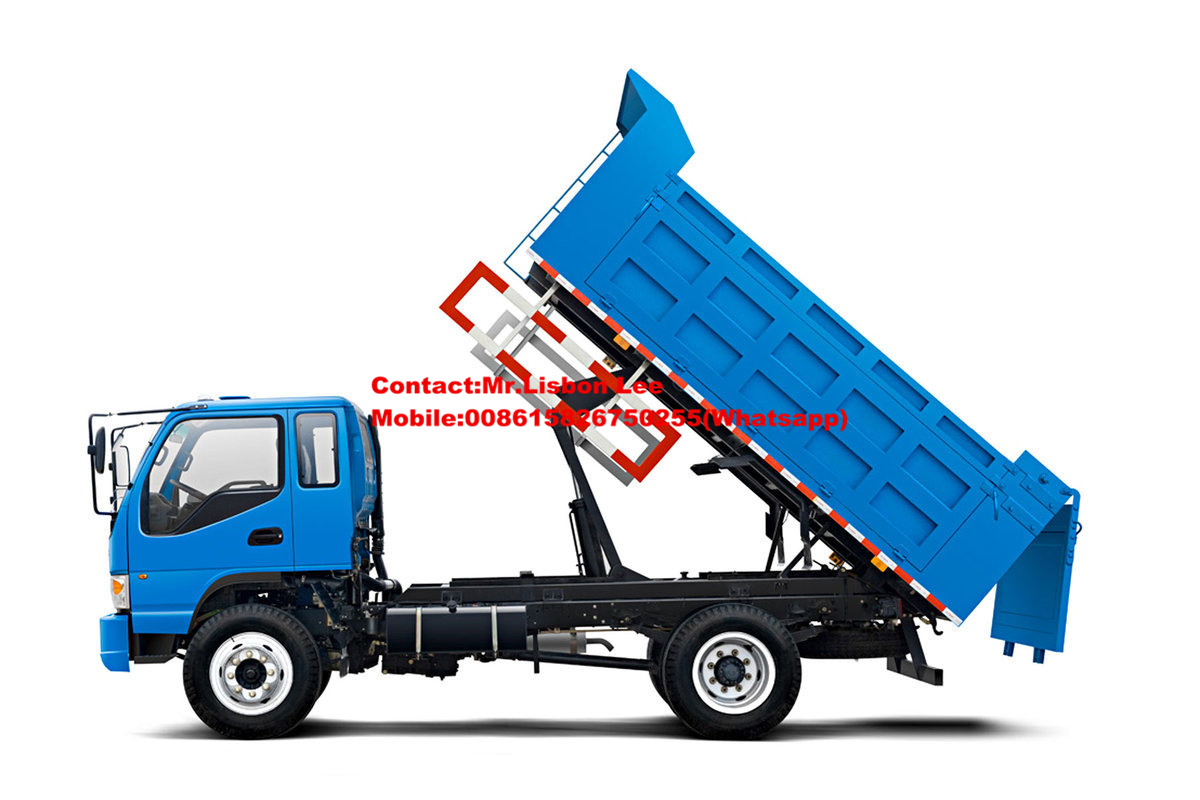

JAC 4X2 dump truck 12Ton

Complete vehicle

Model

HFC3120P91K1C7V-S

Drive type

4X2

Wheel base(mm)

3400

Overall dimension(mm)

6200X2250X2730

Curb weight(Kg)

6500

Load capacity(Kg)

12000

Cabin

Flat roof,standard configuration,one and half rows cabin,with single sleeper,electric tilting,3 passengers allowable,A/C

Engine

Model

YC4S160-50

Max.output (kw/HP)

118/160

Max.torque (N•m)

550 @1300～1800RPM

Displacement (ml)

3767

Emission standard

Euro 5

Description

In-line, 4 cylinders,water cooled,4 strokes,

turbo charged,

inter-cooled,diesel engine

Gear box

Manual,6 forward gears ＆ 1 reverse gears

Driving axle

Load capacity 7480Kg

Front axle

Steering axle,load capacity 4210Kg

Quantity of leaf spring

8/12+10

Inner trimming

Standard configuration

Air suspension seat

Seat heater

Lumbar support to the driver

Adjustable steering wheel

Electrical system

Standard configuration

CAN bus intellectual electronic control system

New battery box

Start/stop device under the vehicle

Safety

Standard

configuration

Three points safety belt

Automatic clearance adjustment arm,tachometer

Service brake

Dual circuit compressed air brake

Parking brake

Spring energy, compressed air operating on rear wheels

ABS

Provided

Comfortable accessories

Cab four points full floating suspension

Front and rear coil spring

Standard configuration

Cab anti-rolling stabilizing device

Hand accelerator

Electric window

Provided

Chassis

Standard configuration

Big tool box

Reinforced rim (with HQ mark)

Three in one lock (Ignition switch, door and fuel tank)

Type specification

9.00R20LT

Number of tyres

6+1

Max.vehicle speed(km/h)

80

Dump box

Box dimension(mm)

3800X2100X800

Material

WISCO carbon steel

Thickness

Bottom 4mm,side 3mm

Lifting system

Hydraulic middle lifting
