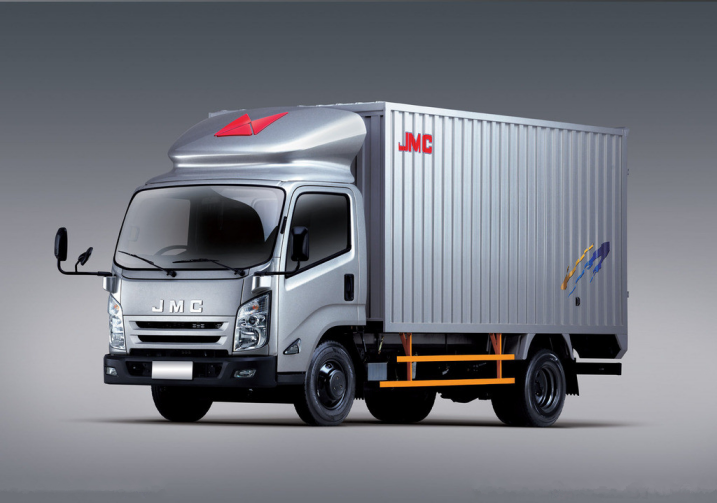

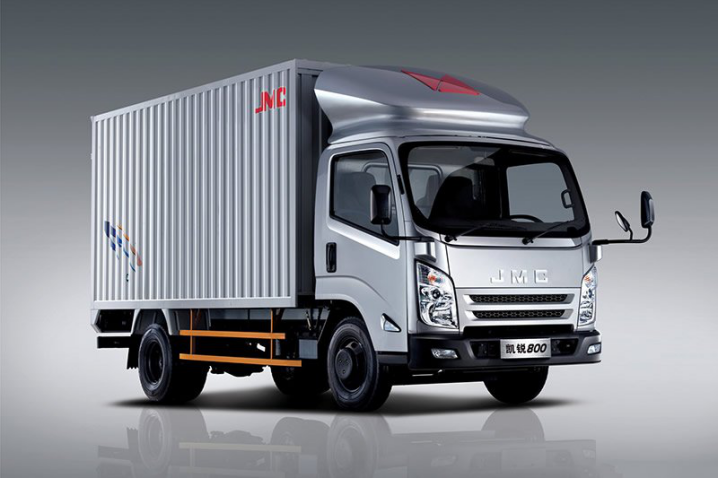

JMC Van Truck 8Ton (KAIRUI)

Basic information>>

Chassis model:

JX1073TG25

Drive type:

4X2

Wheel base(mm)

3360

Overall dimension(mm)

5995×2130×3160

Load weight(kg)

8000

Box dimension(mm):

4080×2050×2050

Curb weight(kg):

3630

Max.vehicle speed

(km/h)

110

F/R suspension

(mm) :

1125/1510

Approach/departure

angle:

23/14.5

Engine>>

Engine model:

JX4D30A5H

Emission standard:

Euro 5

Displacement:

2892mL

Rated revolution:

2800rpm

Max.power:

112KW/152HP

Max.torque:

382N.m@1800-2800rpm

Description

In-line,four cylinders,water-cooled,four strokes,turbo charged,inter-cooled,diesel engine

Gearbox>>>>

Description:

Manual,6 forward gears ＆1 reverse gear

Chassis>>>>

Number of leaf

springs:

9/9+8

Type of tire:

7.50R16LT

Steering system:

LHD,power assisted

Brake system:

Pneumatic brake

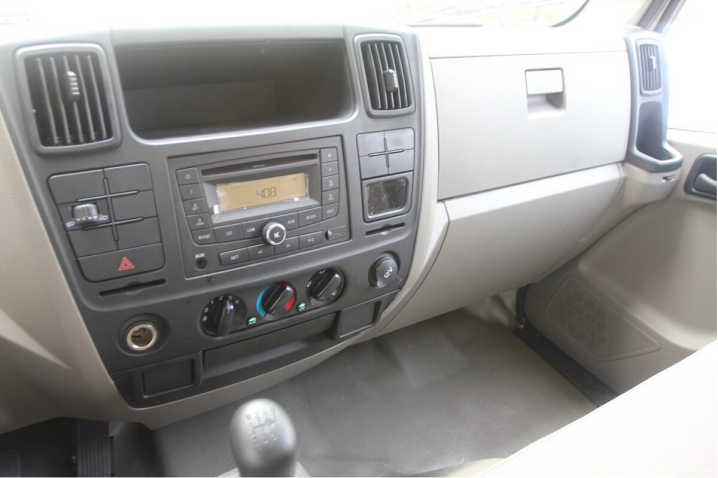

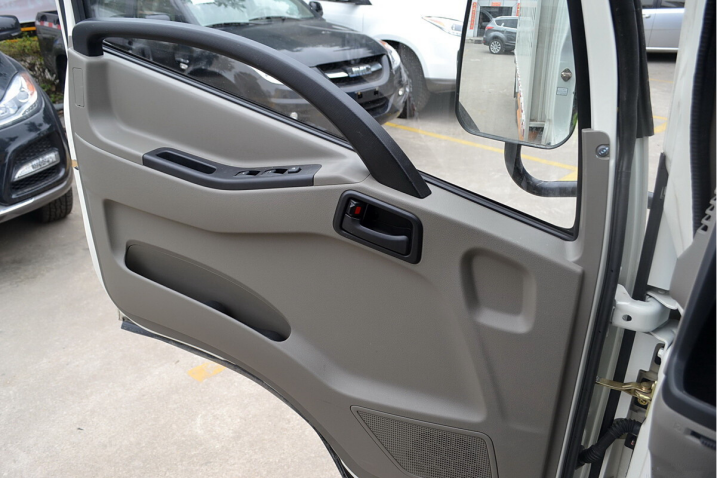

Cab

Single row, two doors,3 passengers allowable,luxury configuration,remote lock,

turnable,A/C provided,color white,blue,red for option

Van box

Material corrugated steel panel,with dear door
