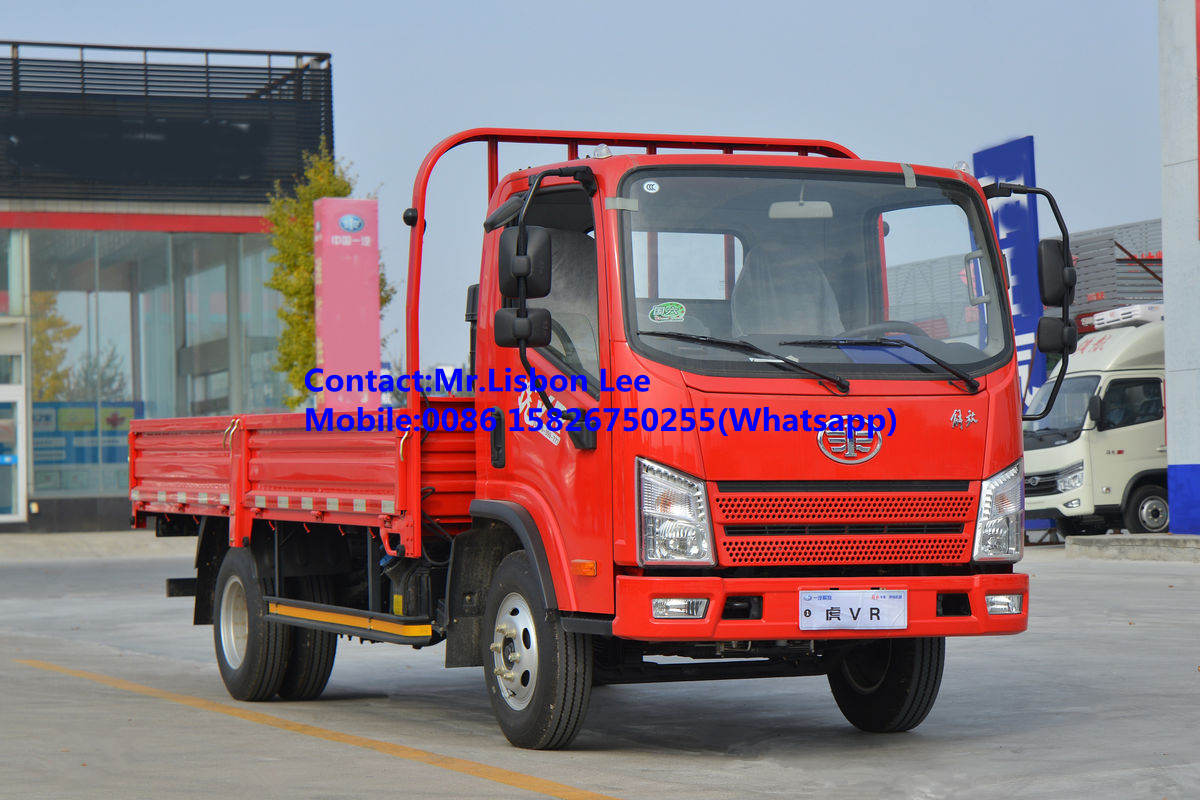

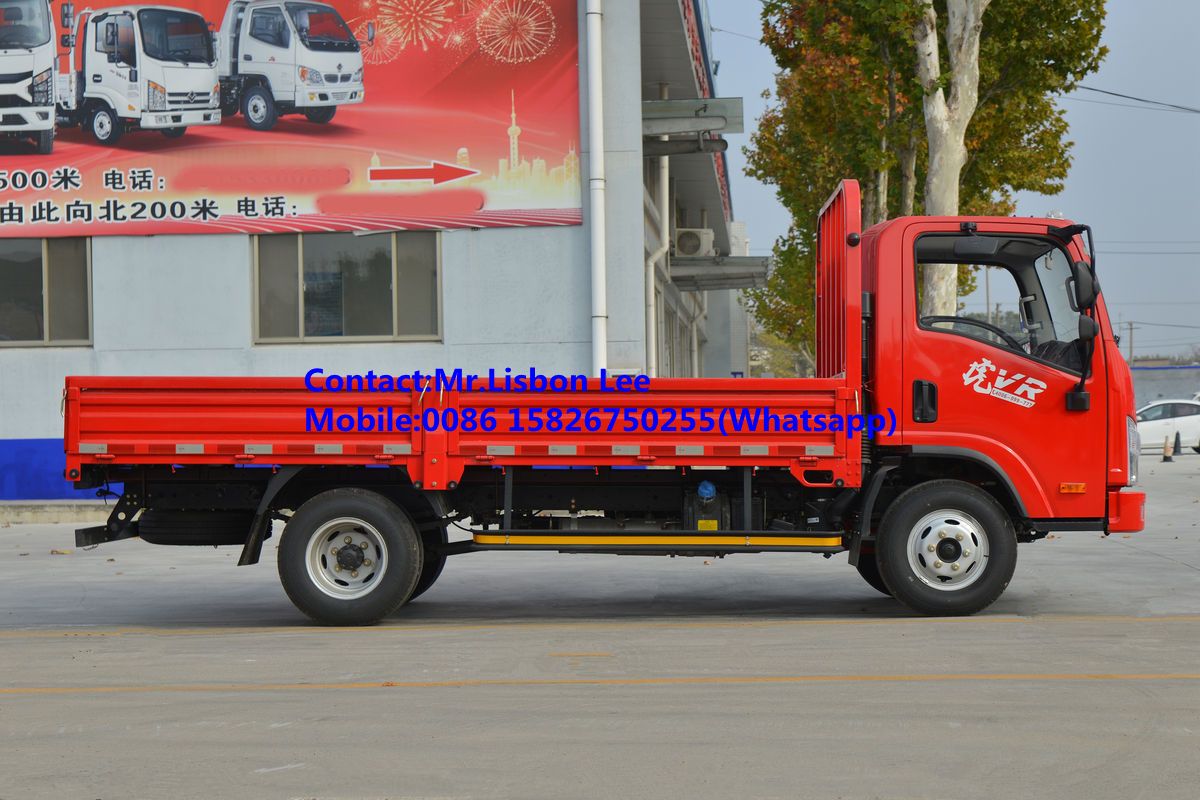

FAW VR Cargo Truck 2.5Ton

Chassis model

CA1030P40K

Engine

Model

CA4DB1-11E3

Description

In-line/4 cylinders/water cooled/turbo charged/inter cooled/diesel engine

Rated power of engine (kw/HP)

81/110

Maximum torque (N.m@rpm)

280@1600-2400

Displacement (ml)

2200

Emission rating

Euro 3

Gearbox

Description

Manual,5 forward gears,1 reverse gear

Front / Rear axle

Front axle load (Kg)

2000

Rear axle load(Kg)

3000

Drive type

4X2

Type of tire

7.00R16 14PR

Quantity of tires

6+1

Quantity of leaf spring

3/7+3

Brake system

Service brake type

Drum type,air pressure double loop braking

ABS

Provided

Parking brake type

Energy storage spring rear wheel braking

Steering device

Left hand drive,power assisted

Weight parameter

Gross vehicle weight (Kg)

3490

Curb weight (Kg)

2565

Actual load weight(Kg)

2500

Performance parameter

Maximum speed (km/h)

89

Maximum grade ability (%)

≥20%

Dimension parameters

Overall dimensions (LxWxH)mm

5995×2190×2300

Internal box dimensions (LxWxH)mm

4200×1910×410

Wheelbase (mm)

3300

Front/rear wheel track (mm)

1500/1475

Front/rear suspension (mm)

1150/1545

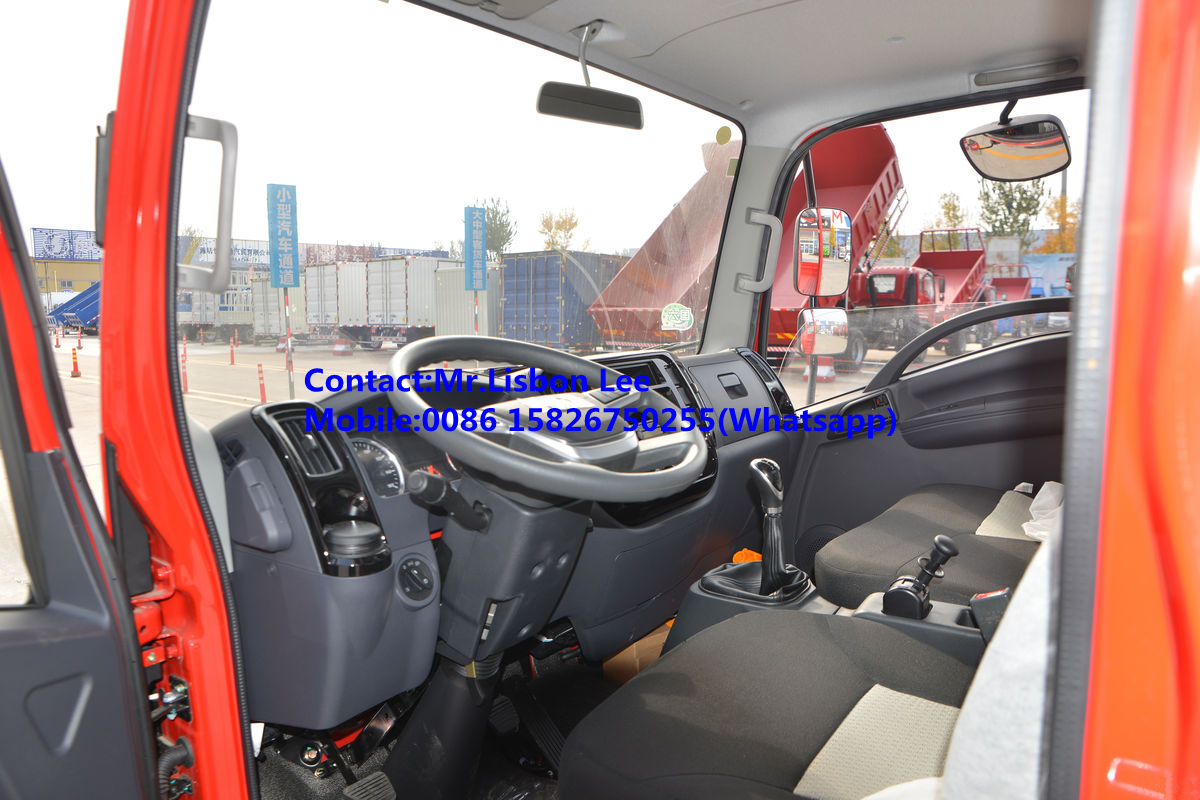

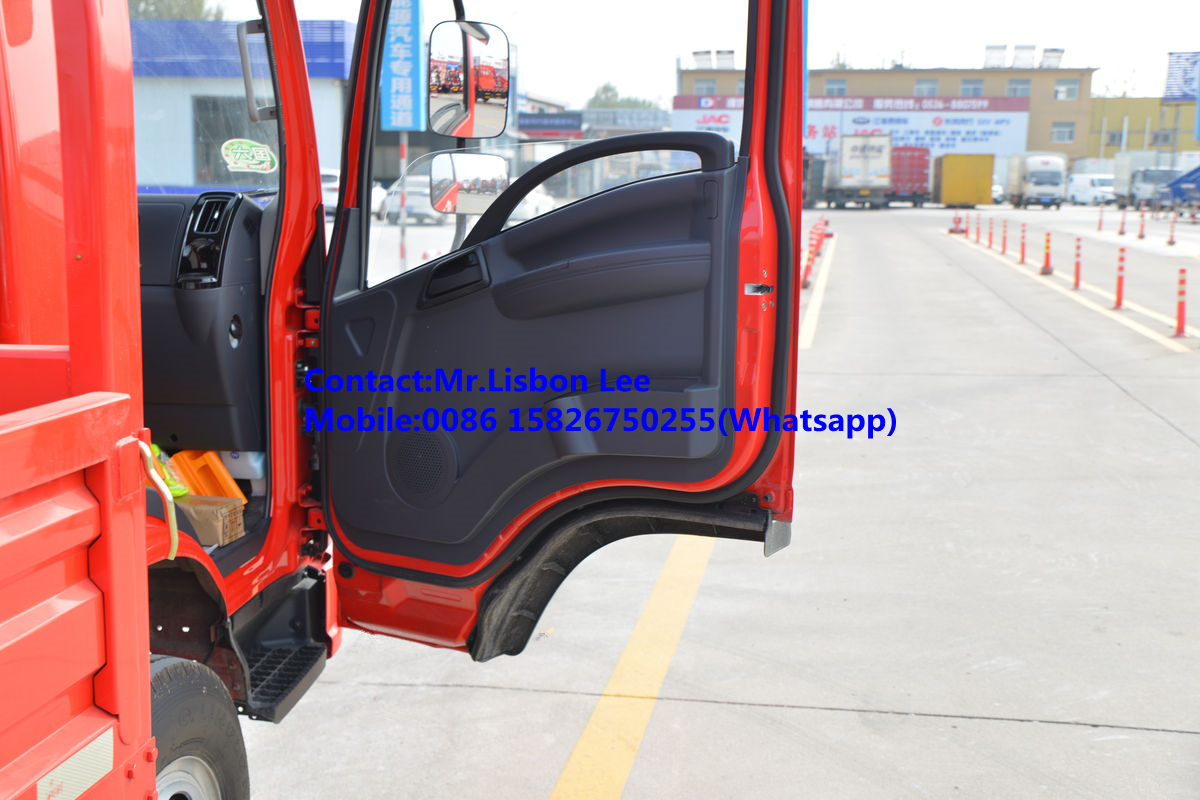

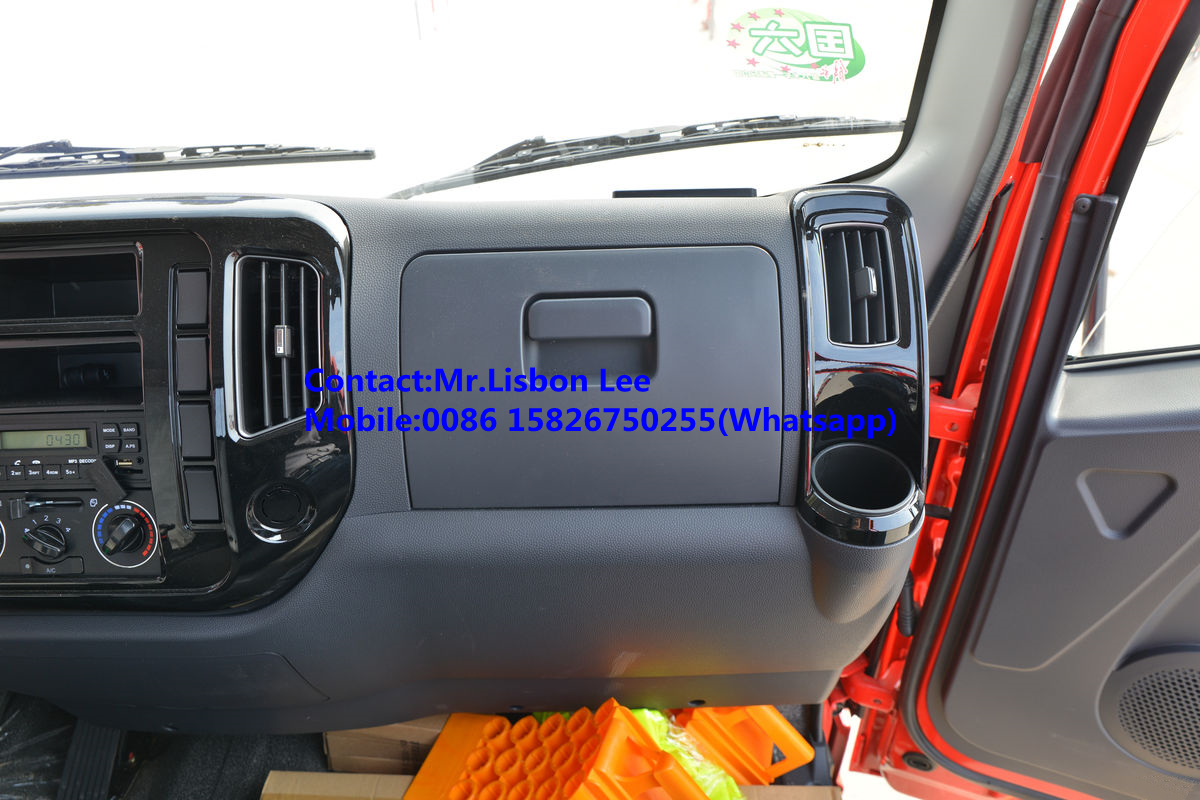

Cabin

VR single row,turn-able,luxury configuration,auxiliary air brake,

adjustable steering wheel,fan heater,radio, safety belt,A/C,

electric windows,central lock,multi-function steering wheel,European standard dashcam,driver and co-driver airbags,cruise control,

French dashboard

Fuel tank capacity (L)

80
