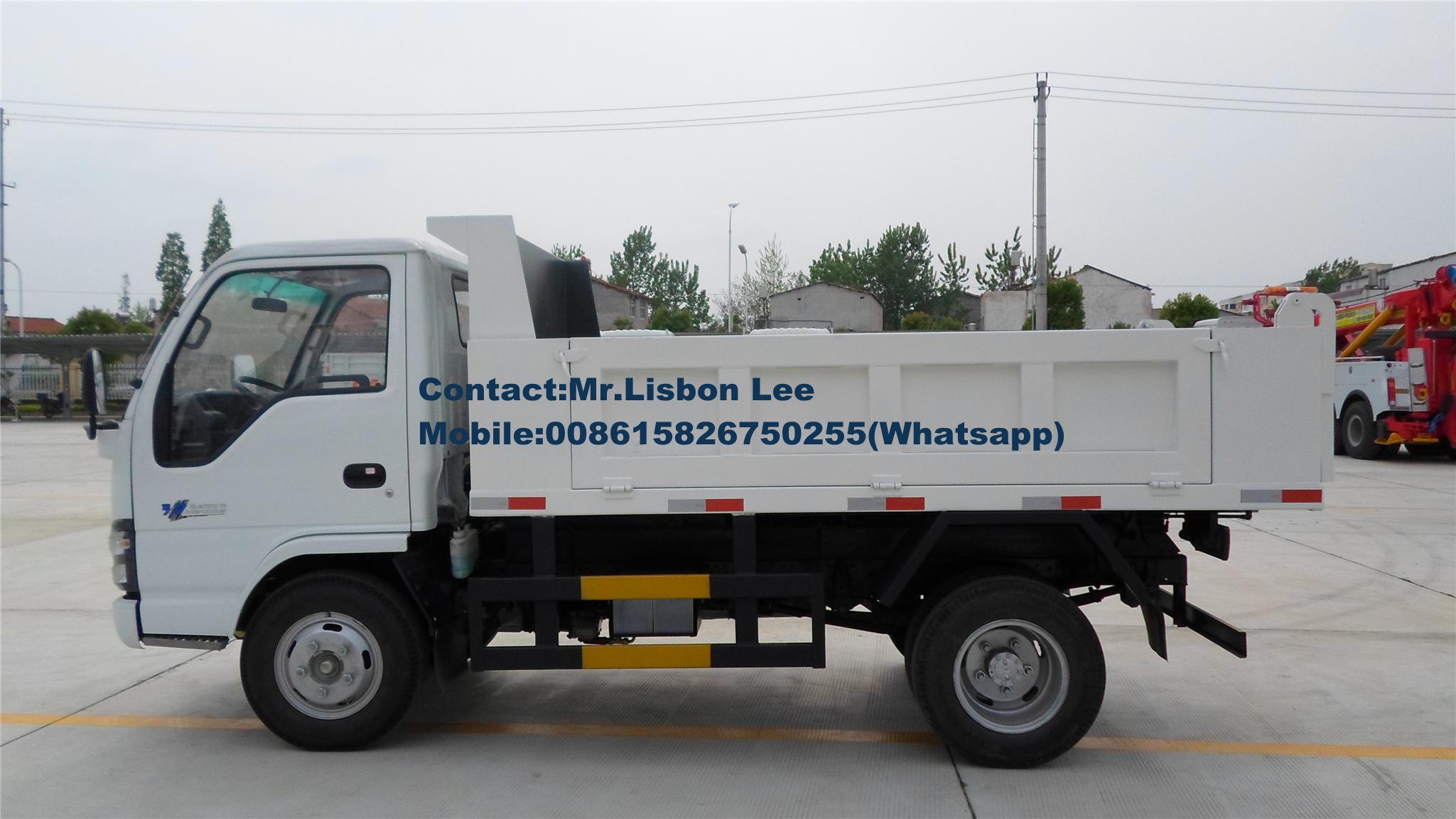

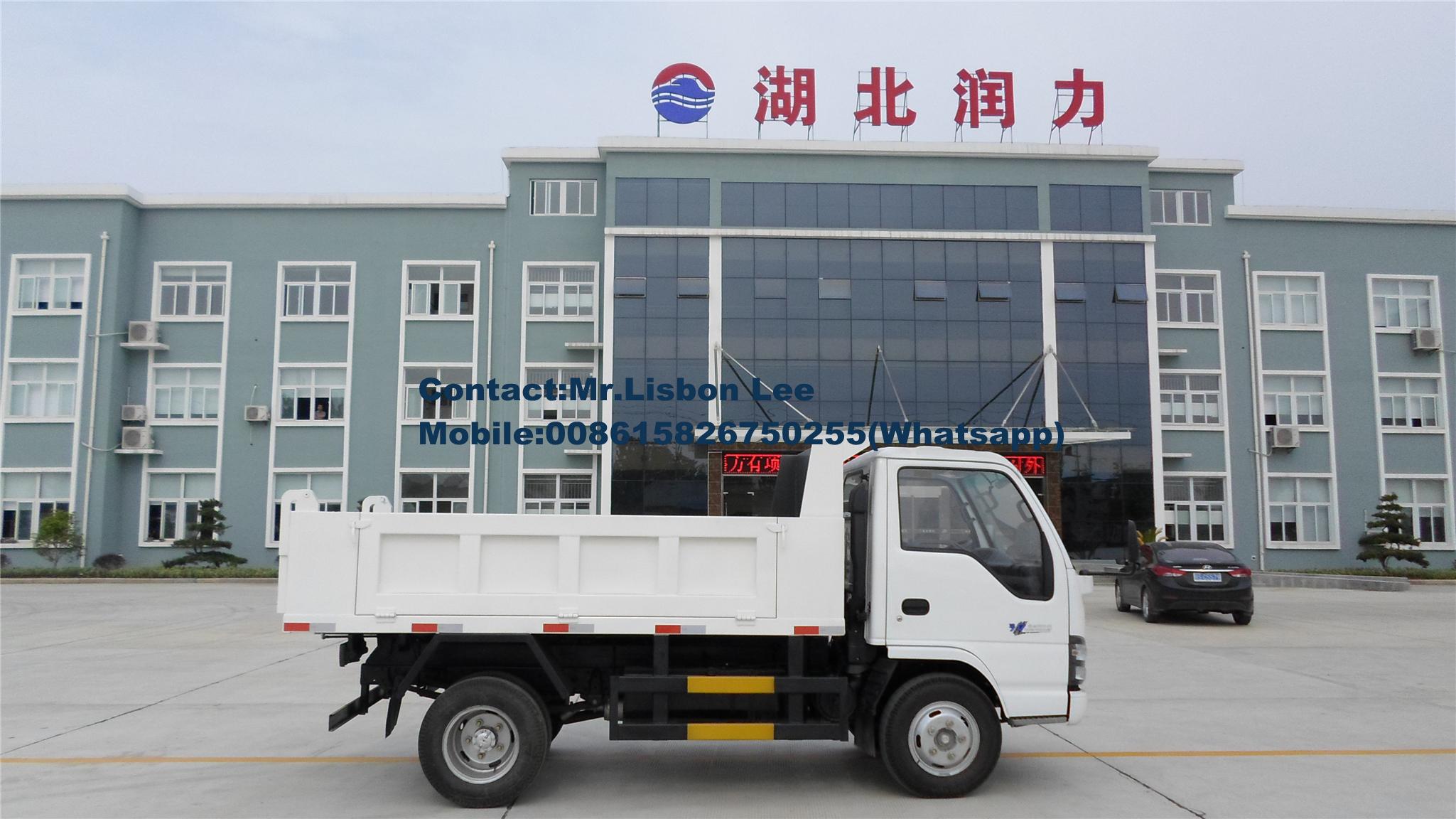

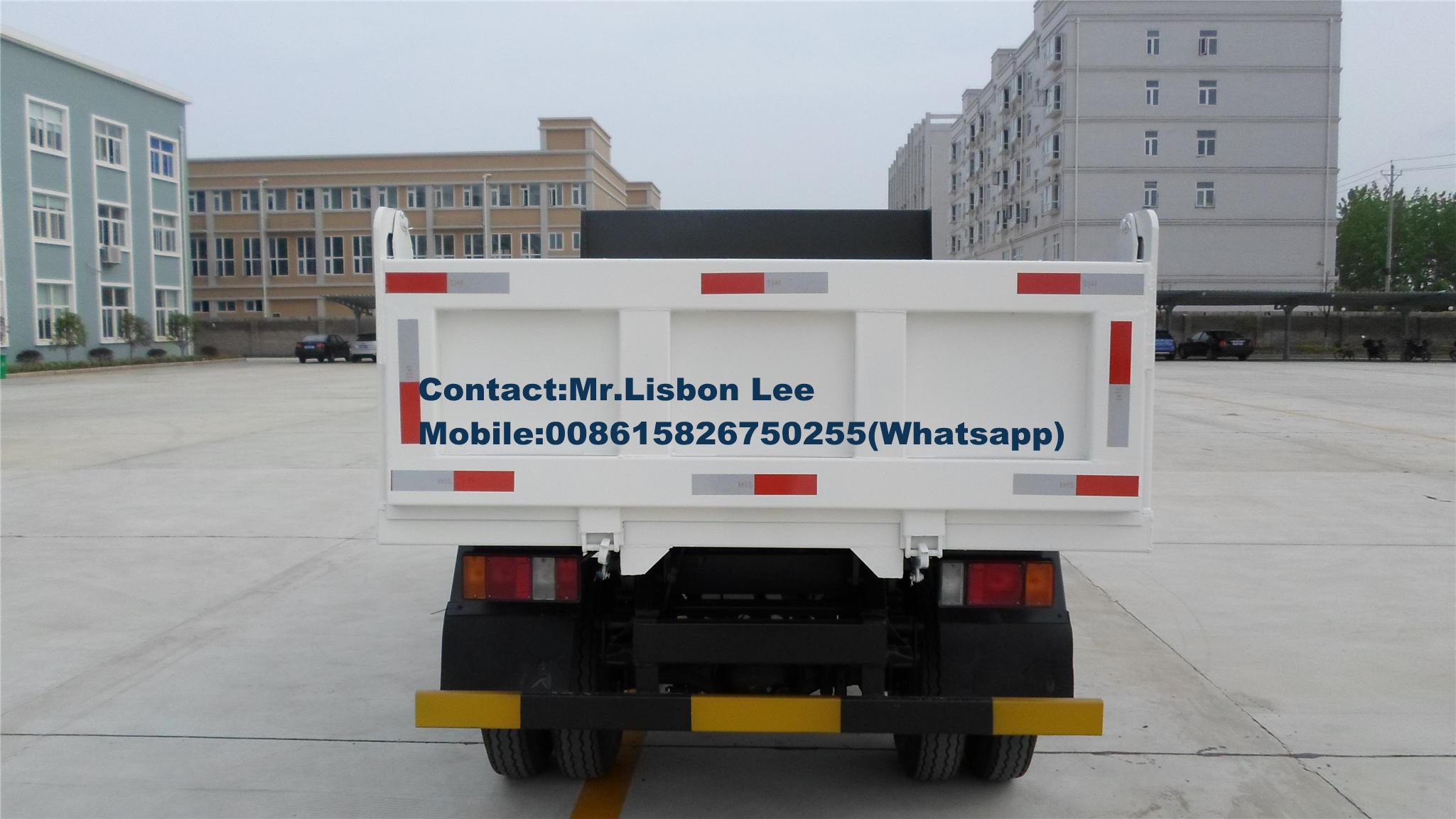

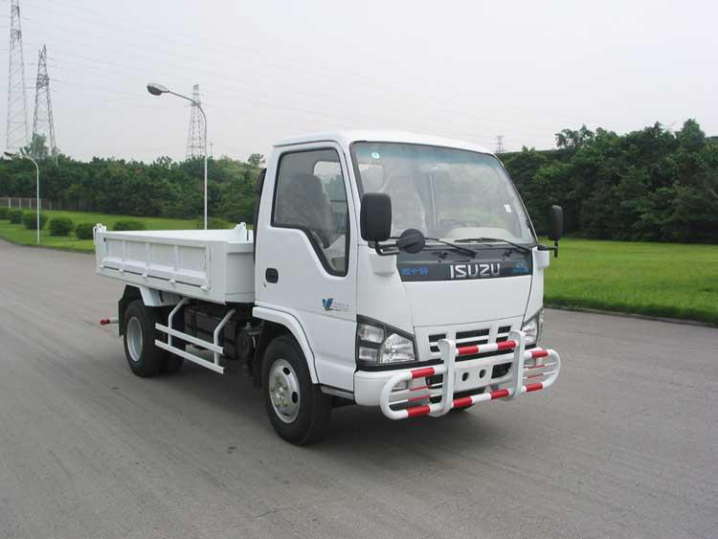

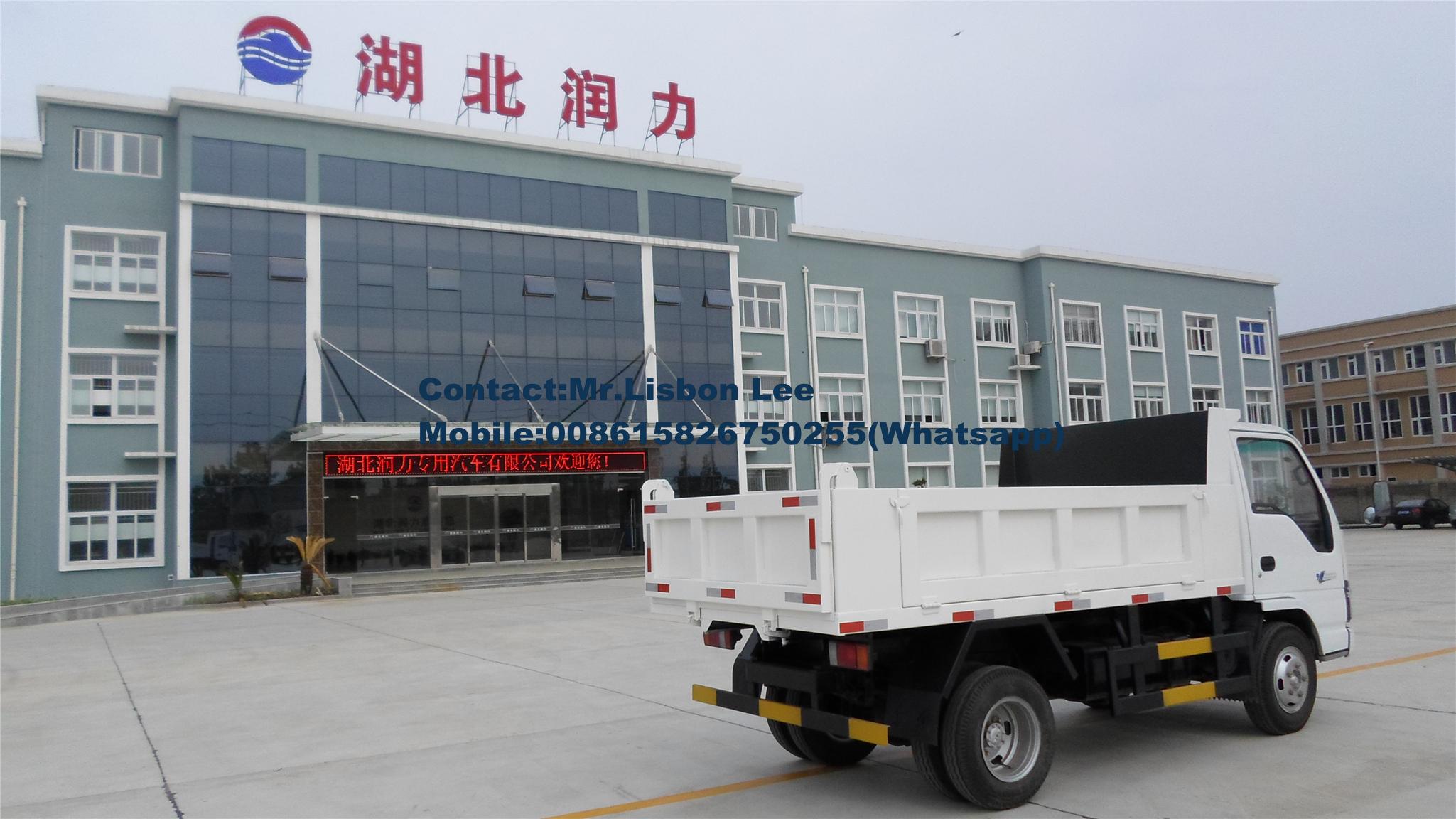

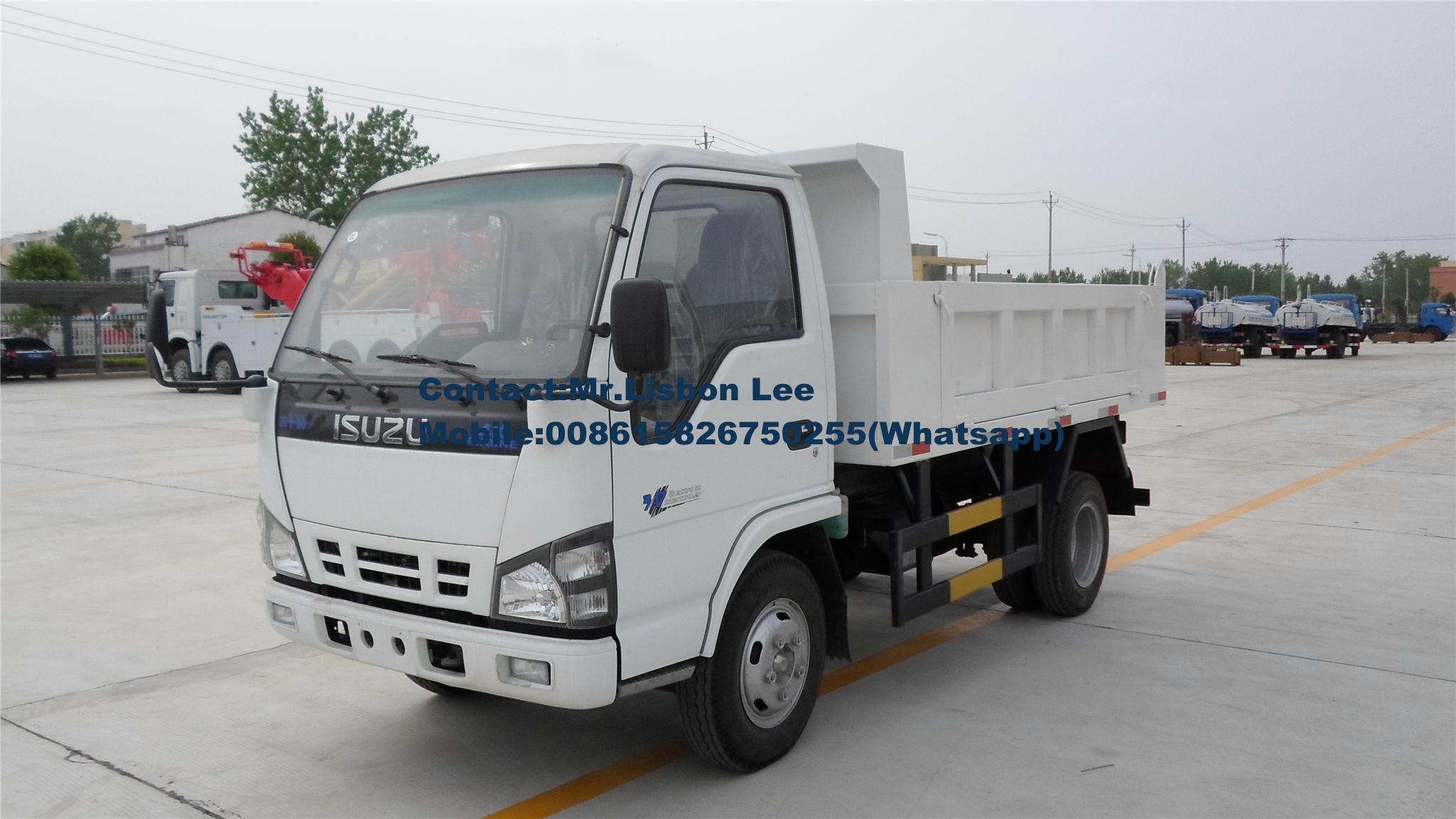

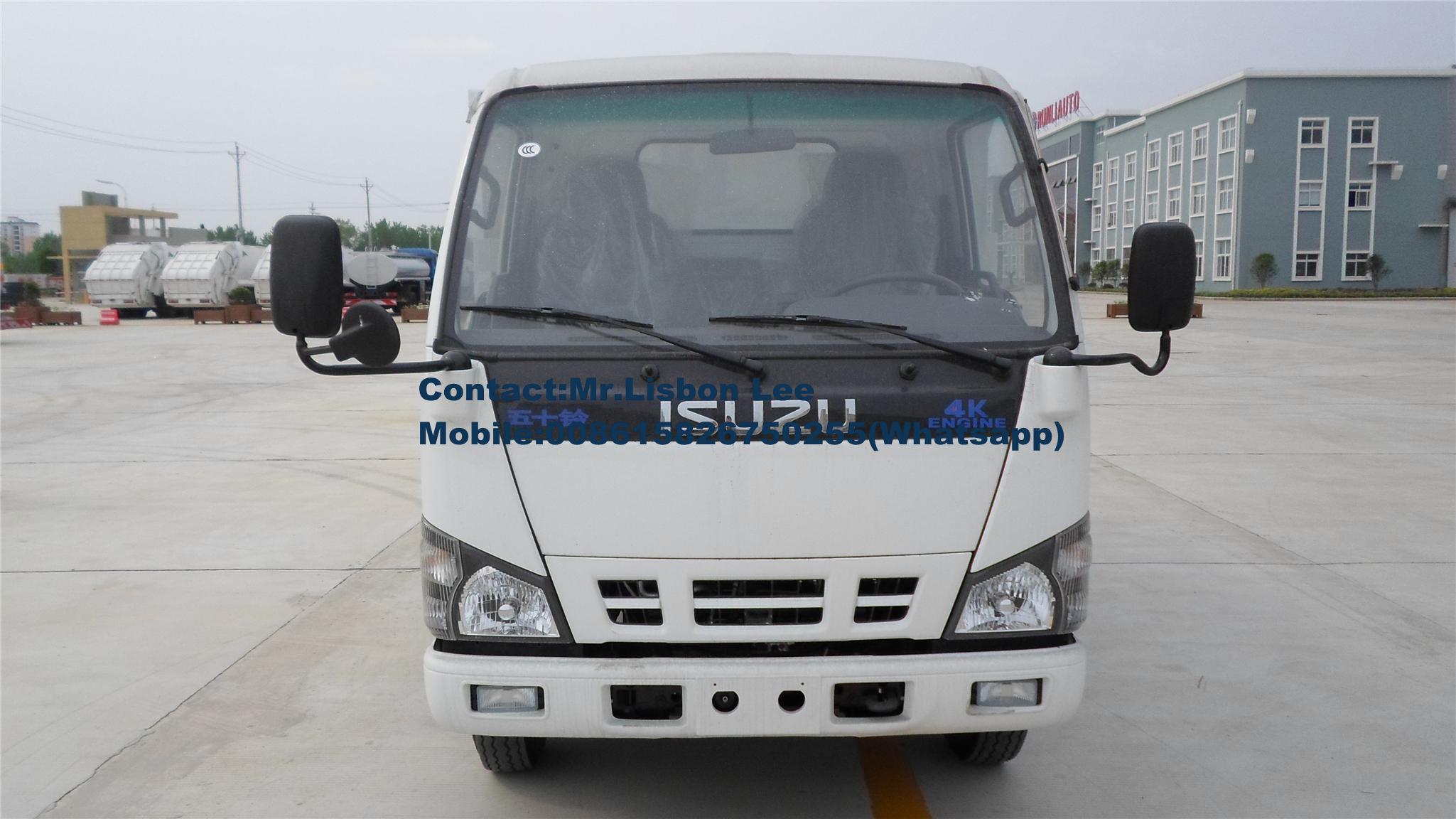

ISUZU Dump Truck 6Ton

Chassis Model

QL1070A5FAY

Main dimension

Overall dimension(mm)

5035×1945×2180

Dimension of dump box(mm)

3260×1780×380/600

Drive Type

4X2 Left hand drive

Wheel base (mm)

2765

Wheel track(front/rear)(mm)

1504/1425

Weight data

Curb weight(kg)

2950

Rated payload(kg)

3500

Actual max.load capacity (kg)

6000

Gross vehicle weight(kg)

6990

Engine

Model

4KH1CN5HS

Description

4 cylinder in-line with water cooling & turbo charged,inter-cooling diesel engine

Displacement(L)

2.999

Power(kw/HP)

96/130

Maximum Torque(N·m)

280

Gearbox

Brand

ISUZU

Model

MSB 5-speed gear box, 1 reverse gear

Axles

Front axle

2.5Tons

Rear axle

4.8Tons

The others

Cabin

Single row,two doors,luxury type,with power steering,air conditioner,radio,USD

Brake

Hydraulic brake system

Wheels and tyre size

6+1/7.00R16

Number of spring plate

8/6+5

Front /rear overhang(mm)

1015/1255

Approach/departure angle(°)

20/12

Max.speed(km/h)

105

Frame section(mm)

172*65*4+3

Reinforced bumper

Optional (+150 USD)

Lift system

Hydraulic middle lift

Thickness of box

Side 3mm,bottom 4mm

Material of box

WISCO Carbon Steel Q235
