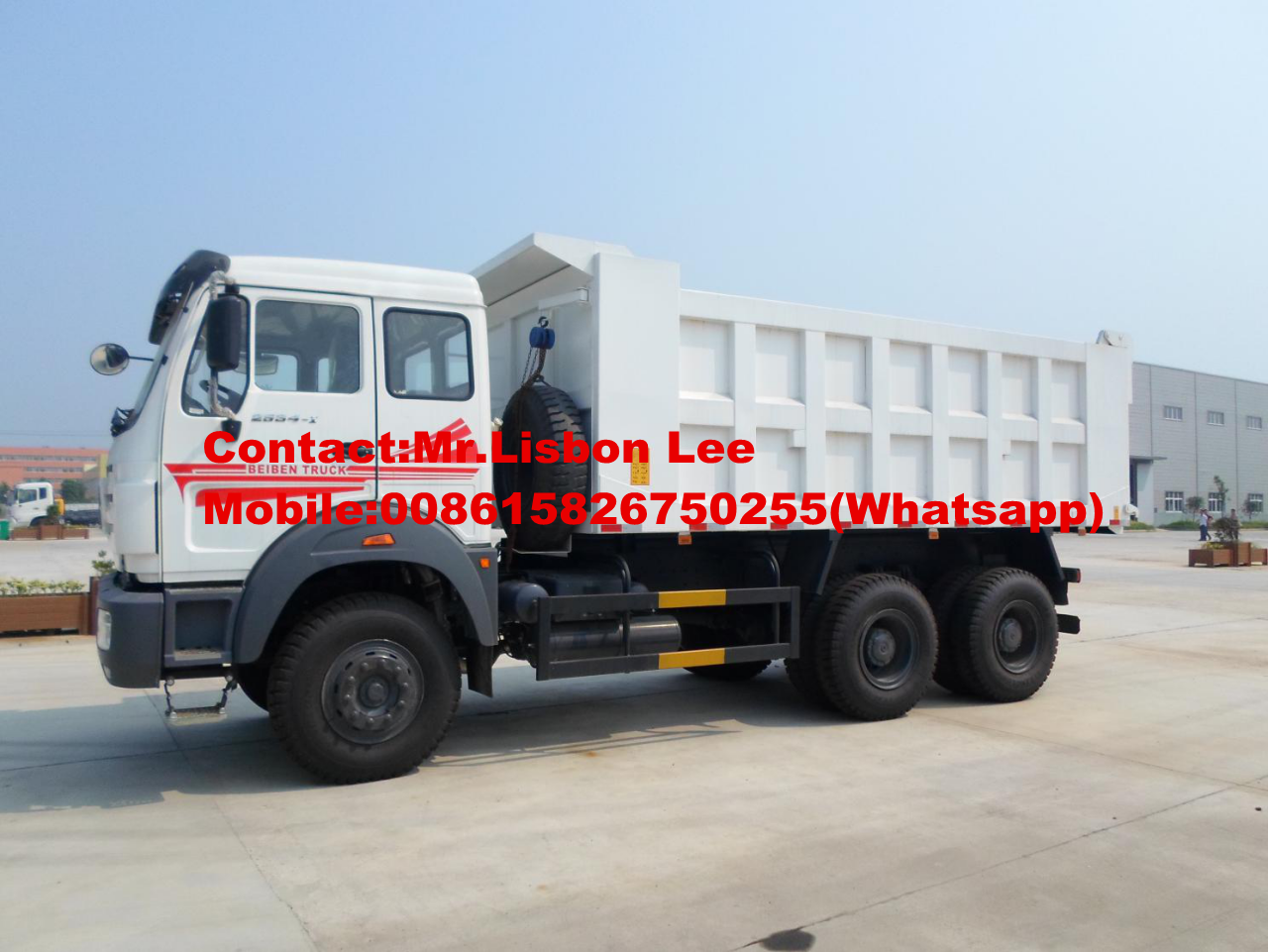

Product brand |
BEIBEN |
|
Chassis model |
ND3251B38J |
|
Overall dimension |
8450x2500x3310 |
|
Dimension of box |
5600x2300x1400 |
|

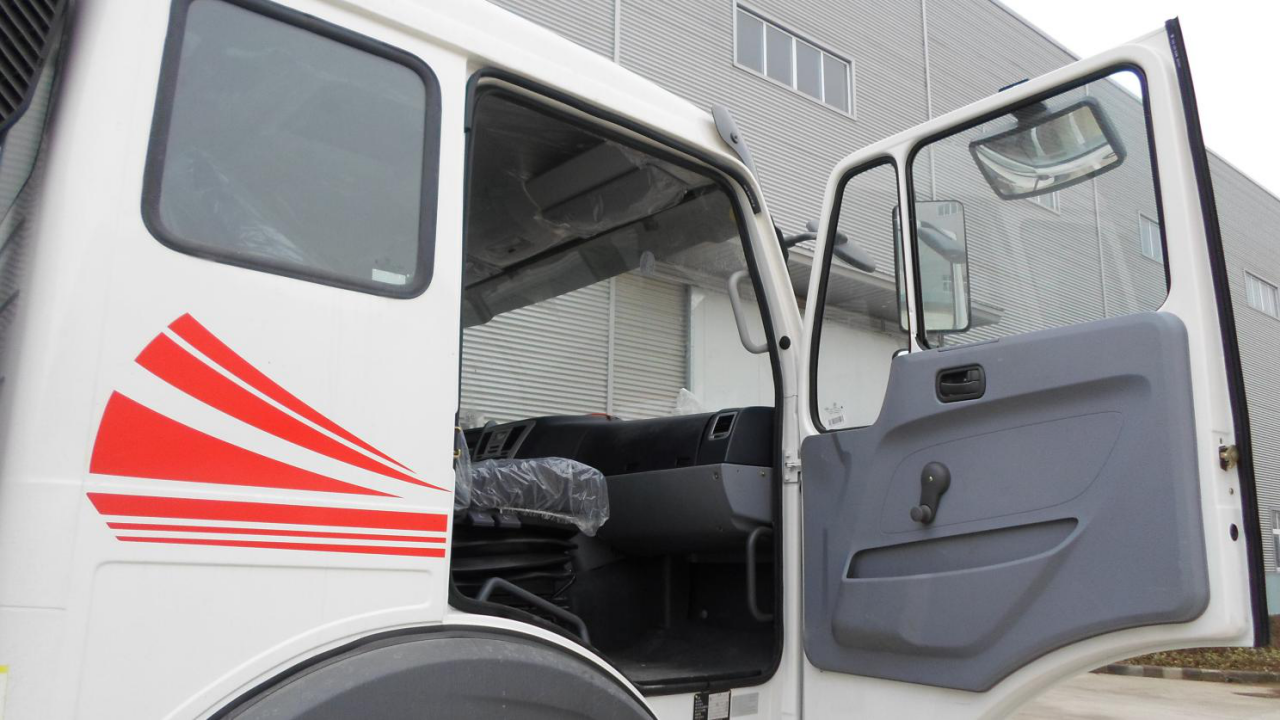

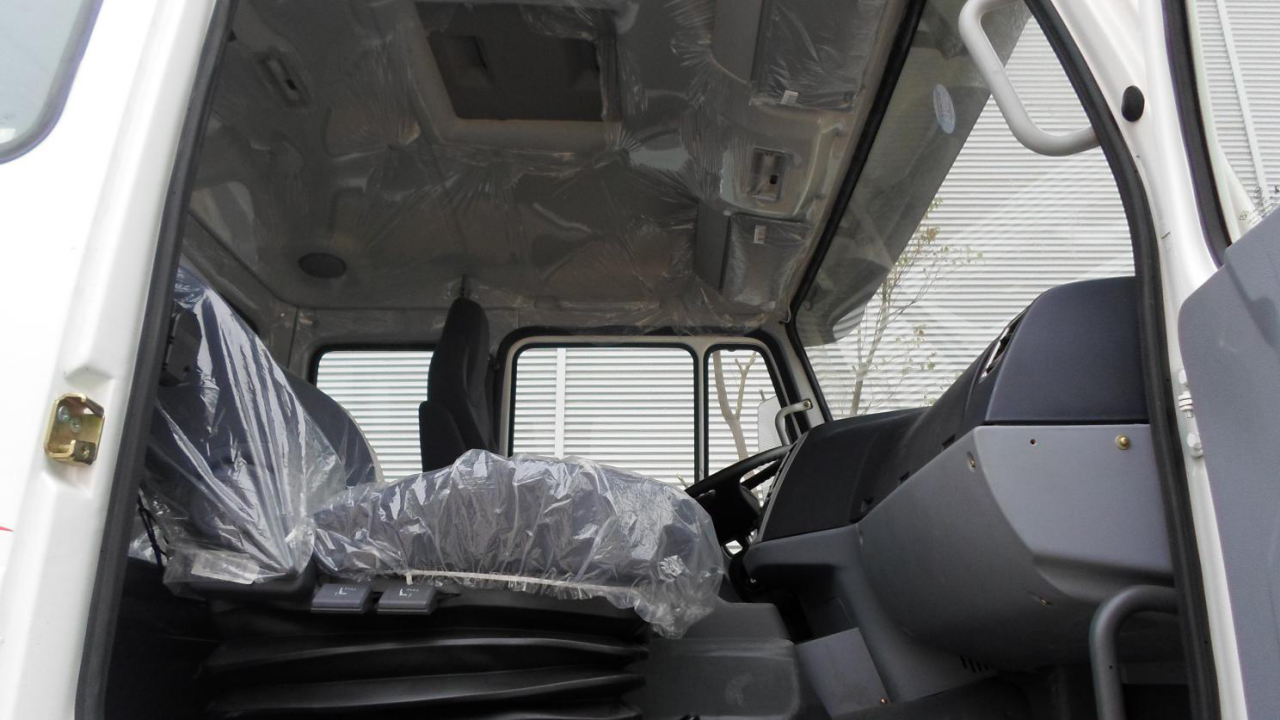

Cabin |

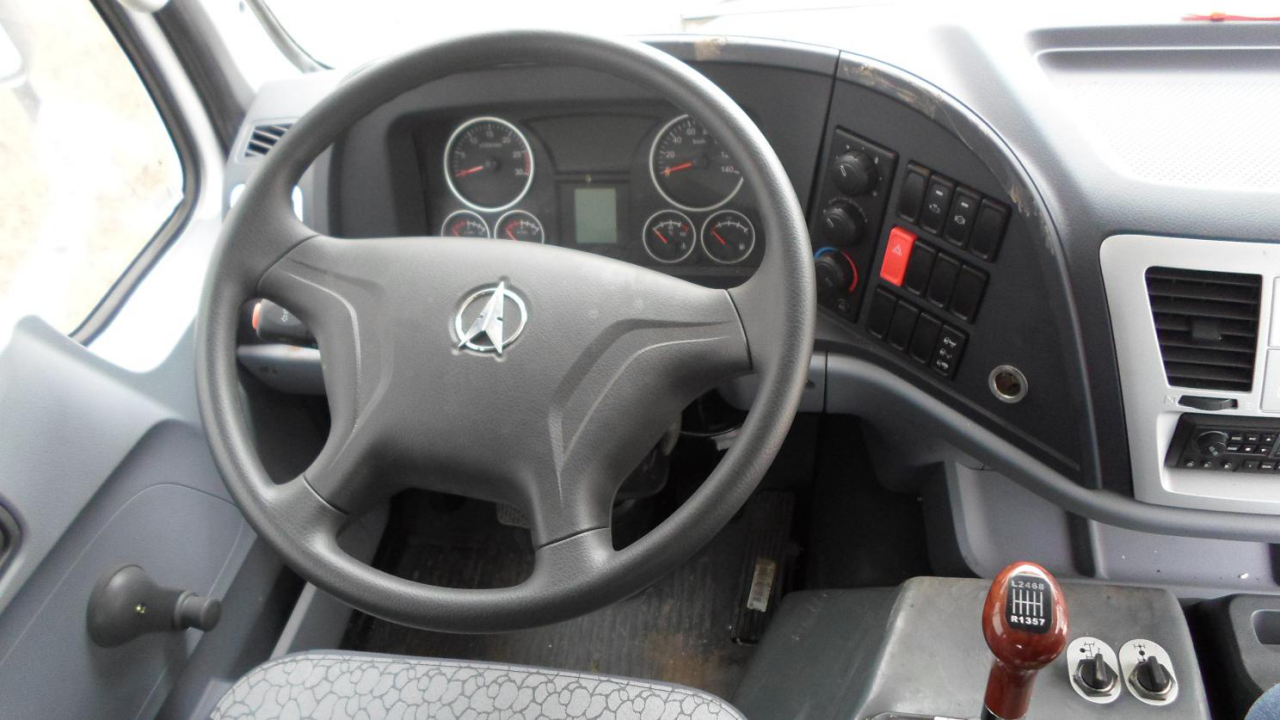

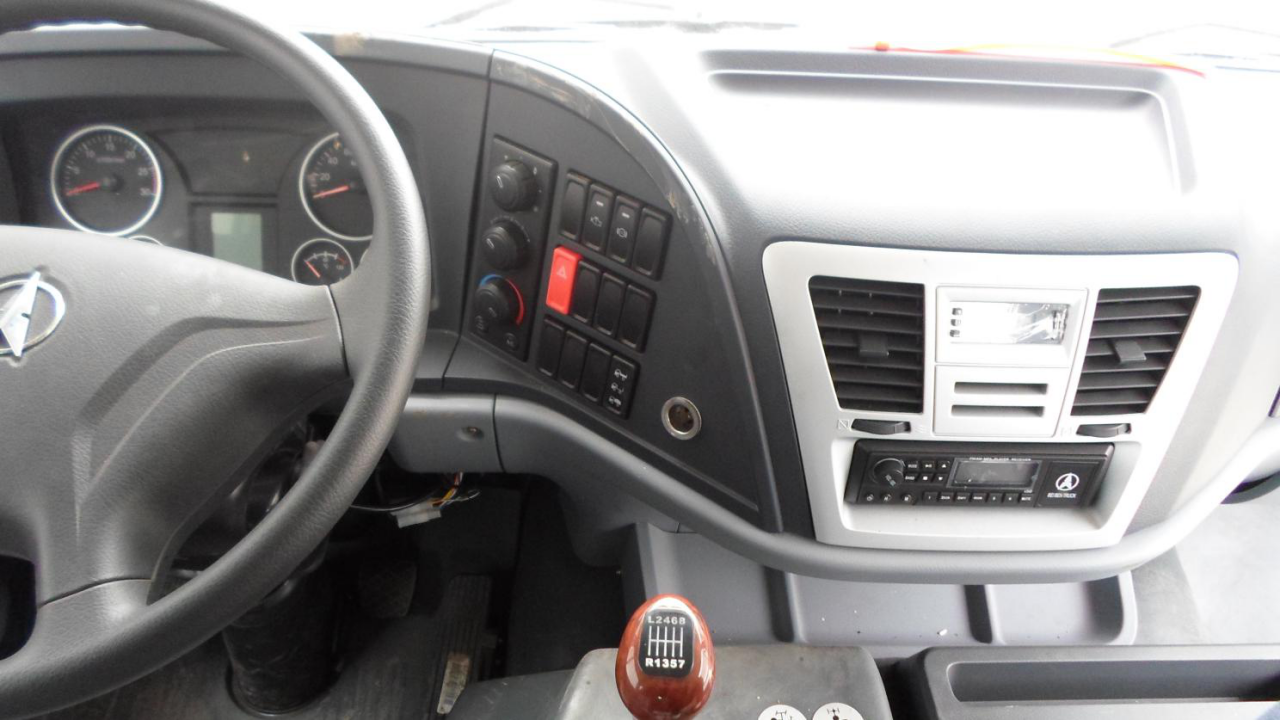

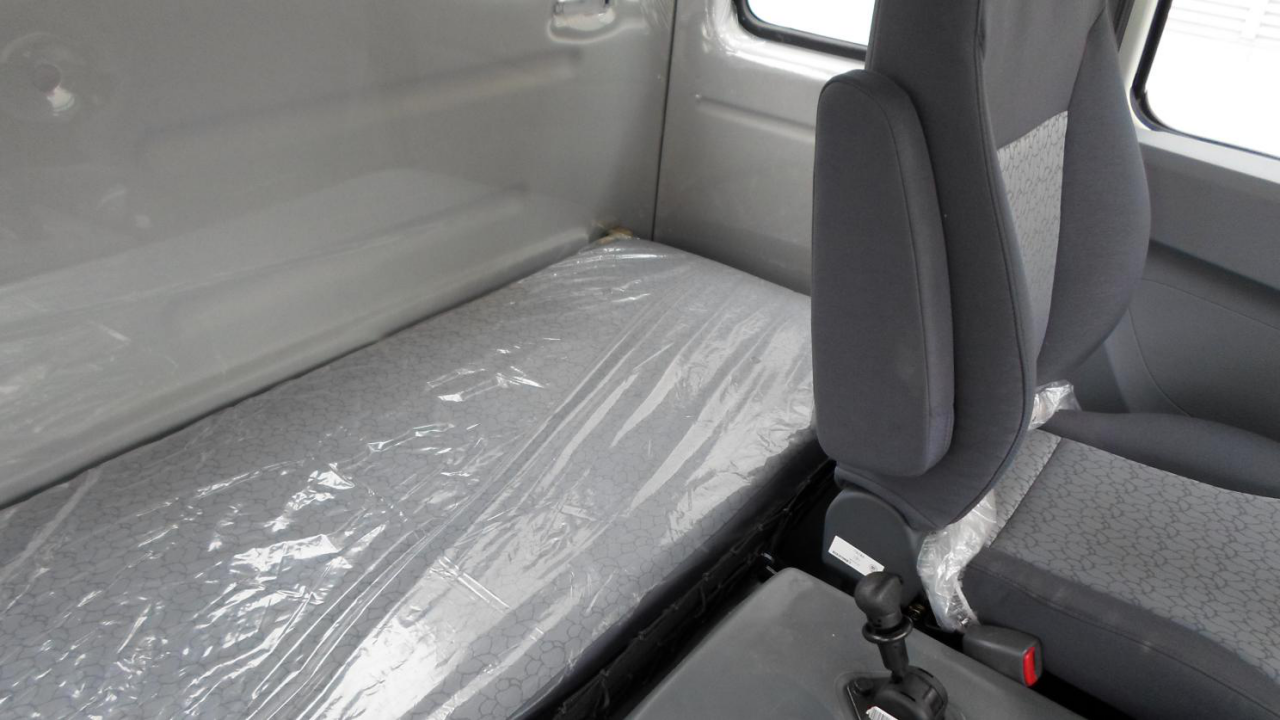

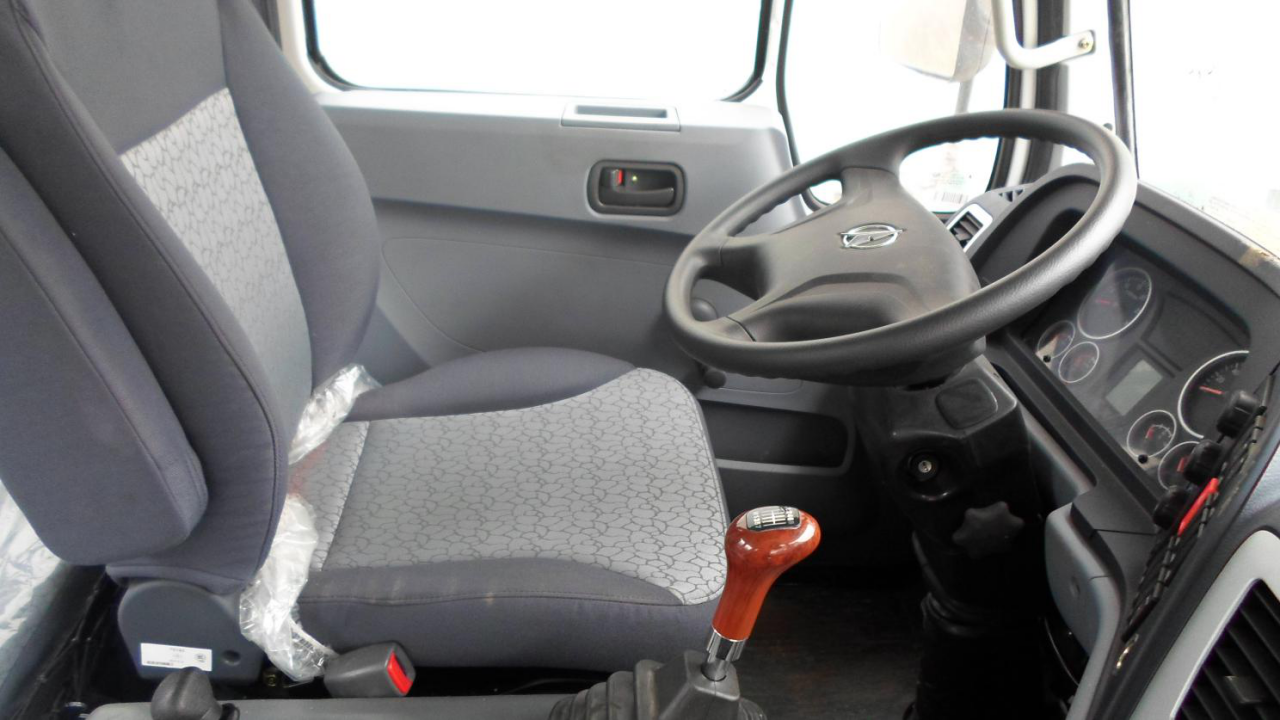

NG80,long cabin,two seats,with one sleeper, full steel structure BENZ cab, with air conditioner,adjustable steering,air driver seat, sun cover. |
|
Parameters |
Total Mass(kg) |
25000 |
Payload(kg) |
12470 |
|
Kerb Mass(kg) |
12400 |
|
Max speed(km/h) |
85 |
|
Engine |
Model |
WP10.290E32 |
Displacement(ml) |
9726 |
|
Emission level |
Euro 3 |
|
Max.power(kw/HP) |
213/290 |
|
Max.torque(N.m) |
1160@1200~1600r/min |
|
Description |
In-line, 6 cylinders,4 strokes,turbo charged,water cooled,inter cooled,direct injection,diesel engine |
|
Manufacturer |
Weichai Holding Group Co., Ltd. |
|
Steering system |
Description |
TAS85-LHD,power assisted |
Gear box |
Description |

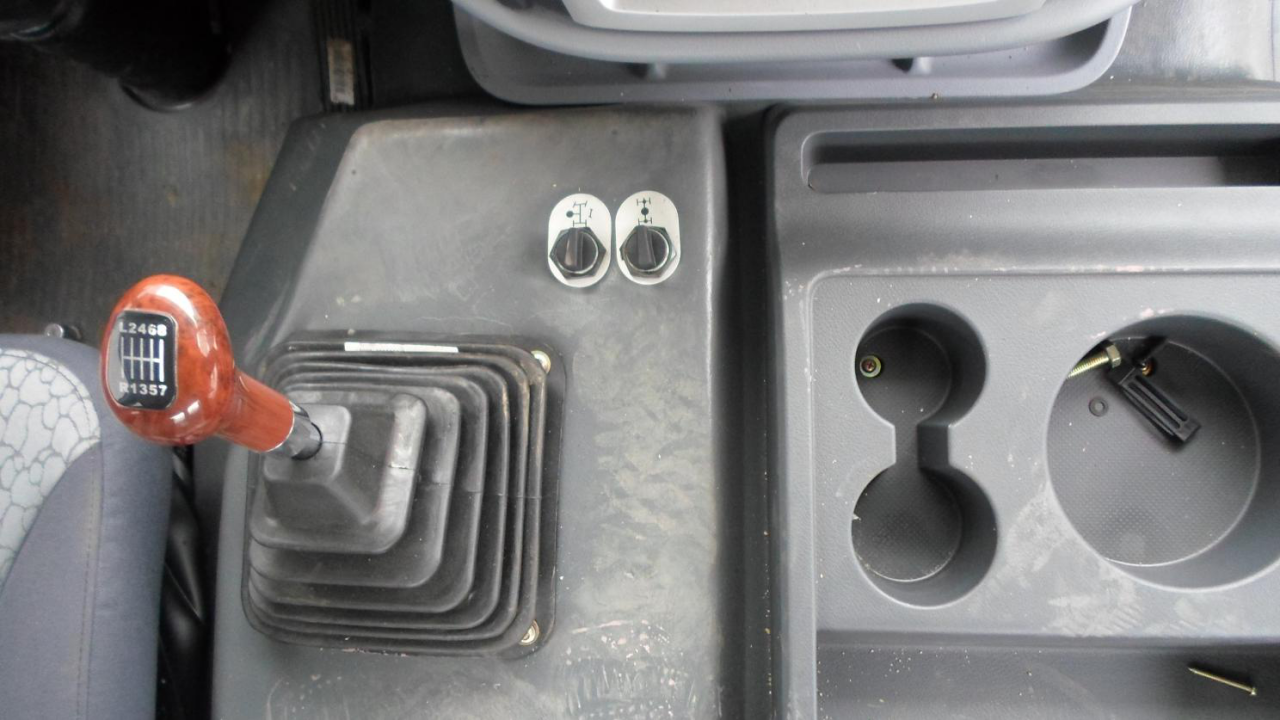

FAST manual ,9JS135, 9 forward gears &1 reverse gear |
Clutch |
Description |
D430 diaphragm type,single dry frictional disc,hydraulic boosting. |
Axle |
Front axle |
7.5Ton non-driving steering BENZ axle |
Rear axle |
13Ton BENZ driving axle, hub redactor, double reduction |
|
Brake system |
Service brake |
Double circuit pneumatic (air) brake |
Parking brake |
Spring-Power drum brake |
|
Engine brake |
Engine exhaust brake(EVB) |
|
Electric system |
Operating voltage |
24V negative grounded |
Starter |
24V,5.4KW |
|
Alternator |
28V,1.5KW |
|
Battery voltage |
2X12V/165Ah |
|
Chassis parameters |
Drive type |
6X4 |
Wheelbase(mm) |
3800+1450 |
|
Approach./Departure. angle(°) |
26/32 |
|
F/R suspension(mm) |
1410/1790 |
|
Front tread(mm) |
1995 |
|
Rear tread(mm) |
1800/1800 |
|
Number of the tires |
10 |
|
Tire type |
12.00R20 |
|
Number of the springs |
10/13 |
|
Axle load(KG) |
7000/18000(Tandem) |
|
Cabin passengers |
2 |
|

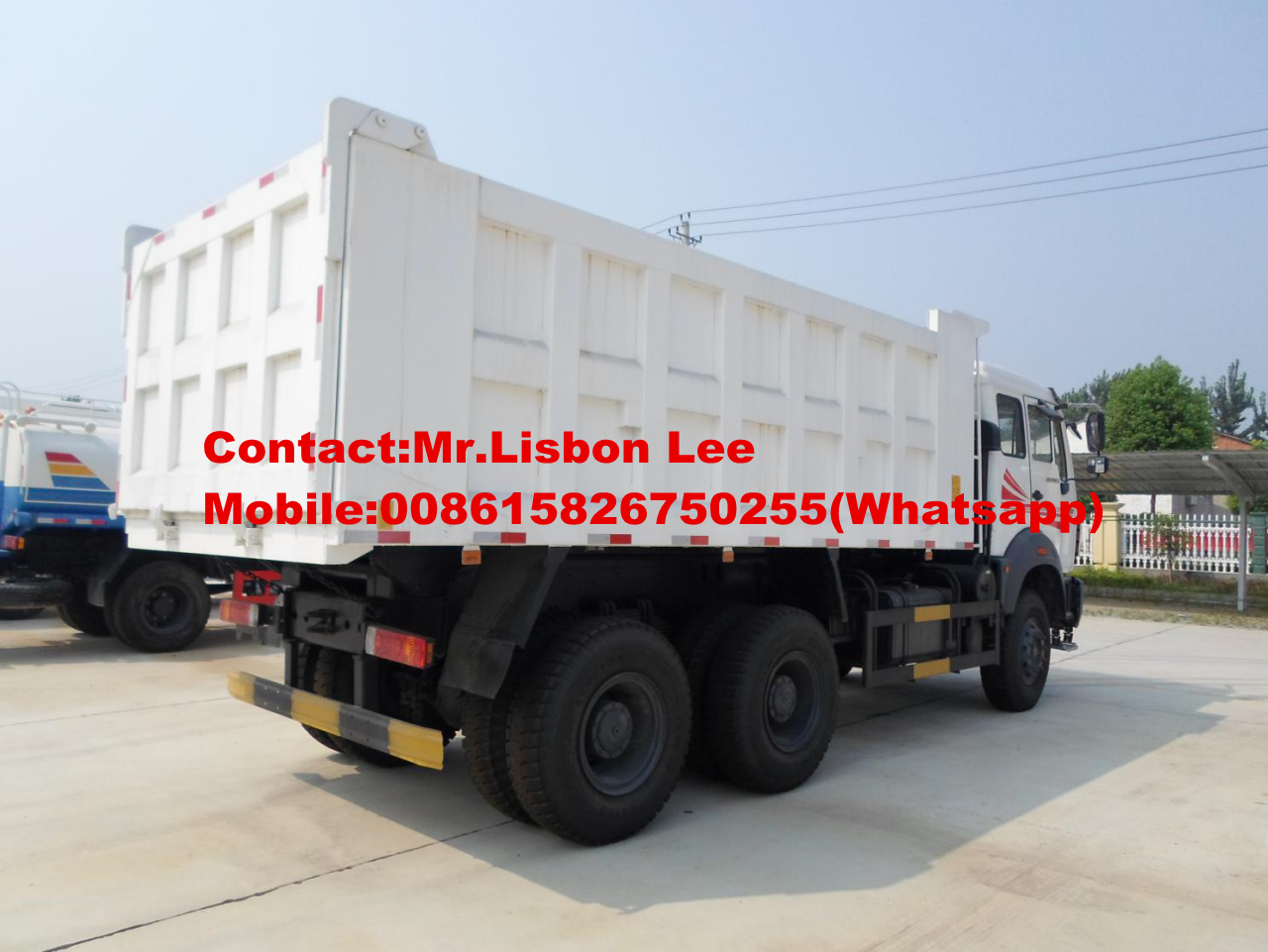

Dump box |
Material |
WISCO carbon steel |
Thickness |
Side 6mm,bottom 8mm |
|
Lifting system |
Front lifting |
