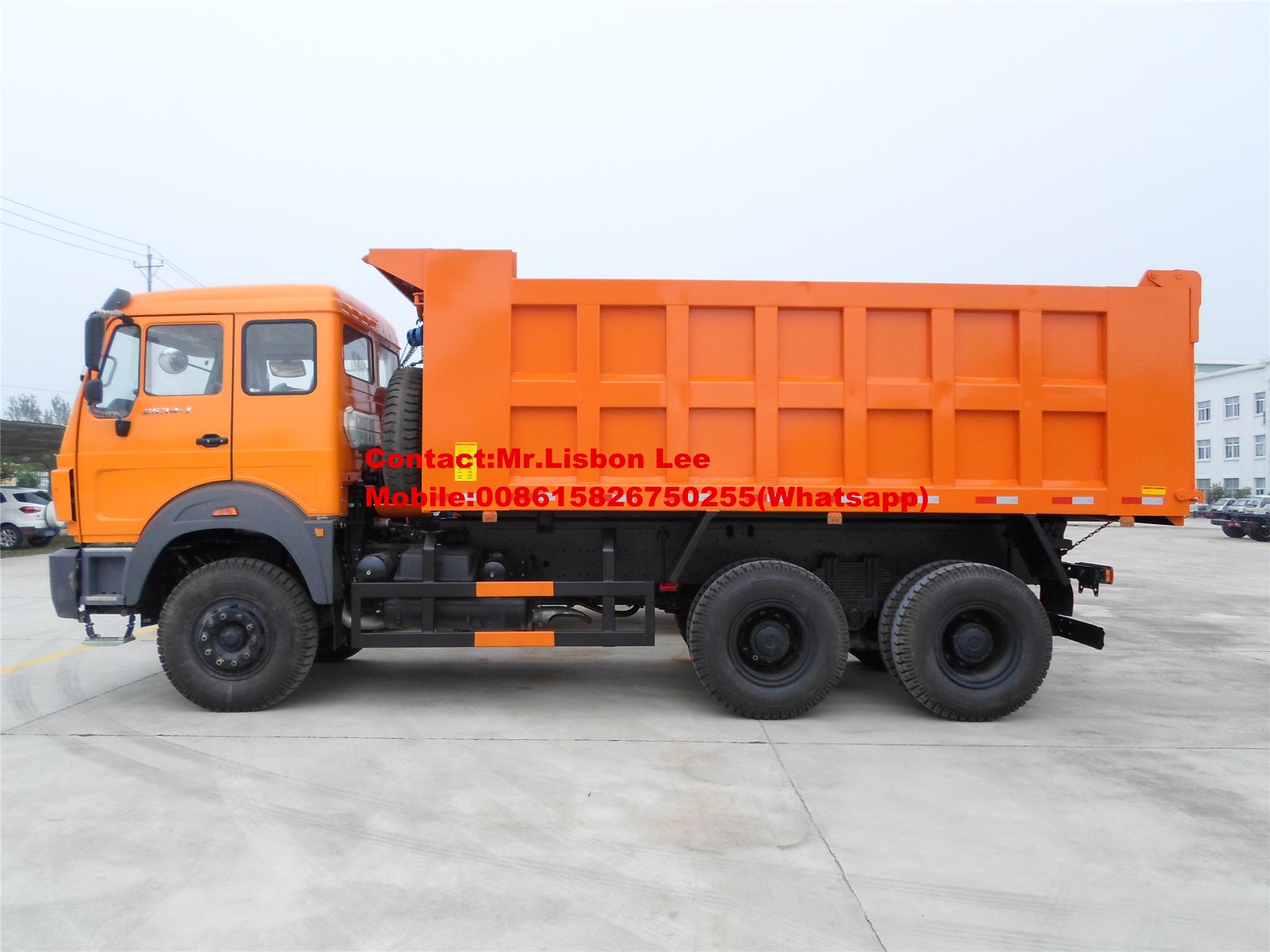

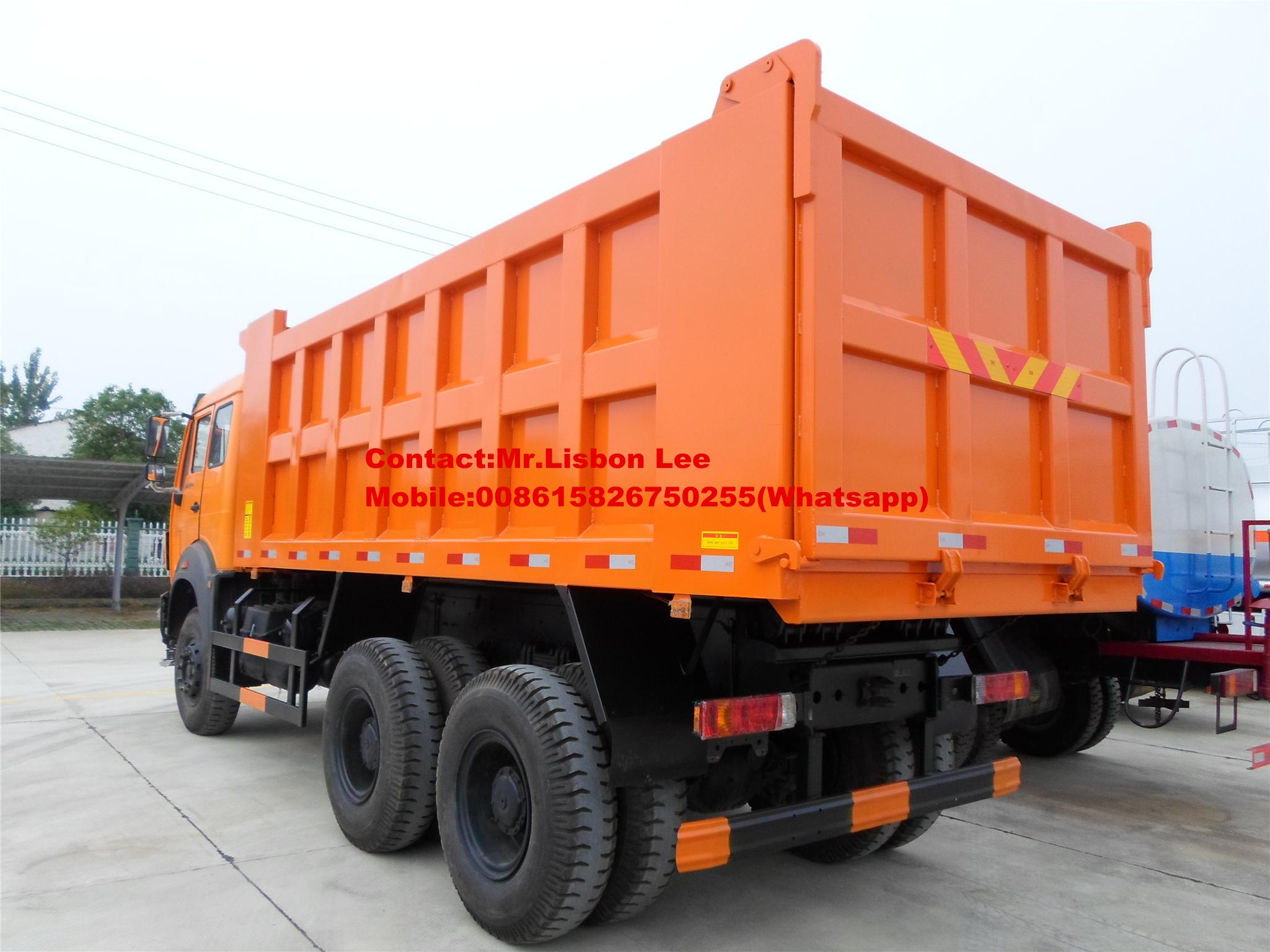

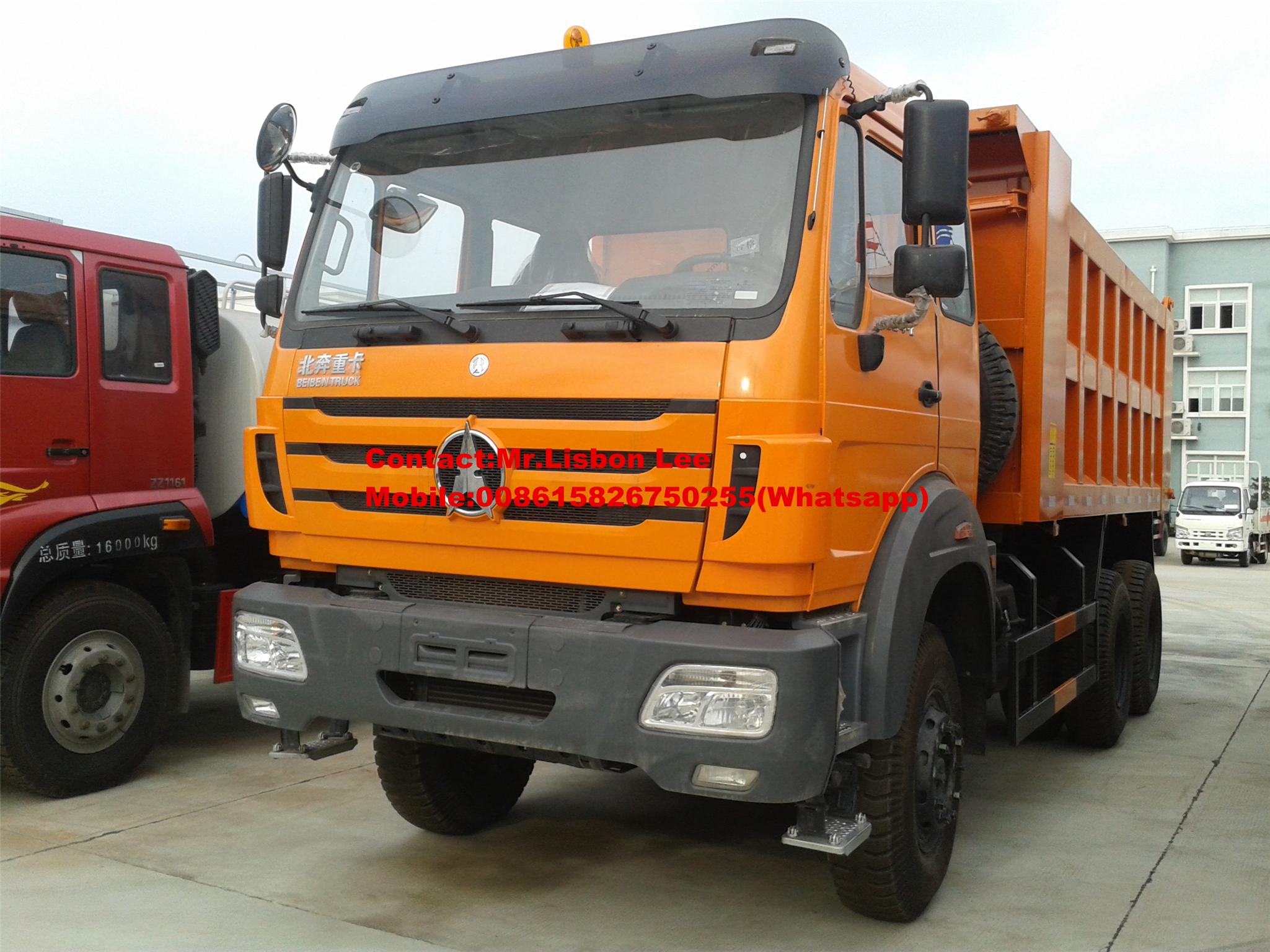

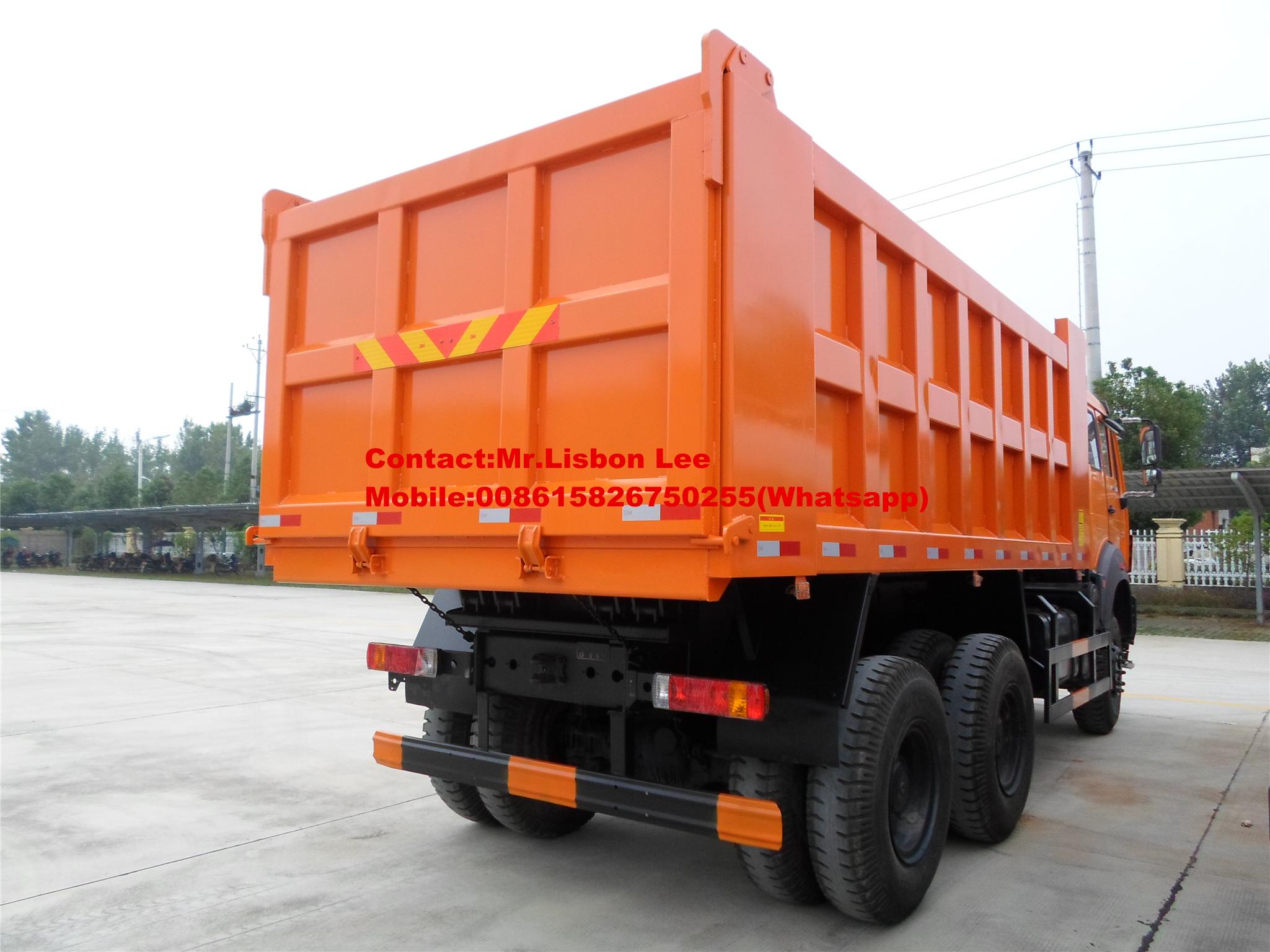

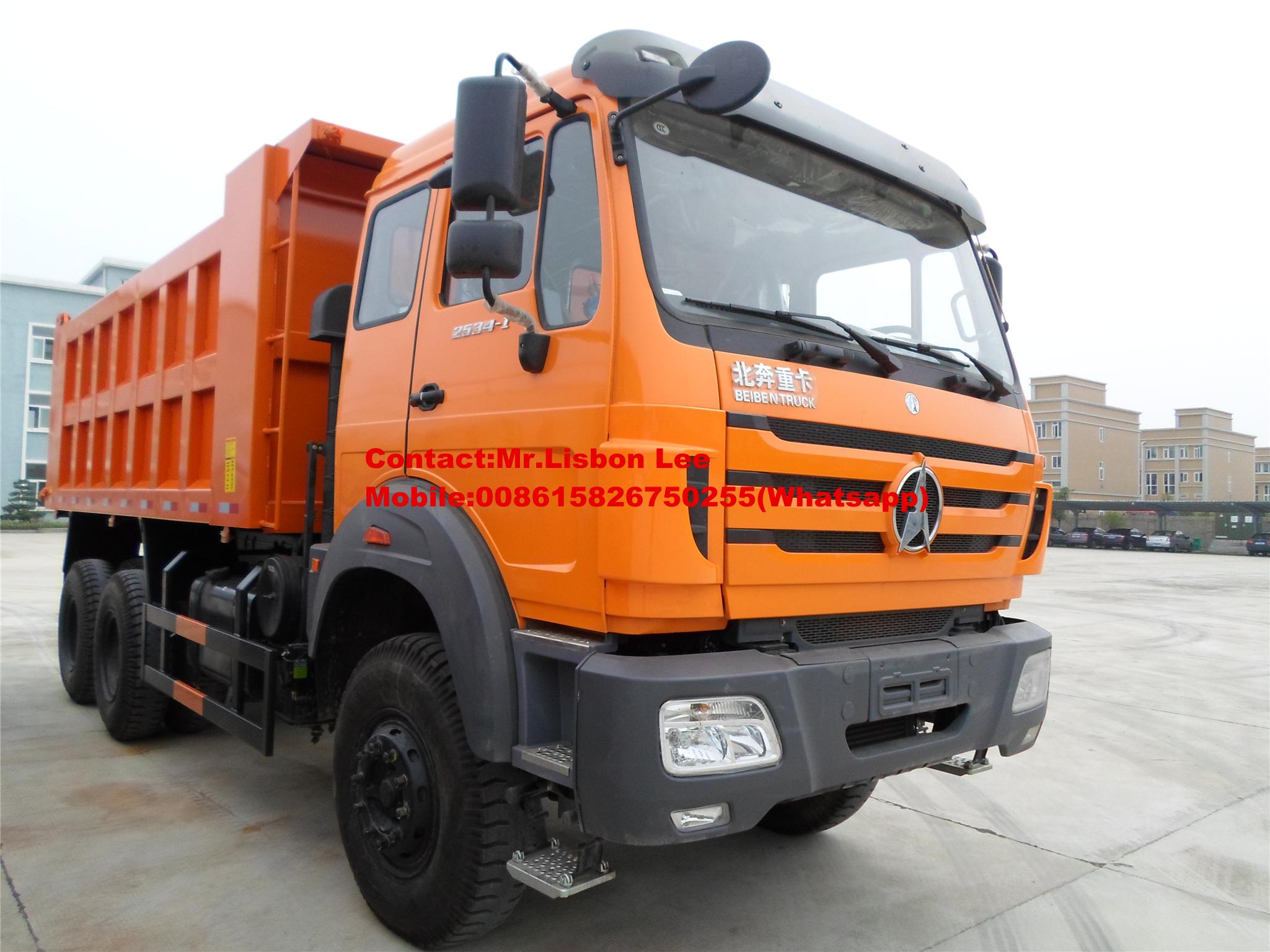

BEIBEN 6X4 Tipper

Product brand

BEIBEN

Chassis model

ND1256B50J

Overall dimension

10576x2500x3430

Dimension of box

8000x2300x1400

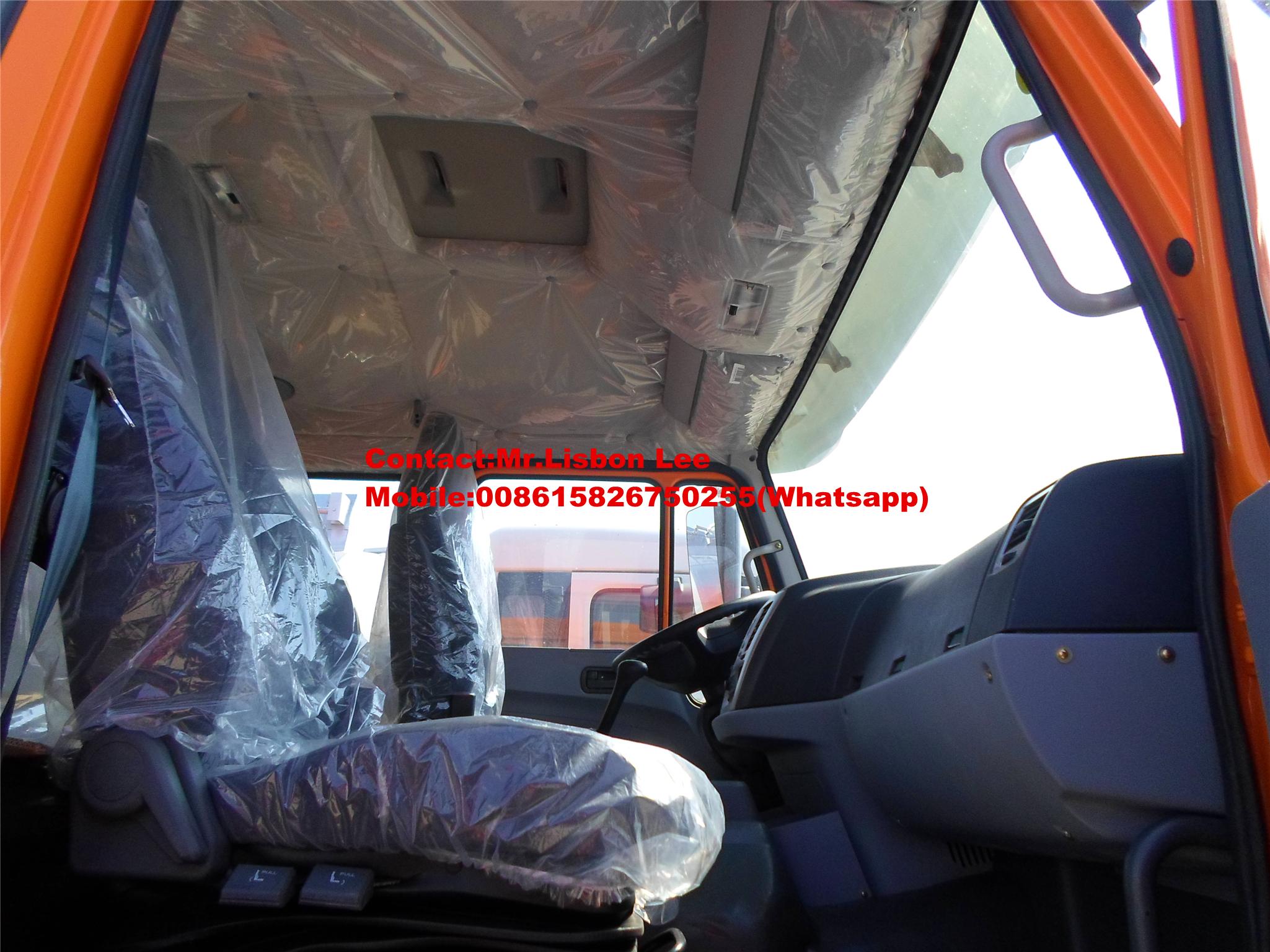

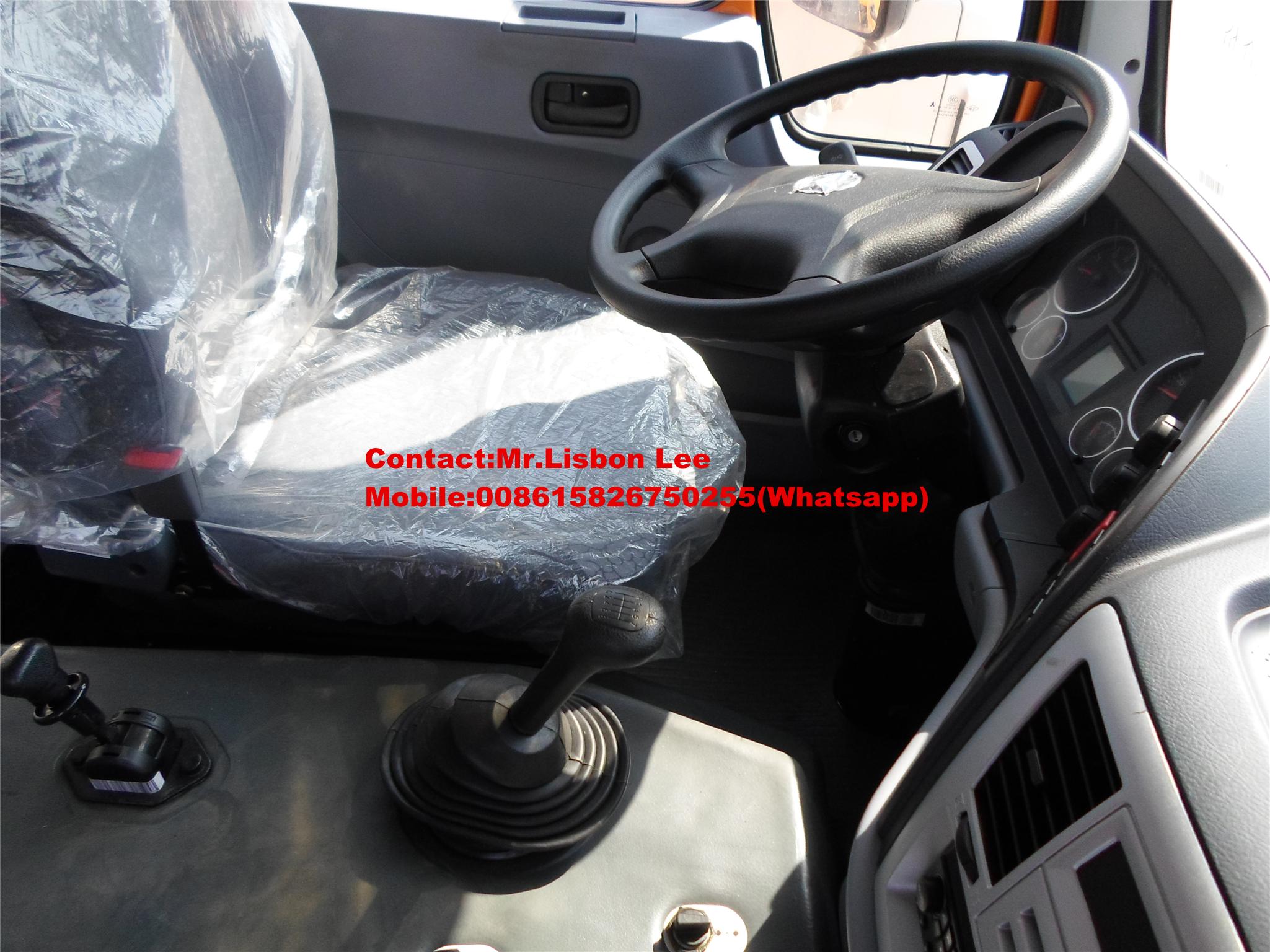

Cabin

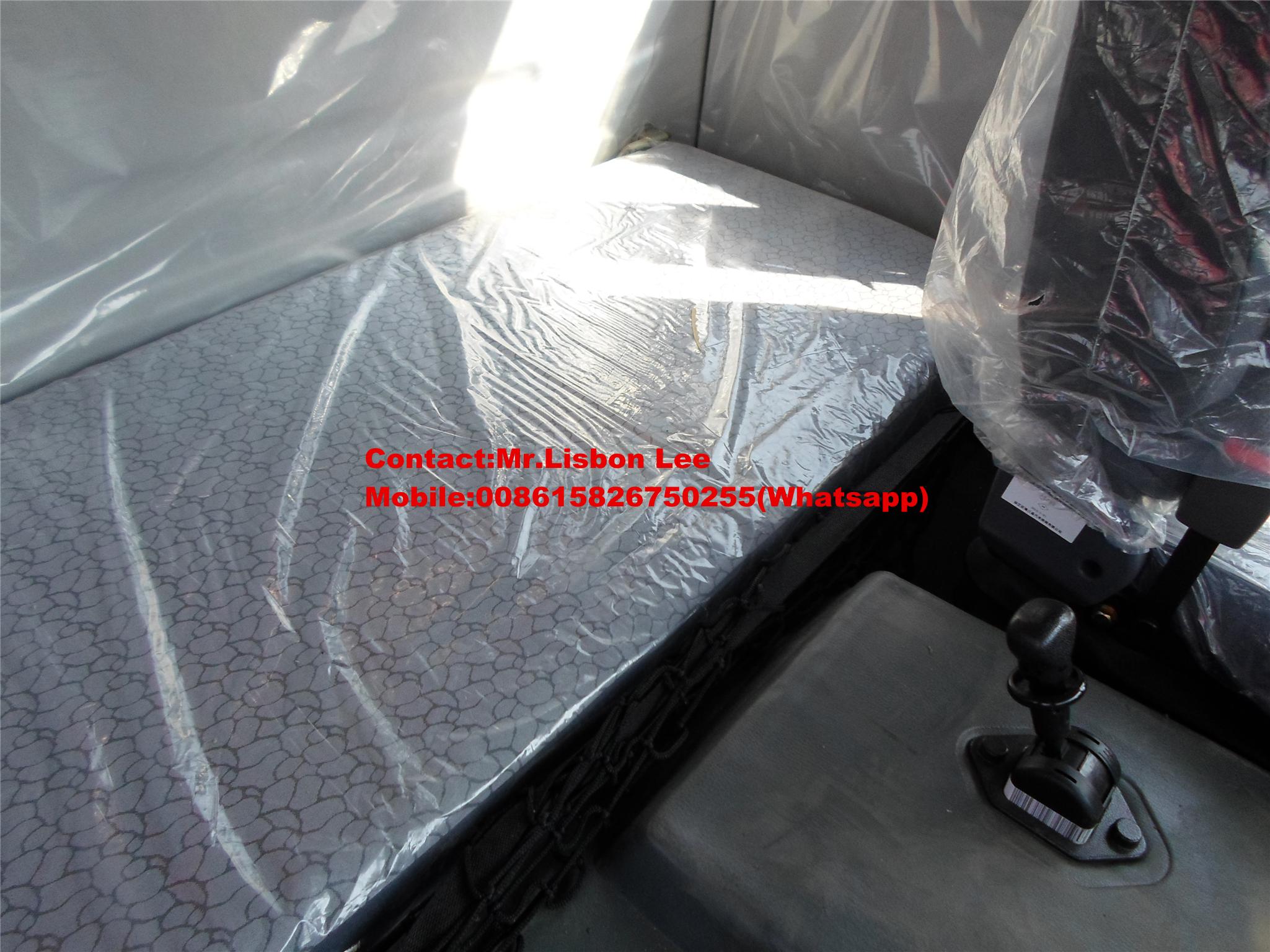

NG80,long cabin,two seats,with one sleeper, full steel structure BENZ cab,

with air conditioner,adjustable steering,air driver seat, sun cover.

Parameters

Total Mass(kg)

25000

Payload(kg)

12470

Kerb Mass(kg)

12400

Max speed(km/h)

90

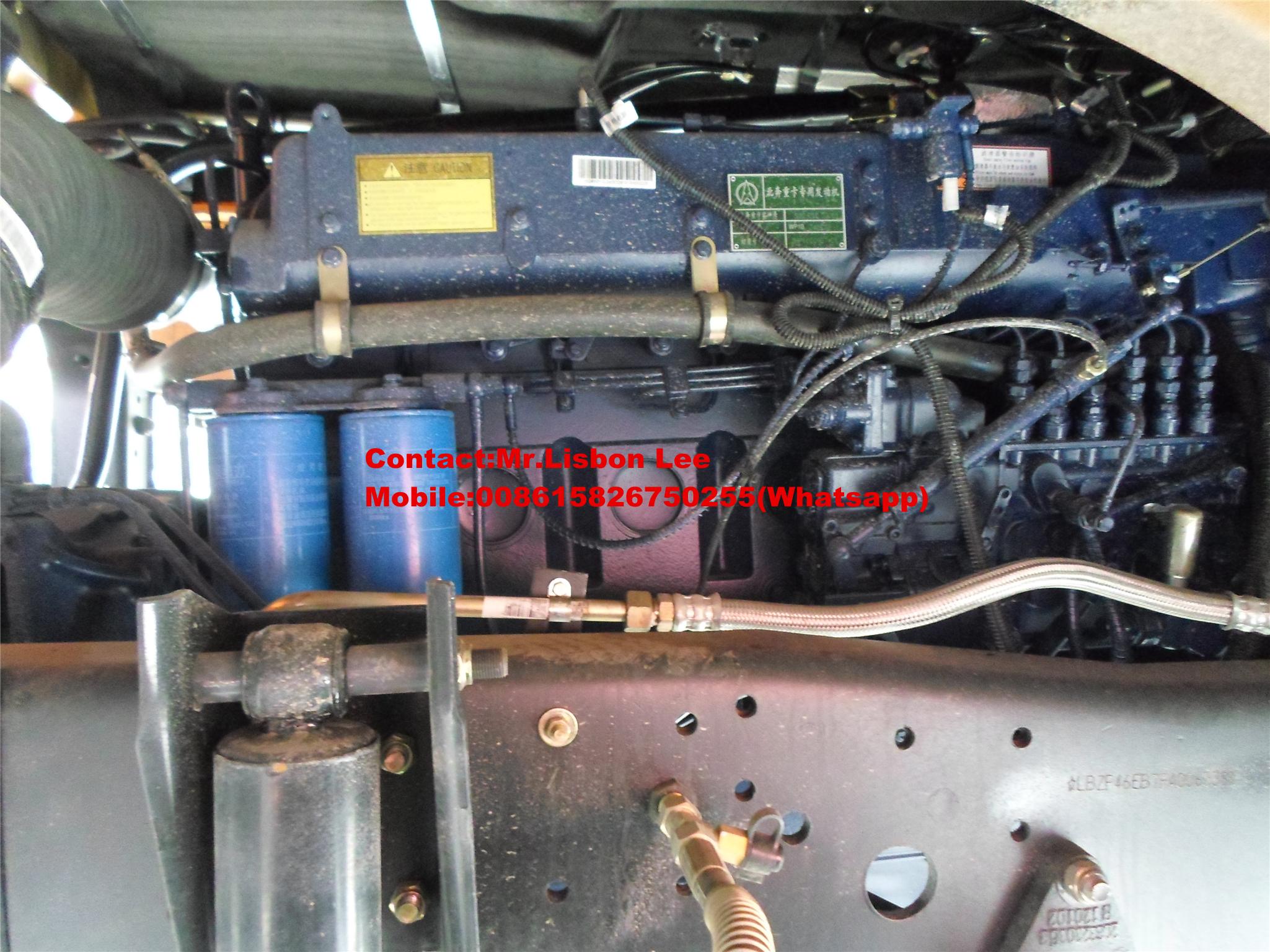

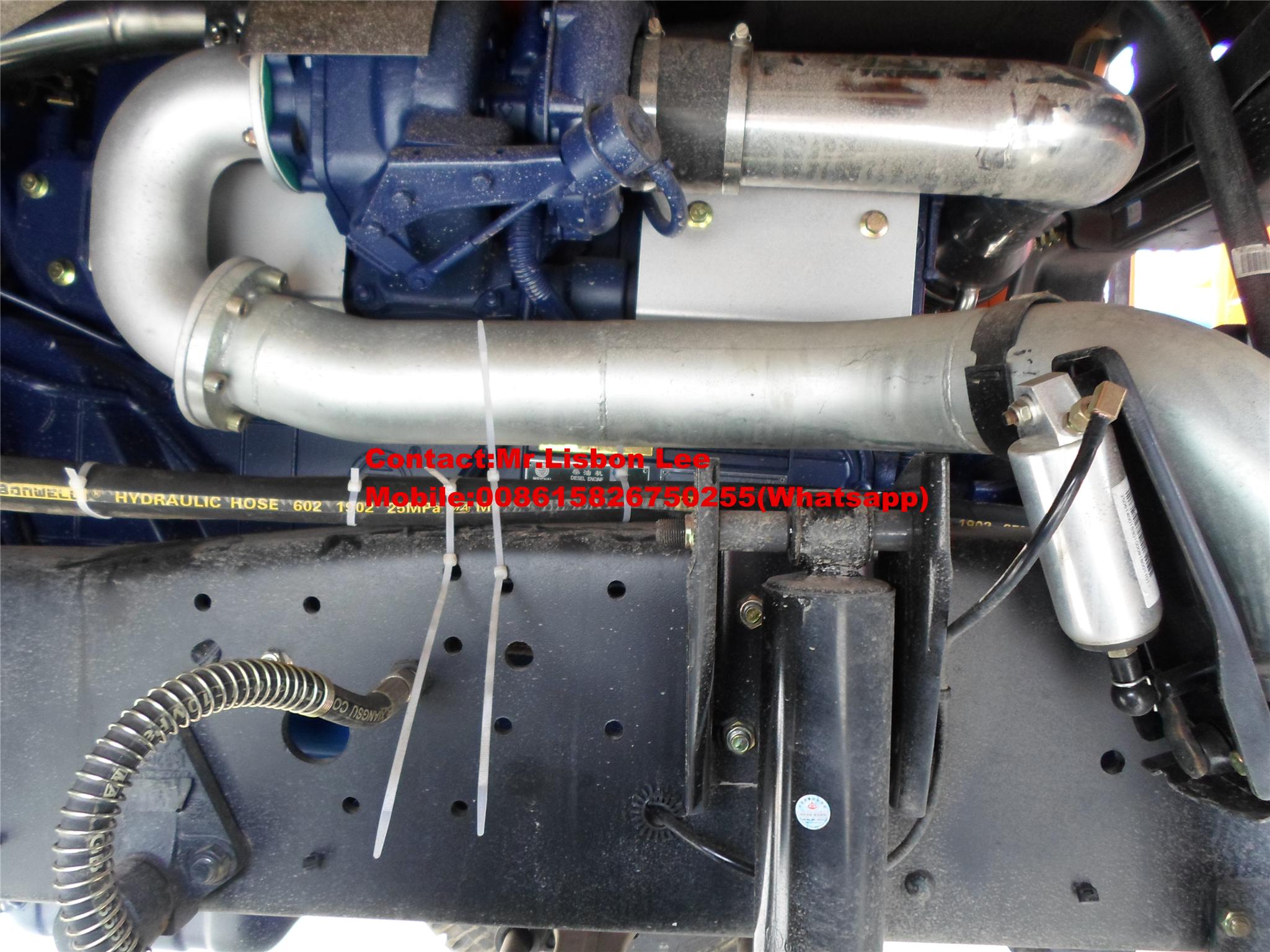

Engine

Model

WP10.290E32

Displacement(ml)

9726

Emission level

Euro 3

Max.power(kw/HP)

213/290

Max.torque(N.m)

1160@1200~1600r/min

Description

In-line, 6 cylinders,4 strokes,turbo charged,

water cooled,inter cooled,direct injection,

diesel engine

Manufacturer

Weichai Holding Group Co., Ltd.

Steering system

Description

TAS85-LHD,power assisted

Gear box

Description

FAST manual ,9JS135, 9 forward gears ＆1 reverse gear

Clutch

Description

D430 diaphragm type,single dry frictional disc,hydraulic boosting.

Axle

Front axle

7.5Ton non-driving steering BENZ axle

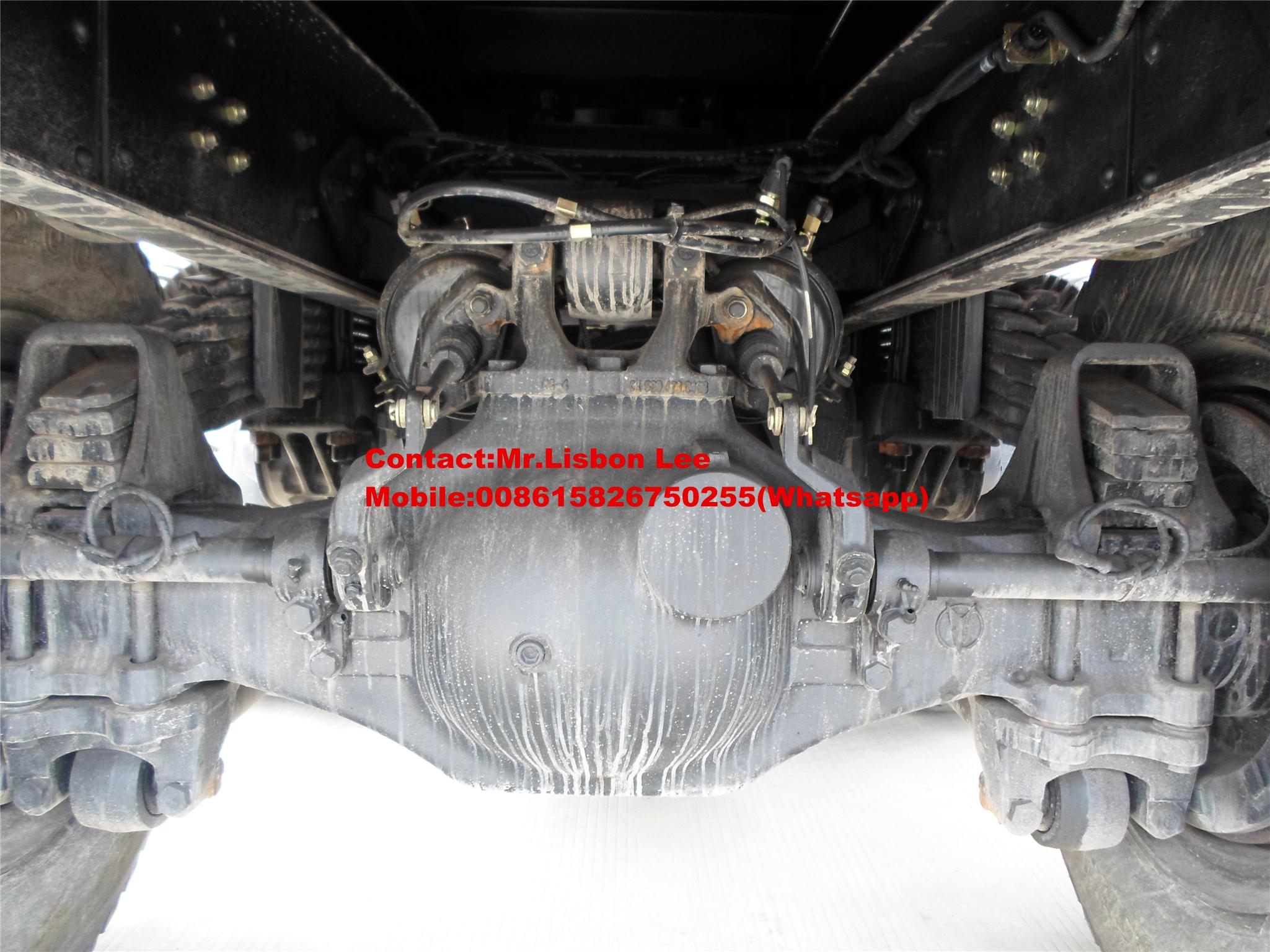

Rear axle

13Ton BENZ driving axle, hub redactor,

double reduction

Brake system

Service brake

Double circuit pneumatic (air) brake

Parking brake

Spring-Power drum brake

Engine brake

Engine exhaust brake(EVB)

Electric system

Operating voltage

24V negative grounded

Starter

24V,5.4KW

Alternator

28V,1.5KW

Battery voltage

2X12V/165Ah

Chassis

parameters

Drive type

6X4

Wheelbase(mm)

3800+1450

Approach./Departure.

angle(°)

26/32

F/R suspension(mm)

1410/1790

Front tread(mm)

1995

Rear tread(mm)

1800/1800

Number of the tires

10

Tire type

12.00R20

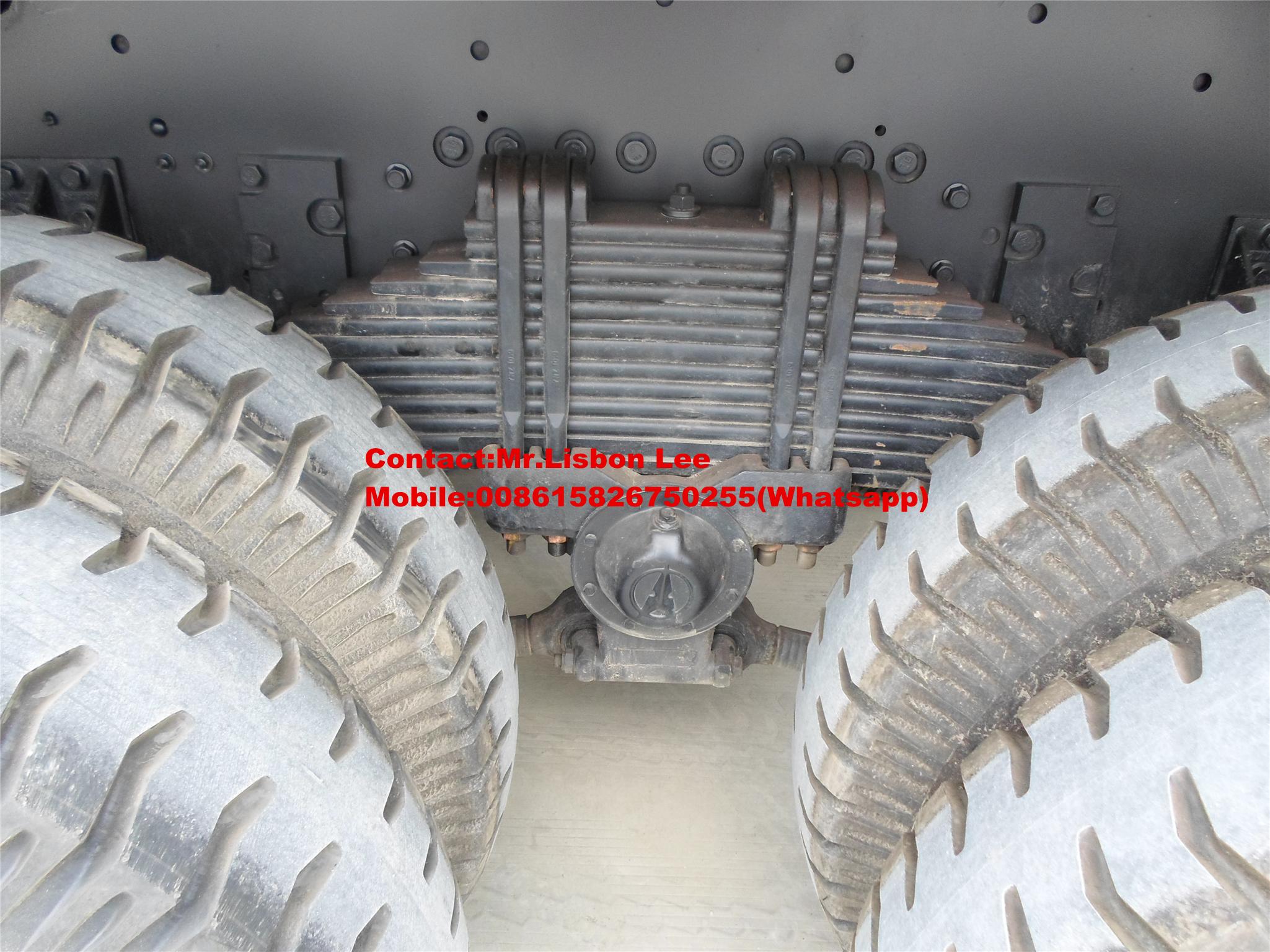

Number of the springs

10/13

Axle load(KG)

7000/18000(Tandem)

Cabin passengers

2

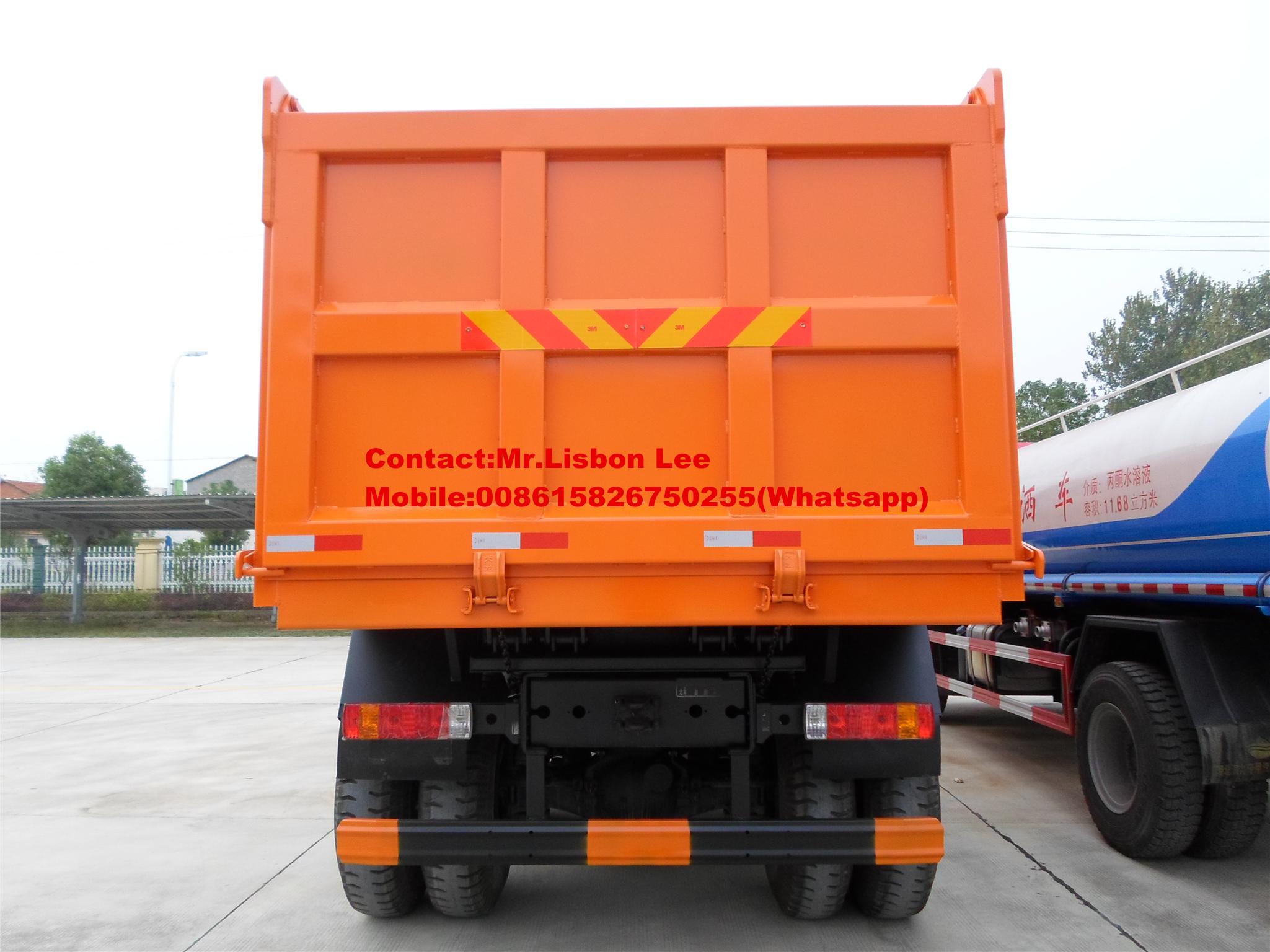

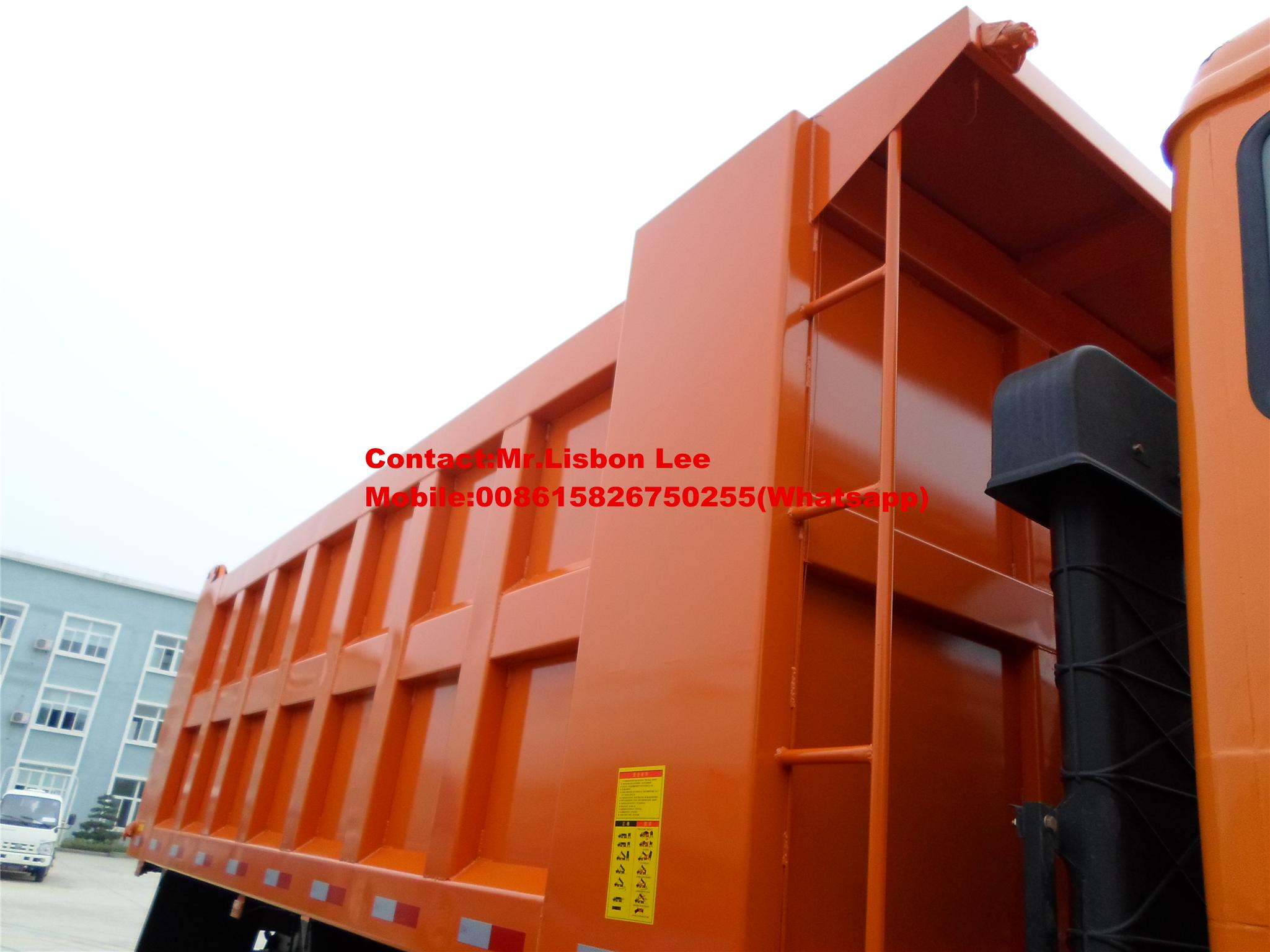

Dump box

Material

WISCO carbon steel

Thickness

Side 6mm,bottom 8mm

Lifting system

Front lifting
